Disassembly of DP-8800Plus
4-2
No. Part No. Name No. Part No. Name
10
2102-21-17024 Transducer
Holder C
20
2131-30-71777 Power Socket
Plate (for China)
2102-21-17026 Transducer
Holder D
2131-30-71776 Power Socket
Plate (Abroad)
21 2106-20-37162 Left Cover

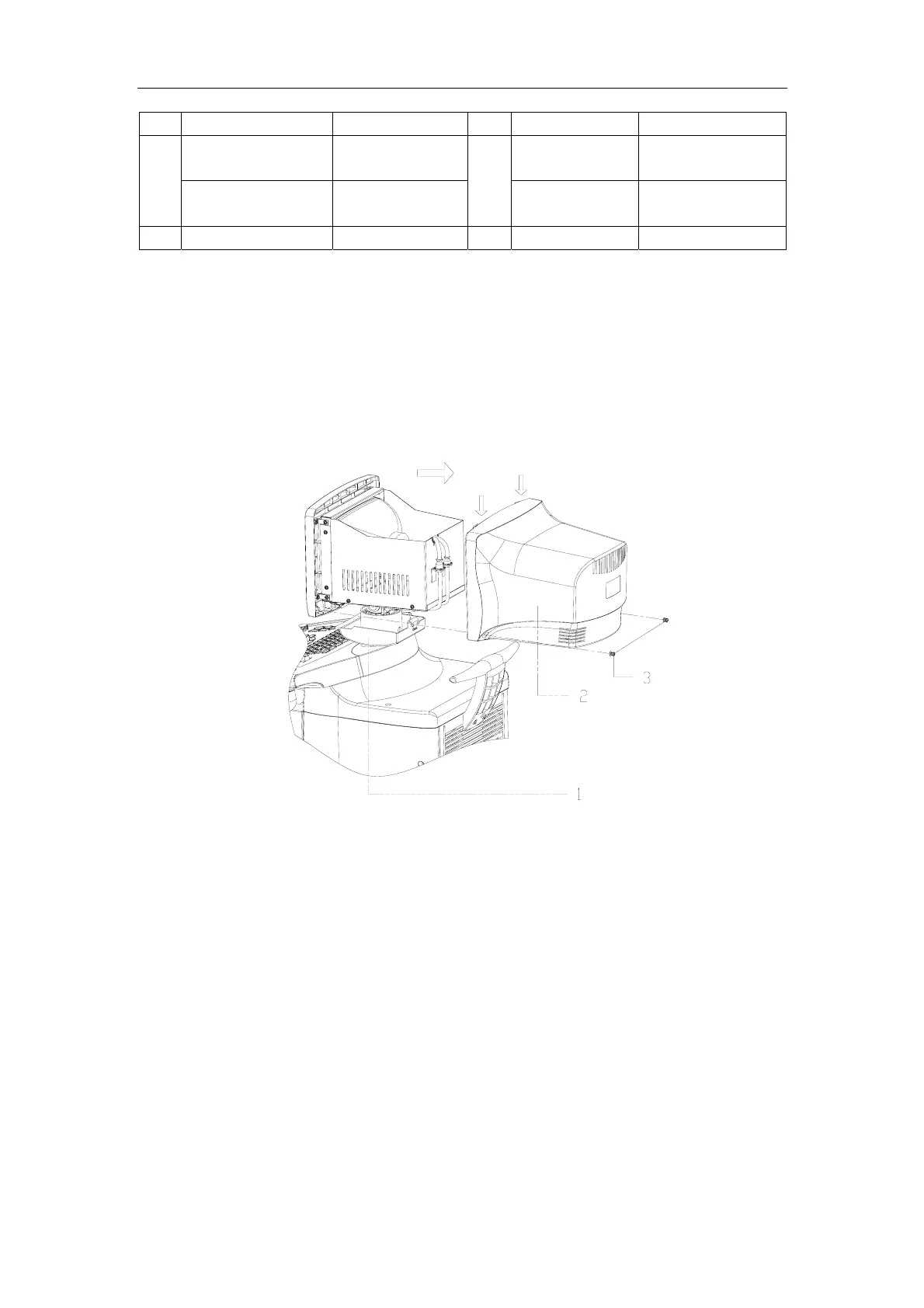

4.2. Disassembly of Monitor
1. Release the neck cover and let it stay around the neck.
2. Remove the two M4×8 screws on the bottom of the monitor.
3. Hold the sides of the monitor with two thumbs pressing the two clips and pull it
backwards.
1 – Neck Cover 2 - Monitor 3 – Power Cord and Data Line
4. Disconnect the power cord and data line.
5. Remove the screw on the rear of the neck. Raise the monitor to an appropriate
height and pull out the cables from the neck.
To Next Page
