16 Probes and Biopsy

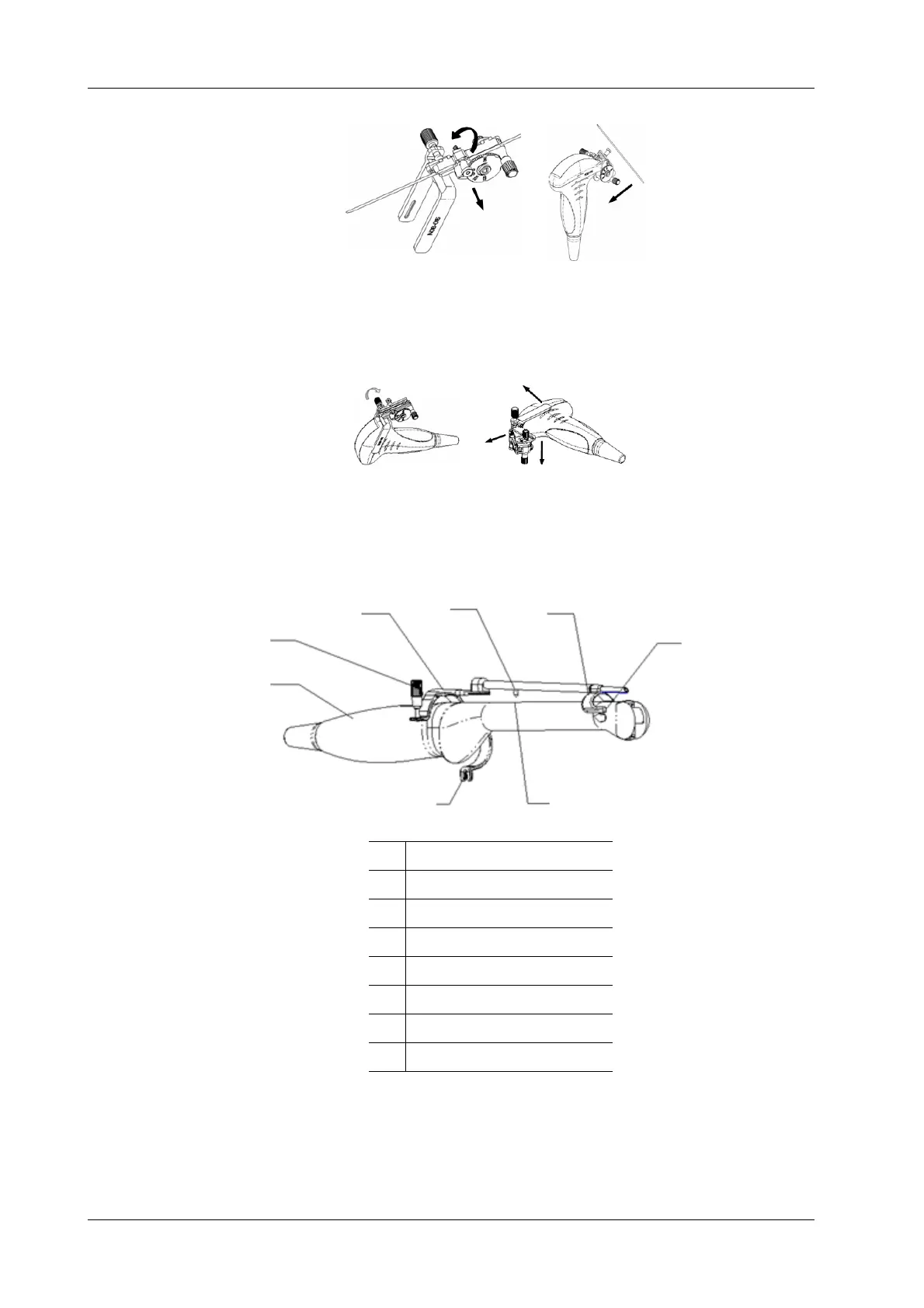

a. Pull the lock pin and open up the V-shaped cover to expose the needle.
b. Separate the bracket and the probe from the needle.
5. Remove the needle-guided bracket:
a. Screw the pinch nut to release the needle-guided bracket.
b. Separate the bracket and the probe.
NGB-025 Metal-needle undetachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
1Pinch nut
2 Intra-cavity probe
3 Lower clamp
4 Location hole
5Front slot
6 Front clamp
7 Location clamp
8 Upper clamp
1
2
34
5
678
