2 System Overview
Operator’s Manual 2 - 11

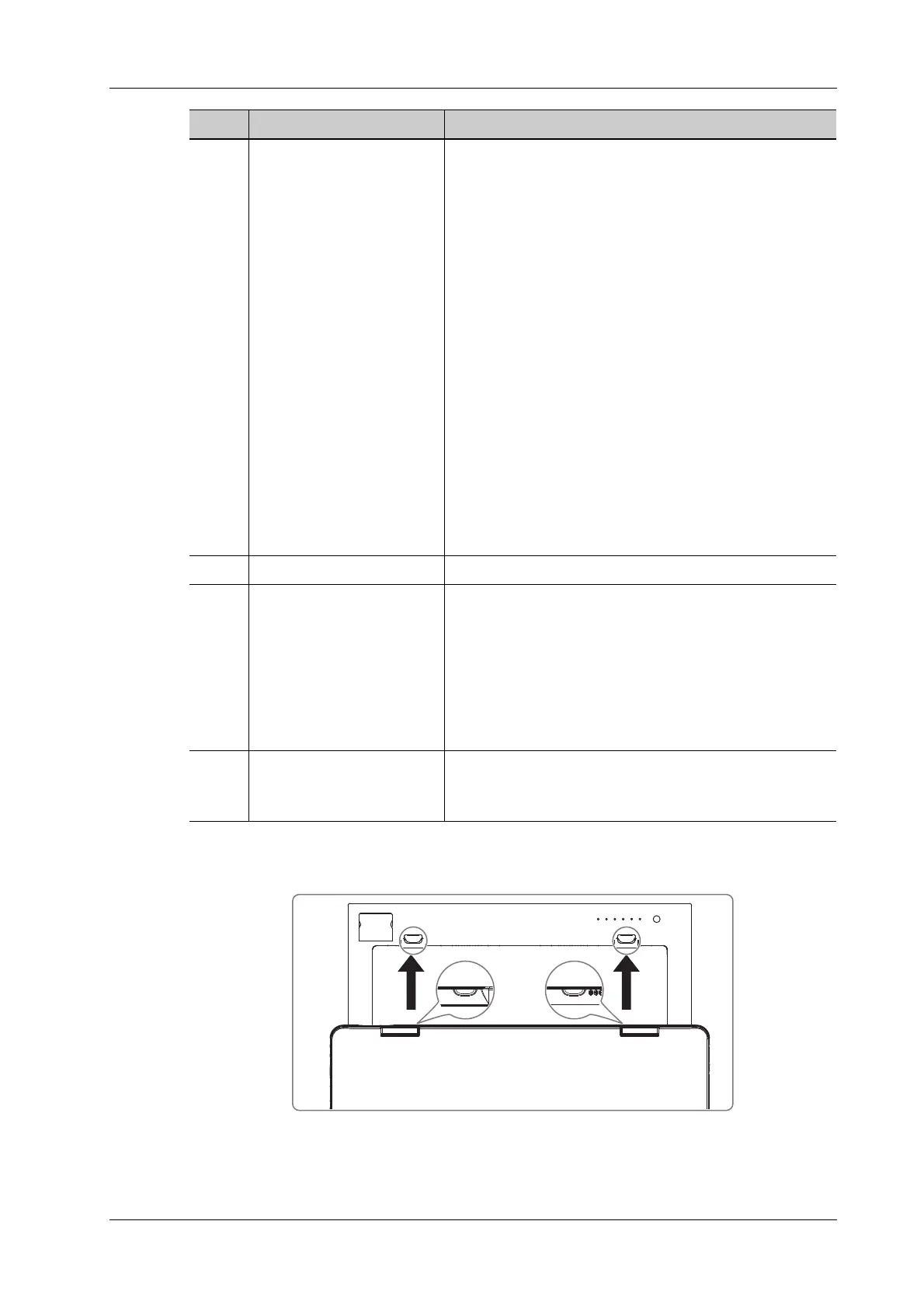

2.8.2 Installing the U-Bank
1. Place U-Bank to a flat and solid platform.
2. Align the grooves of the system with the tabs of U-Bank.
5. Baterry status indicator Indicates the charge/discharge status of the U-Bank.
When the battery is charging:
Not fully charged: the indicator lights in orange.
Fully charged: the indicator lights in green.
When the battery is discharging:
The remaining capacity 20%: the indicator lights in
green.
The remaining capacity < 20%: the indicator blinks in
orange.
The remaining capacity 5%: the indicator blinks in
orange quickly.
NOTE:
When the U-Bank is charging or when you are pressing
the power button, the indicator blinks in orange for 5s,
and other indicators remain off. It indicates that the U-
Bank may have malfunction. Please stop using the U-
Bank and contact the Mindray service engineers or
your sales representative.
6. Power button Used for checking the U-Bank power status.
7. Detach levers Used for detaching the U-Bank from the system.
One is located at front side, and the other is located at the
bottom.
NOTE:
Press the two levers at the same time to detach the U-
Bank from the system. When the U-Bank is placed on a
flat platform, just use the front lever to detach.
8. Lock/Release tabs Used for fixing the U-Bank to the system.
Release the U-Bank from the system by using the detach
lever(s).
No. Name Description
