A - 2 Operator’s Manual
A Barcode Reader
A.1.1 Setting Up the Reader (Take LS2208 as an example)
Perform the following procedure:
1. Plug the interface cable modular connector into the cable interface port on the bottom of the
reader handle, and ensure the connector is properly secured.
2. Connect the other end of the interface cable to the host.
A.1.2 Setting
The reader has factory settings; please refer to A.4 for details.
The reader supports some user-defined functions as introduced below.

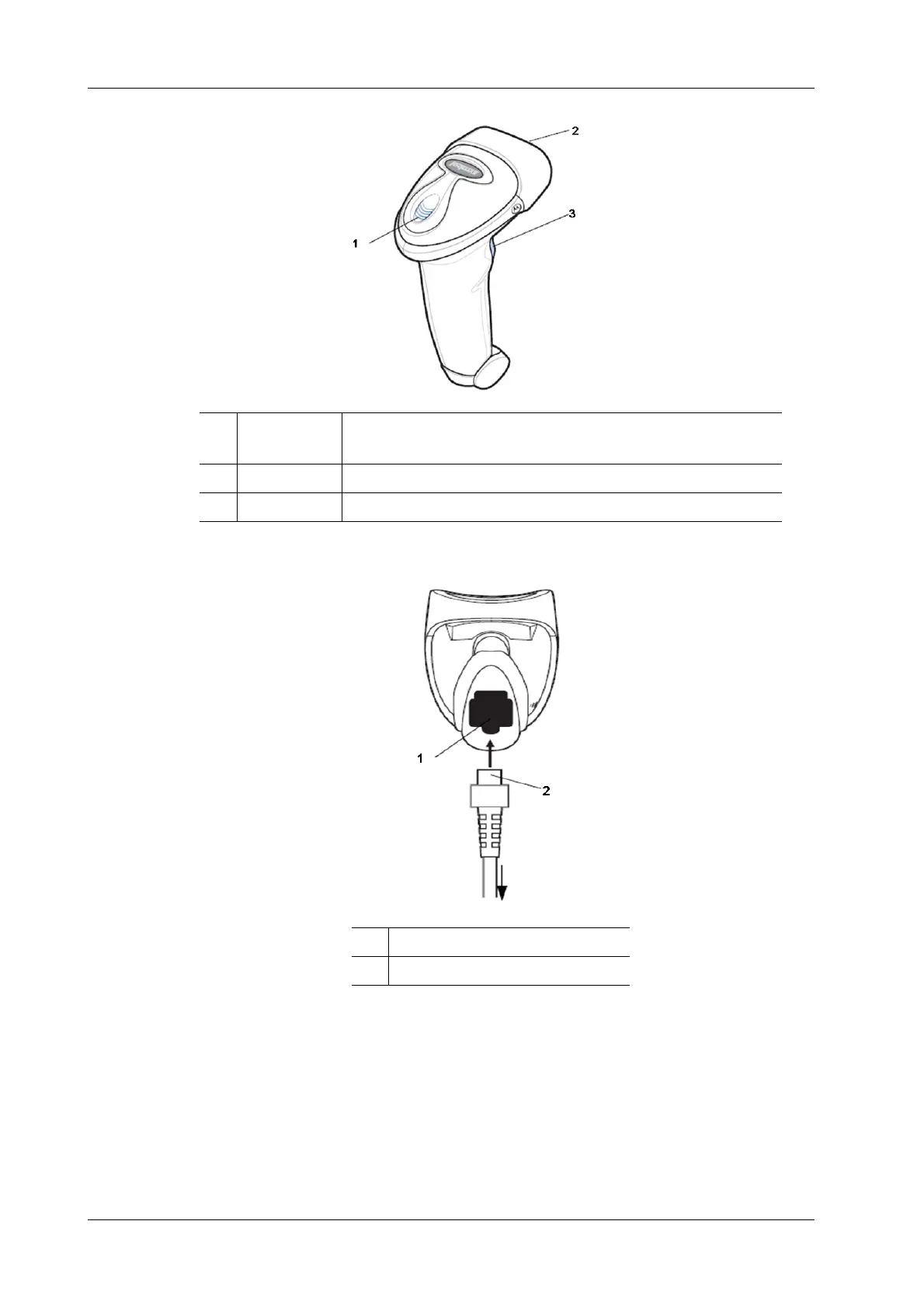

1 LED • Green: A barcode was successfully decoded.
• Red: A data transmission error or reader malfunction occurred.
2 Scan window Scan the barcode.
3 Trigger Press to decode.
1 Cable interface port
2 Interface cable modular connector
