Mindray MX8 User Manual

16 - 32 Operator’s Manual
16 Probes and Biopsy
NGB-045 Metal-needle undetachable needle-guided bracket

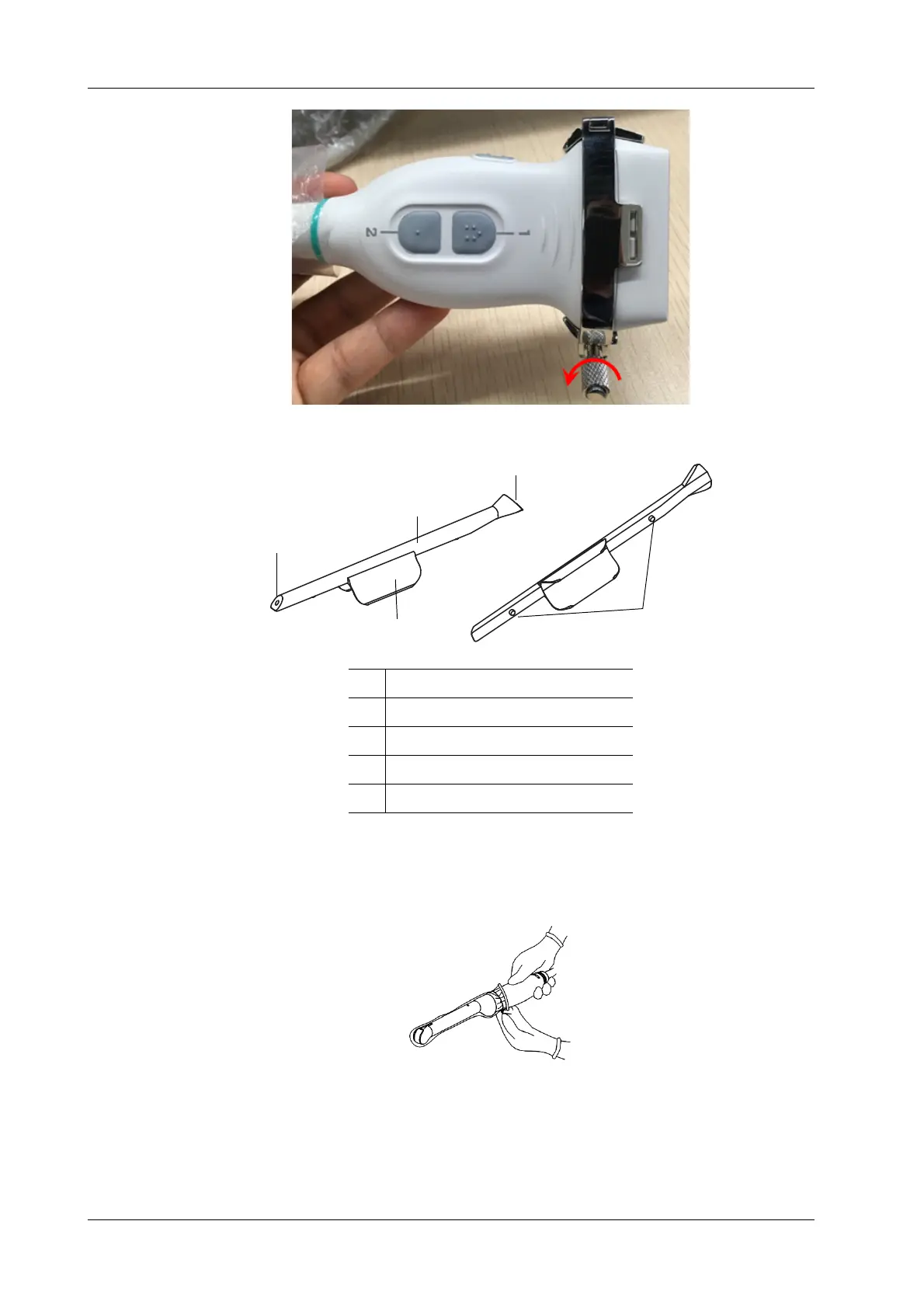

Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Align the needle-guided bracket with the probe to align the locating bulges on the needle
guide with the locating grooves on the probe, then turn the retaining clamp to the correct
position.
1 Needle exit
2 Needle guide
3 Needle entry
4 Retaining clamp
5 Locating bulges
5
1
3
2
4
