5-
50
Image Optimiz
ation
Syn
c

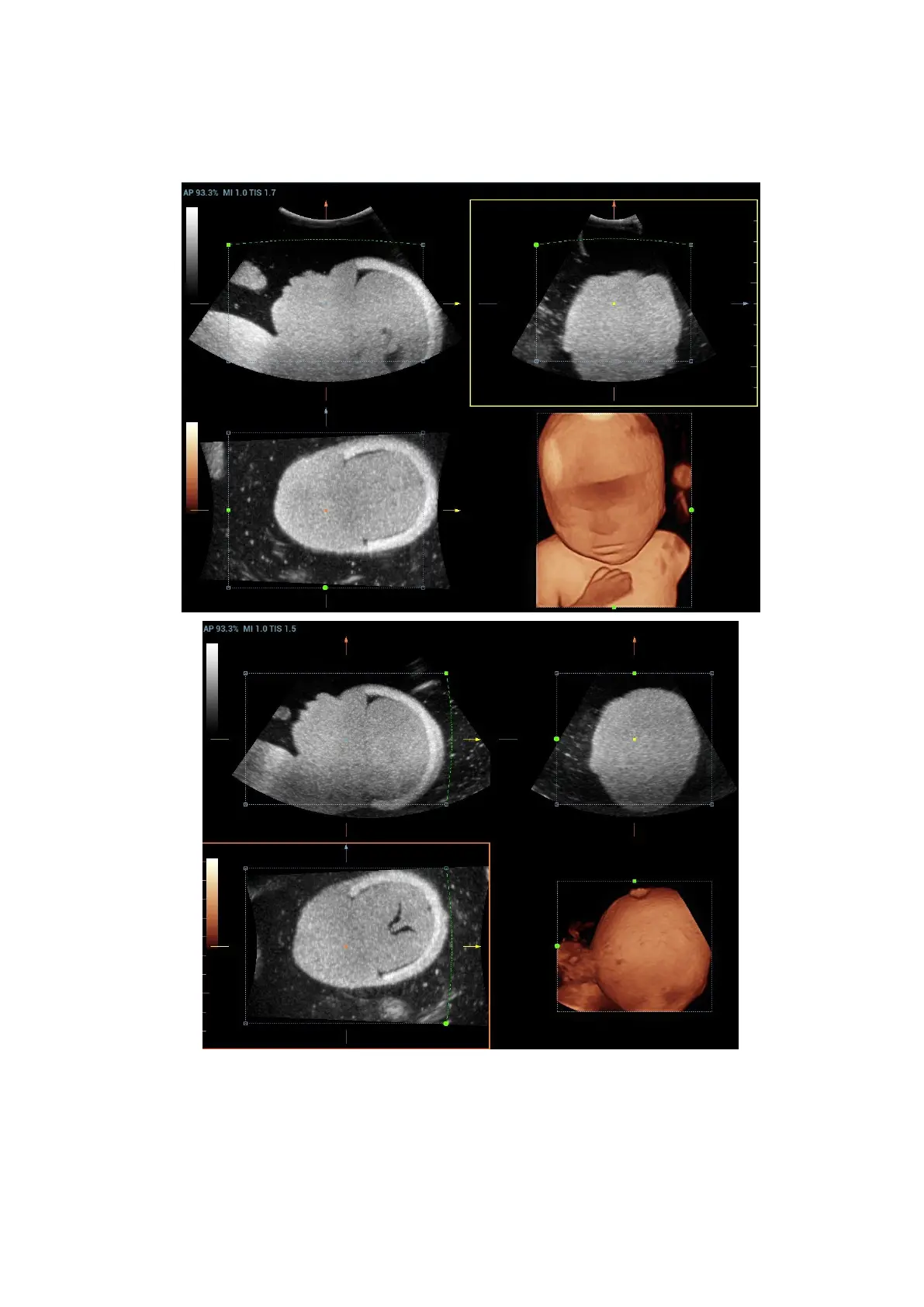

This function is
to switch the direction of
the image to the direc
tion that is perpendicul
ar to the current
active plane, s
o as to get a better observat
ion.
Comments and Comments
Function:
Add comments
and comments
on MPR and 3D image.
Specific operation:
The operations
are the same with these i
n B mode.
123
125
Table of Contents
Table of Contents
3
Intellectual Property Statement
7
Responsibility on the Manufacturer Party
7
Warranty
8
Important Information
9
About this Manual
9
Notation Conventions
9
Operator's Manuals
10
Hardcopy Manuals
10
Software Interfaces in this Manual
10
Conventions
11
Notification of Adverse Events
11
Product Differences
11
Safety Precautions
13
Safety Classification
13
Meaning of Signal Words
14
Meaning of Safety Symbols
14
Safety Precautions
15
Latex Alert
21
Warning Labels
21
System Overview
23
Intended Use
23
Contraindication
23
Product Specifications
23
System Configuration
24
Introduction of each Unit
30
Back I/O Panel
33
Power Supply Panel
34
Front I/O Panel
35
Control Panel
36
Symbols
40
System Preparation
43
Moving/Position the System
43
Connecting Power Cord & Protective Grounding
44
Monitor Adjustment
47
Control Panel Position Adjustment
50
Connecting/Disconnecting a Probe
50
Connecting Peripheral Devices
53
Basic Screen & Operation
57
Exam Preparation
63
Patient Information
63
Select Exam Mode and Probe
71
Selecting Imaging Mode
72
Activate& Continue an Exam
72
Pause & Continue an Exam
73
Image Optimization
75
Imaging Mode
75
B-Mode Image Optimizing
78
M Mode Image Optimization
85
Color Mode Image Optimization
87
Power Mode Image Optimization
92
Flow
94
PW/CW Mode Optimization
97
Color M Mode (CM)
103
Free Xros M Mode
104
Tdi
106
Iscape
155
Contrast Imaging
158
Elastography
165
Stress Echo
176
Tissue Tracking Quantitative Analysis
184
Fusion Imaging
190
RIMT (Real-Time Intima-Media Thickness)
216
R-Vqs
217
Smart Pelvic Floor
219
Smart Fetal HR (Heart Rate)
221
Smart VTI
221
Smart IVC
222
Smart B-Line
224
Display & Cine Review
227
Splitting Display
227
Image Magnification
227
Freeze/Unfreeze the Image
228
Cine Review
229
Image Compare
231
Cine Saving
233
Setting Cine Length
233
Physiological Unit Signal
235
Ecg
236
Respiratory Wave
237
Measurement
241
Basic Operations
241
General Measurements
242
Application Measurements
244
Measurement Accuracy
245
Comments and Body Mark
247
Comments
247
Voice Comments
251
Body Mark
252
Patient Data Management
255
Enter Patient Information
255
Image File Management
255
Report Management
263
Patient Data Management (Istation)
264
Istorage
268
Print
269
Back up Files Using the DVD Drive
270
Patient Task Management
270
Administration
271
Q-Path
279
V-Access
280
Dicom/Hl7
281
DICOM Preset
281
DICOM Verifying
296
DICOM Services
296
DICOM Media Storage (DICOMDIR Review)
301
Setup
303
System Preset
303
Exam Mode Preset
311
Measurement Preset
312
Comment Preset
312
Iworks Preset
313
Stress Echo Preset
313
DICOM/HL7 Preset
313
Network Preset
314
Print Preset
317
Maintenance
318
Security
319
System Information
320
Probes and Biopsy
321
Probes
321
Biopsy Guide
339
Needle Navigation Guiding
367
Middle Line
378
DVR Recording
381
Send Image
381
DVR Video Replay
382
Acoustic Output
383
Concerns with Bioeffects
383
Prudent Use Statement
383
ALARA Principle (as Low as Reasonably Achievable)
383
MI/TI Explanation
384
Acoustic Power Setting
385
Acoustic Power Control
385
Acoustic Output
386
Measurement Uncertainty
387
References for Acoustic Power and Safety
388
EMC Guidance and Manufacturer's Declaration
389
System Maintenance
395
Daily Maintenance
395
Common Inspections
400
System Function Inspection
401
Inspection of Peripherals and Optional Functions
402
Checking Mechanical Safety
402
Appendix A Barcode Reader
407
Appendix B Iworks (Auto Workflow Protocol
423
Appendix C Wireless LAN
431
Appendix D Ultrasound Gel Heater
435
Appendix E Electrical Safety Inspection
439
Appendix F Battery
443
Appendix G List of Vocal Commands
445
Appendix H Operating Environment
449
Appendix I Indications for Use
451
