7-8 Passport 8/12 Service Manual
7.3.10 Removing the Interface Board (Passport 8)

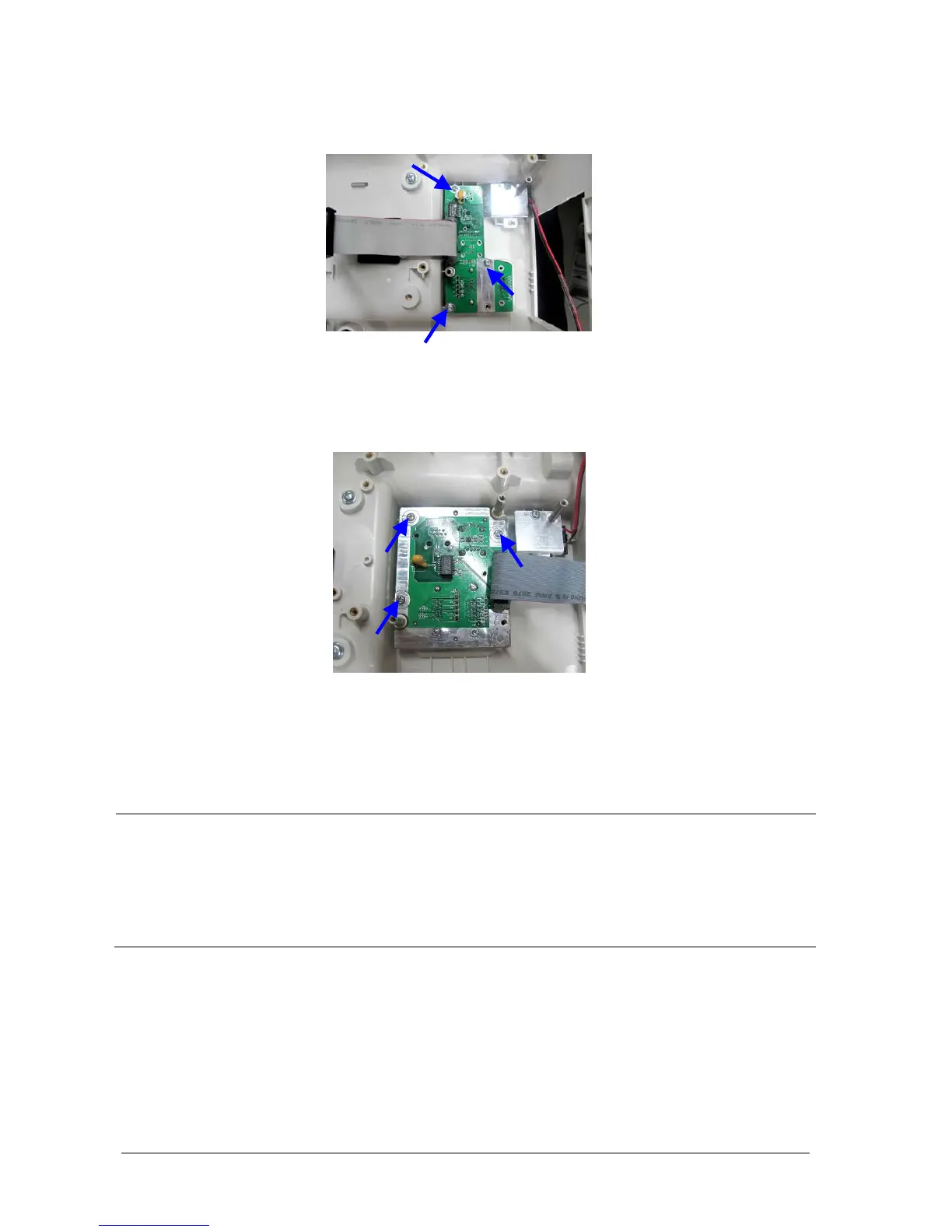

Unscrew the three M3×6 screws inside the monitor and remove the interface board.
7.3.11 Removing the Interface Board (Passport 12)
Unscrew the three M3×6 screws inside the monitor and remove the interface board.
7.4 Disassembling the Front Housing Assembly
NOTE
 To disassemble the equipment, place the equipment on a work surface free from foreign material, avoiding
damaging the antiglare screen, touchscreen and the knob.
 Remember to install the screen support pad properly during reassembly.
 Operations relating to optional parts may not apply to your equipment.
 Position the touchscreen properly with the flexible cable facing down.
