Passport 8/12 Service Manual 8-17
8.3.4 Battery Compartment Assembly

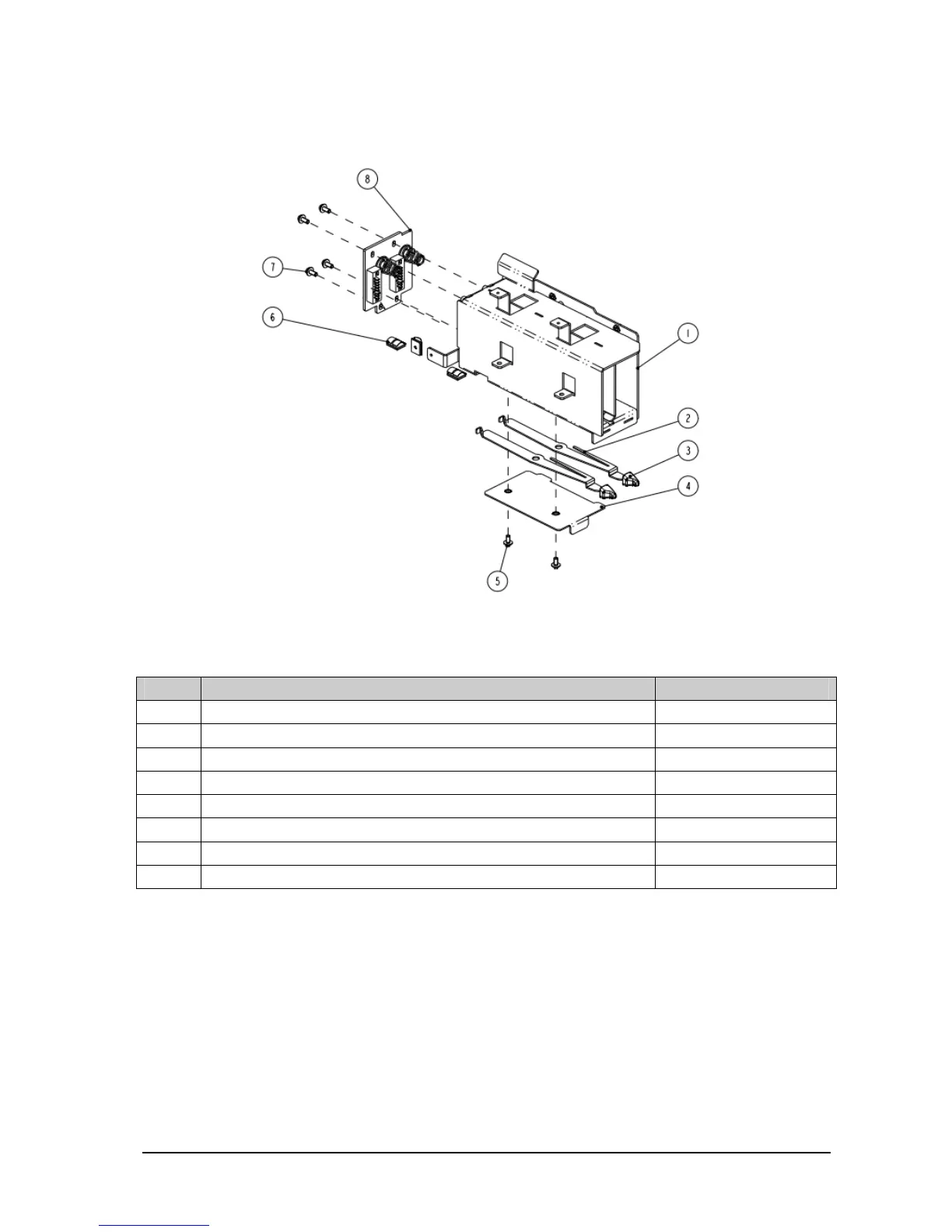

8.3.4.1 Exploded View
8.3.4.2 Parts List
SN Description FRU part number
1 Battery compartment (Passport 12) /
2 Battery latch (Passport 12) /
3 Knob, Battery latch 2 0380-00-0593
4 Battery spring (Passport 12) /
5 Screw, Pan head with washer, Phillips M3×6 /
6 Spring, EMI /
7 M4×8 combined screw /
8 Battery connector board assembly (Passport 12) 115-010841-00
8.3.5 Multi-parameter Assembly
For the exploded view and parts list of the multi-parameter assembly, refer to section 8.2.4 Multi-parameter
Assembly.
8.3.6 NIBP Pump and Valve Kit
For the exploded view and parts list of the NIBP pump and valve kit, refer to section 8.2.6 NIBP Pump and Valve Kit.
