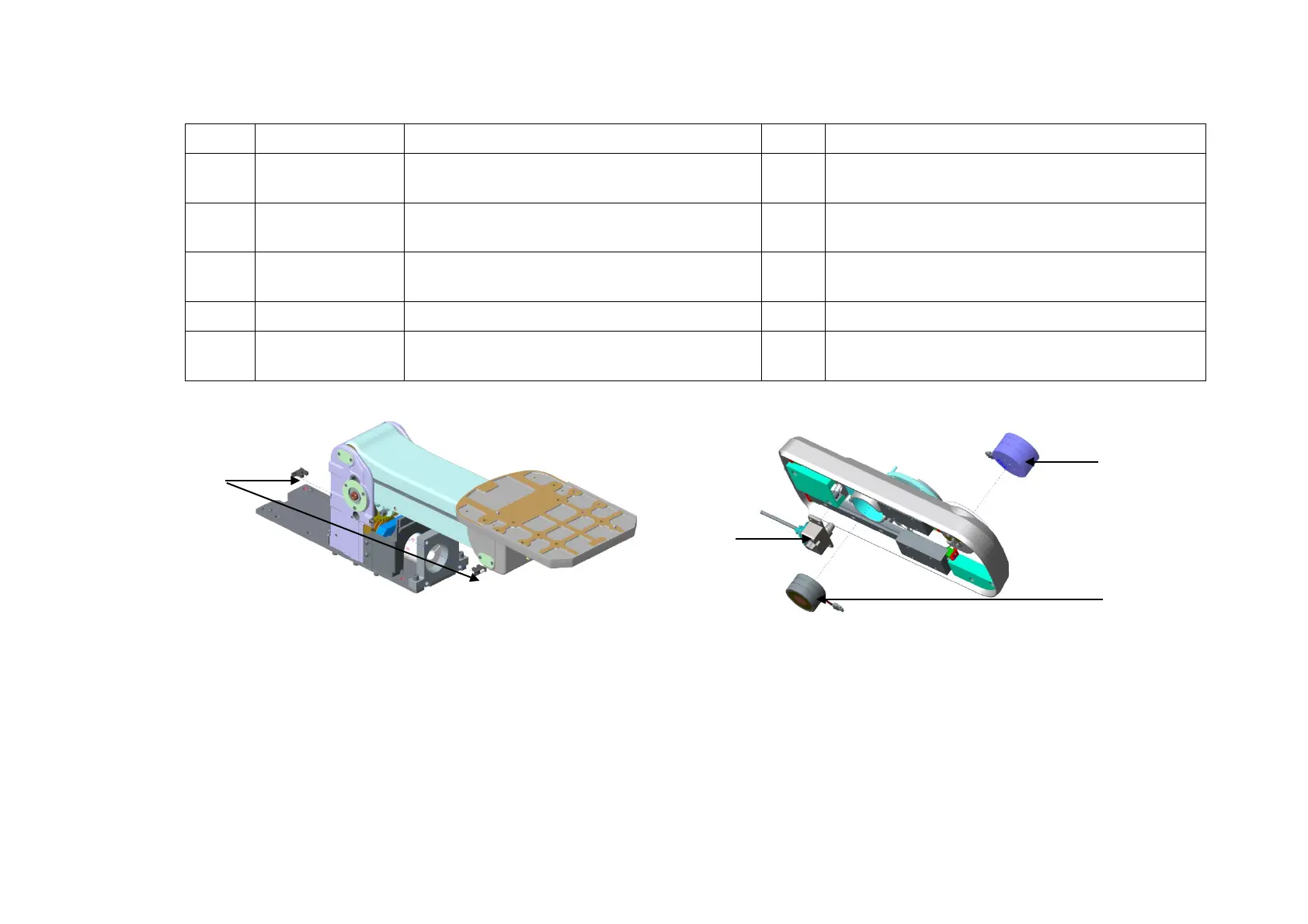

Field Replaceable Unit 8-17

No.

Order Number

Part Name

Qty.

Remark

D1 115-033586-00

control panel moving mechanism

assembly(FRU)

D2 115-033587-00 Lift control PCBA assembly(FRU) 1

Including power cord for motor drive and control

cable

D3 115-033583-00 Motor-driven lift mechanical assembly(FRU) 1

Not including motor and Lift control PCBA

assembly

024-000664-00

Brushless DC motor 24V 50W SRR30

Motor of electric lifting mechanism

D5 115-035514-00

Motor-driven lift mechanical assembly(W/O

shift/FRU)

D3-1

D1-1

D1-2

D1-3
