Mindray Resona 7 - Speaker Cover Assembly

9-22 Structure and Assembly/Disassembly
9.3.9 Speaker Cover Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.6 Control Panel Assembly and 9.3.8 Touch Screen Assembly for details.
2. Unscrew 6 M4 X 12 cross panhead screws from the base of the control panel with
cross-headed screwdriver (M3, M4) to remove speaker cover assembly.

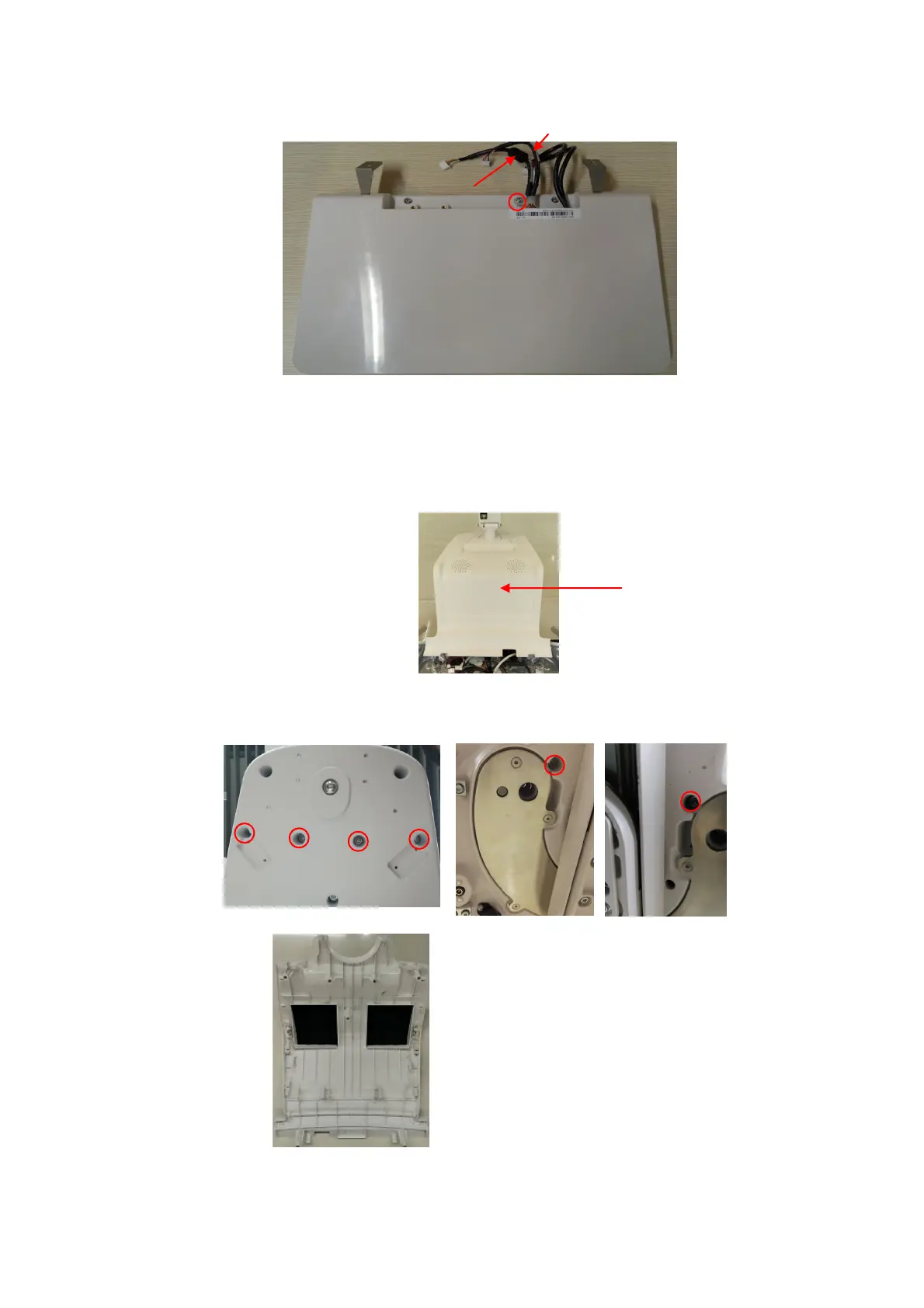

Speaker cover assembly
Speaker cover assembly
P
ower supply
cable
USB signal cable
