Mindray Resona 7 - Page 149

To Next Page

To Previous Page

Field Replaceable Unit 8-21

No.

Order Number

Part Name

Qty.

Remark

E16 115-065498-00

IO Interface Module（include WIFI/FRU)

1 include wifi module and IO board

E17

115-033602-00

HDD assembly(FRU)

Including wires and assembly board

E18

115-033613-00

DVD assembly(FRU)

Including wires and assembly board

E19

115-033593-00

PHV box assembly(FRU)

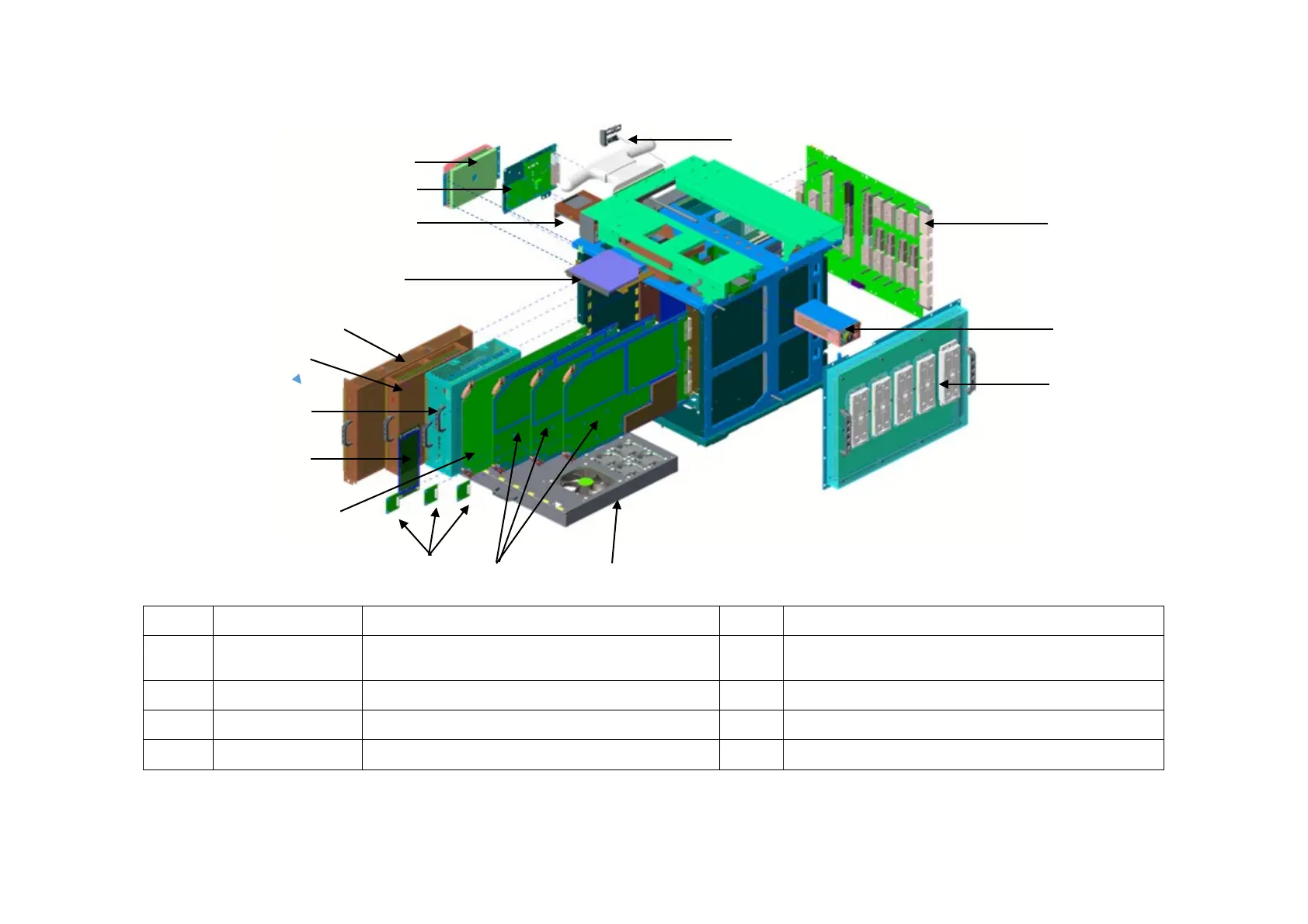

E16

E17

E19

E23

E24

E25

E27

E28

E29

E26

E20

E18

E21

E22

E30

E31
