Structure and Assembly/Disassembly 9-81

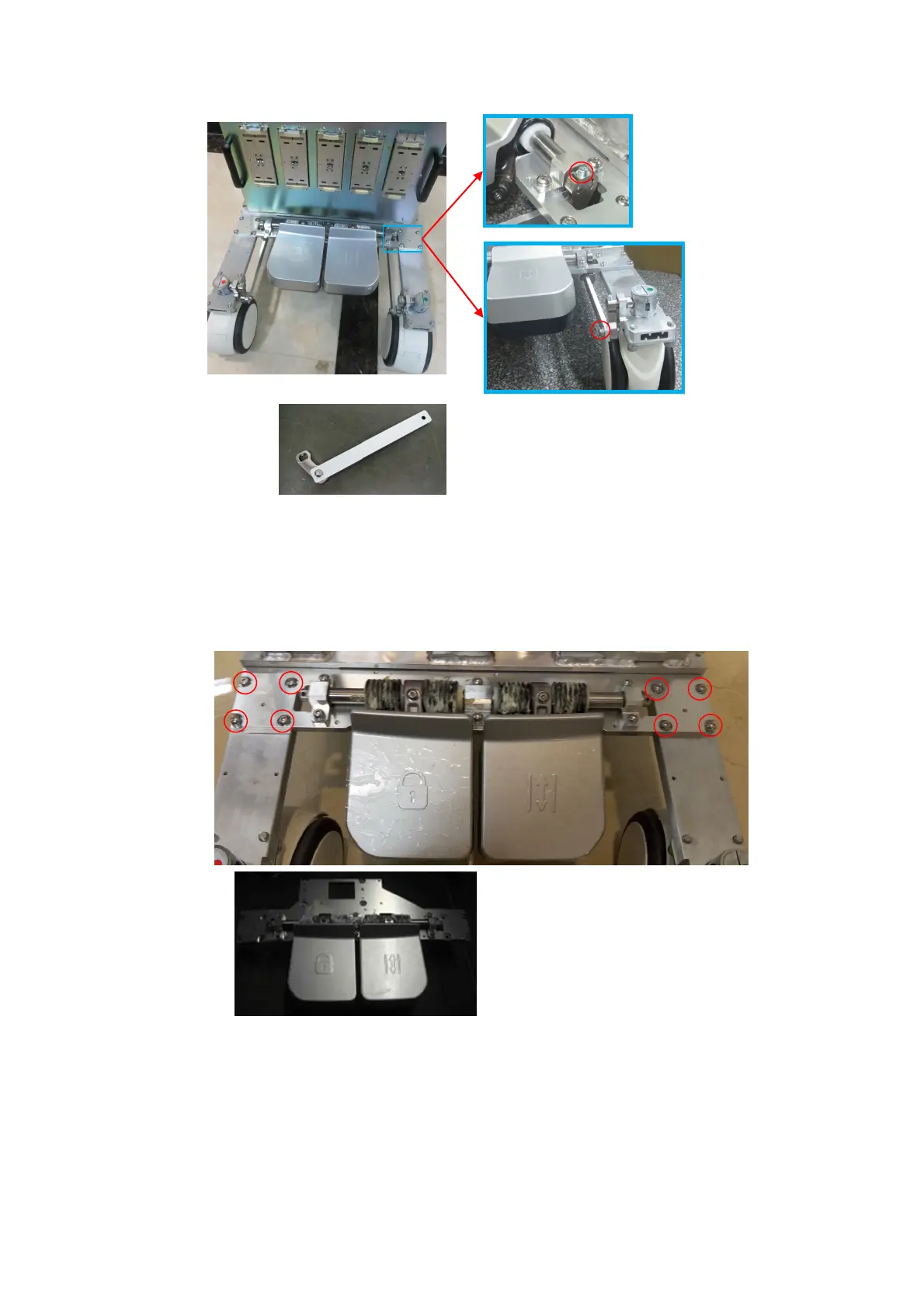

9.3.38.4 Central Brake Pedal Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex spanner (M5).
1. See 9.3.16, 9.3.17, 9.3.18, 9.3.19, 9.3.23 and 9.3.38.3 for details.
2. Unscrew 8 M6 X 16 stainless steel round inner head screws by M6 inner hexagon spanner to
remove the central brake pedal assembly (FRU).
9.3.38.5 Full Lock Caster/Straight Line Caster
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex spanner (M5).
1. See 9.3.16, 9.3.17, 9.3.18, 9.3.19, 9.3.23, 9.3.38.2 and 9.3.38.3 for details.
2. Unscrew 3 M4 X 12 cross panhead screws (front left, back left, front right) with the screwdriver
(M3, M4) to remove the left rod and the right rod.
Central brake pedal assembly (FRU)
cross panhead
M6X16stainless steel round inner
head screw
To Next Page
