11-14 System Diagnosis and Support

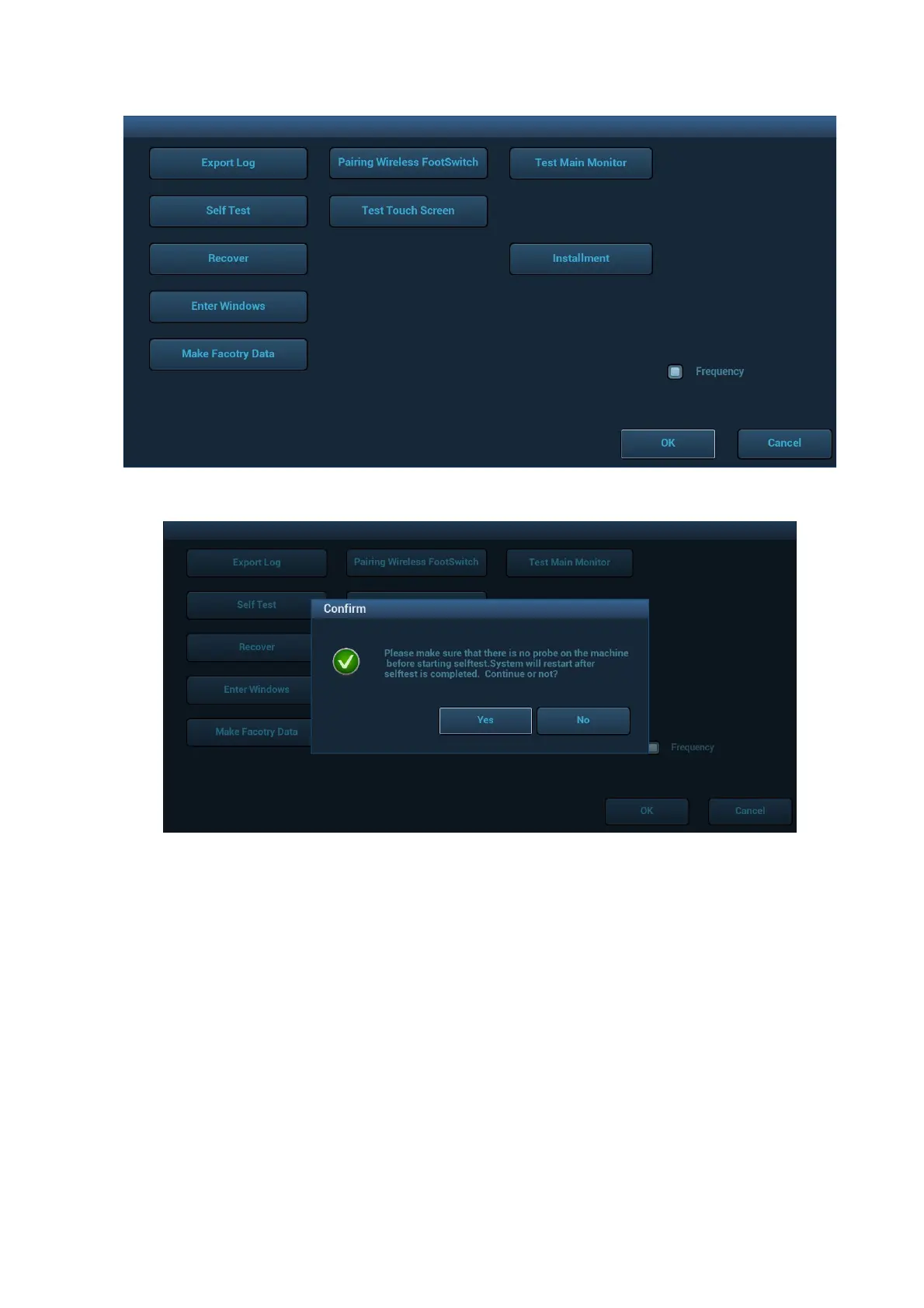

3. The dialog box appears to remind the restart of the system. Then, click [ Yes ] .

4. The booting screen of system self test appears.
