13.2.3 Needle-Guided Bracket Inspection and Installation
13.2.3.1 Inspection of the Needle-Guided Bracket
Be sure to perform inspections before and after using the needle-guided bracket. If an abnormality
is found on the needle-guided bracket, immediately stop using it and contact the MINDRAY
Customer Service Department or a sales representative.
1. Sterilize the needle-guided bracket before and after use.
2. Confirm that the needle-guided bracket is free from damage, deformation, stripping,
malfunction, loose or missing parts.
3. Confirm that the needle-guided bracket is securely mounted in the correct position.
13.2.3.2 Installing the Needle-Guided Bracket
NGB-004
1. Put the sterile probe sheath on.

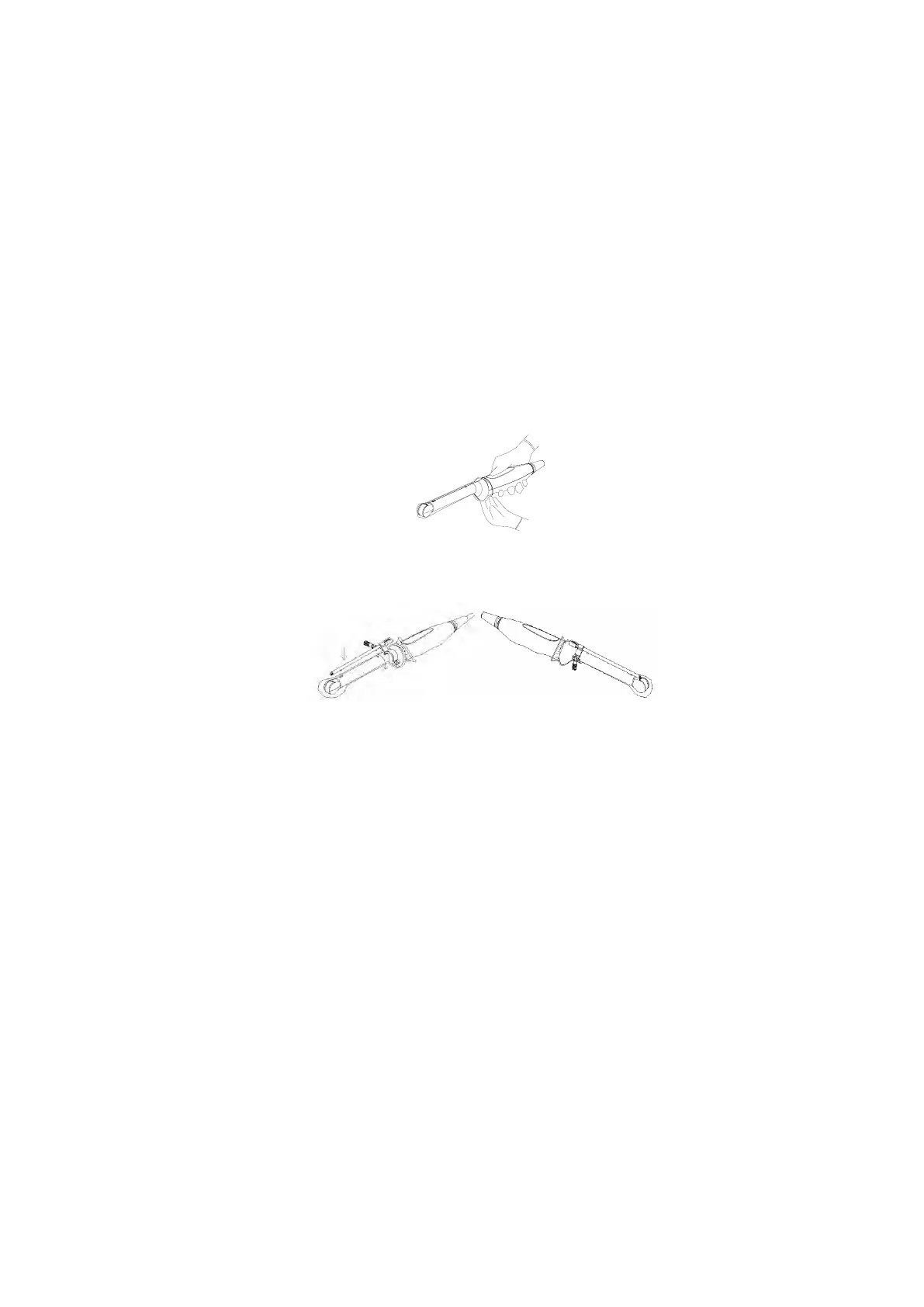

2. Open the retaining clamp, align the needle-guided bracket with the probe to align the locating
bulge on the needle guide with the locating grooves on the probe, then turn the retaining
clamp to align it with the probe (see the figure below).
3. When the retaining clamp is turned to the correct position, the locking nut will lock the retaining
clamp and the needle-guided bracket is then mounted in the correct position.
