F-2 iScanHelper
F.3.1 View Selecting Area
Swipe the menu to select target view.

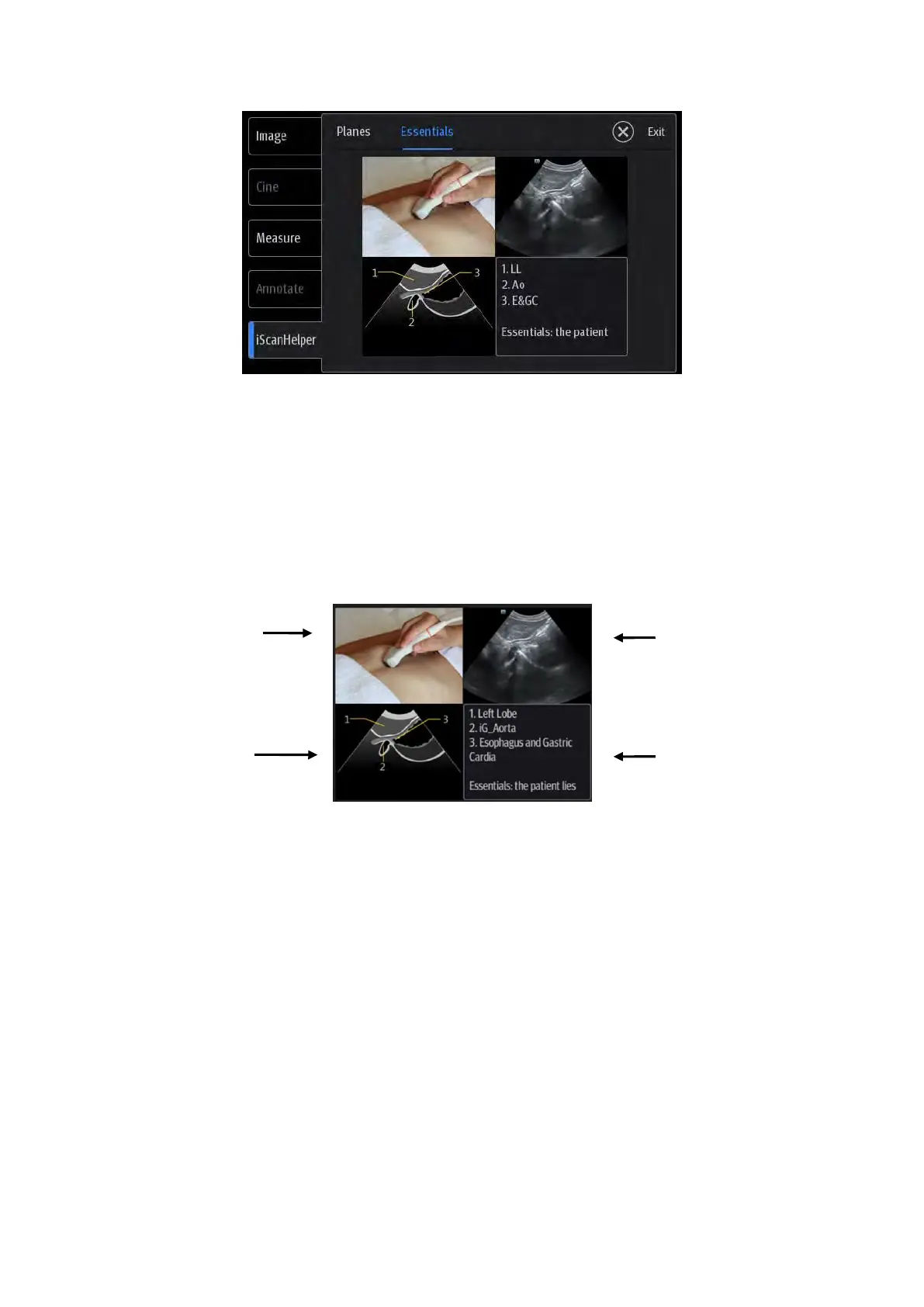

F.3.2 Help Information Area
Ultrasonic image, anatomic graphic, scanning picture and scanning tips are provided in the
“Essentials” menu.
Ultrasonic image
It is used to compare with images scanned by the operator.
Anatomic graphic
Related anatomical tissue information are provided here.
Scanning picture
Ordinary scanning tips can be observed here, including posture, probe mark, probe
swing/sweep techniques.
Scanning tips
You can read tissue related anatomical information and adjacent tissue information here.
F.3.3 Single/quad-window Display
You can zoom in the anatomic graphic, ultrasonic image as well as scanning picture to view
those information more conveniently.
Tap on the anatomic graphic, the ultrasonic image or scanning tips to go to the single window
of each of them. Tap again to return to quad-window display.
