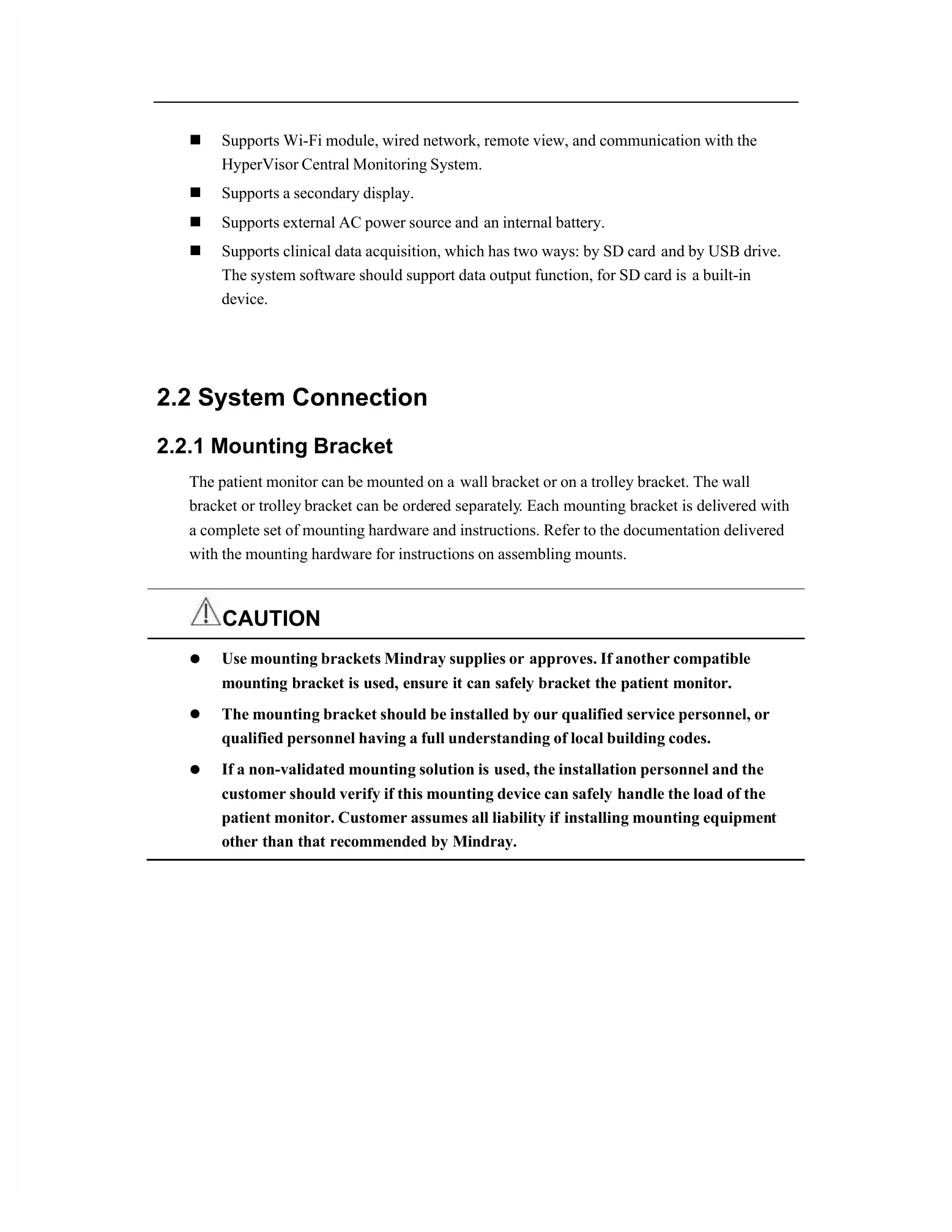

Mindray uMEC10 Service Manual


Supports Wi-Fi module, wired network, remote view, and communication with the
HyperVisor Central Monitoring System.

Supports a secondary display.

Supports external AC power source and
an internal battery.

Supports clinical data acquisition, which has two ways: by SD card
and by USB drive.
The system software should support data output function, for SD card is
a built-in
device.
2.2 System Connection
2.2.1 Mounting Bracket
The patient monitor can be mounted on a
wall bracket or on a trolley bracket. The wall
bracket or trolley
bracket can be orde
red separately
. Each mounting bracket is deli
vered with
a complete set of mounting hardware and instructions. Refer to the documentation delivered
with the mounting hardware for instructions on assembling mounts.
CAUTION

Use mounting brackets Mindray supplies or
approves. If another compatible
mounting bracket is used, ensure it can safely bracket the patient monitor.

The mounting bracket should be installed by our qualified service personnel, or
qualified personnel having a full understanding of local building codes.

If a non-validated mounting solution is
used, the installation personnel and the
customer should verify if this mounting device can safely
handle the load of the
patient monitor. Customer assumes all liability if
installing mounting equipmen
t
other than that recommended by Mindray.

Mindray uMEC10 Specifications

General

Resolution	800 x 600
ECG	3/5-lead ECG
EtCO2	Optional
Battery	Rechargeable lithium-ion
Battery Life	4 hours
Dimensions	110 mm
Alarm	Audible and visual alarms
Power Supply	AC 100-240V, 50/60Hz
Agent	No
O2	No
