6.
Screen
backlight
connector
7.
Screen
display
signal
connector
8.
Balloon
pump
connector
9.
Touchscreen
connector
10.
TEMP
parameter
connector
1
11.
TEMP
parameter
connector
2
12.
SPO2
parameter
connector
13.
ECG
parameter
connector
14.
Wi-Fi
connector
Rear housing assembly
Front housing assembly

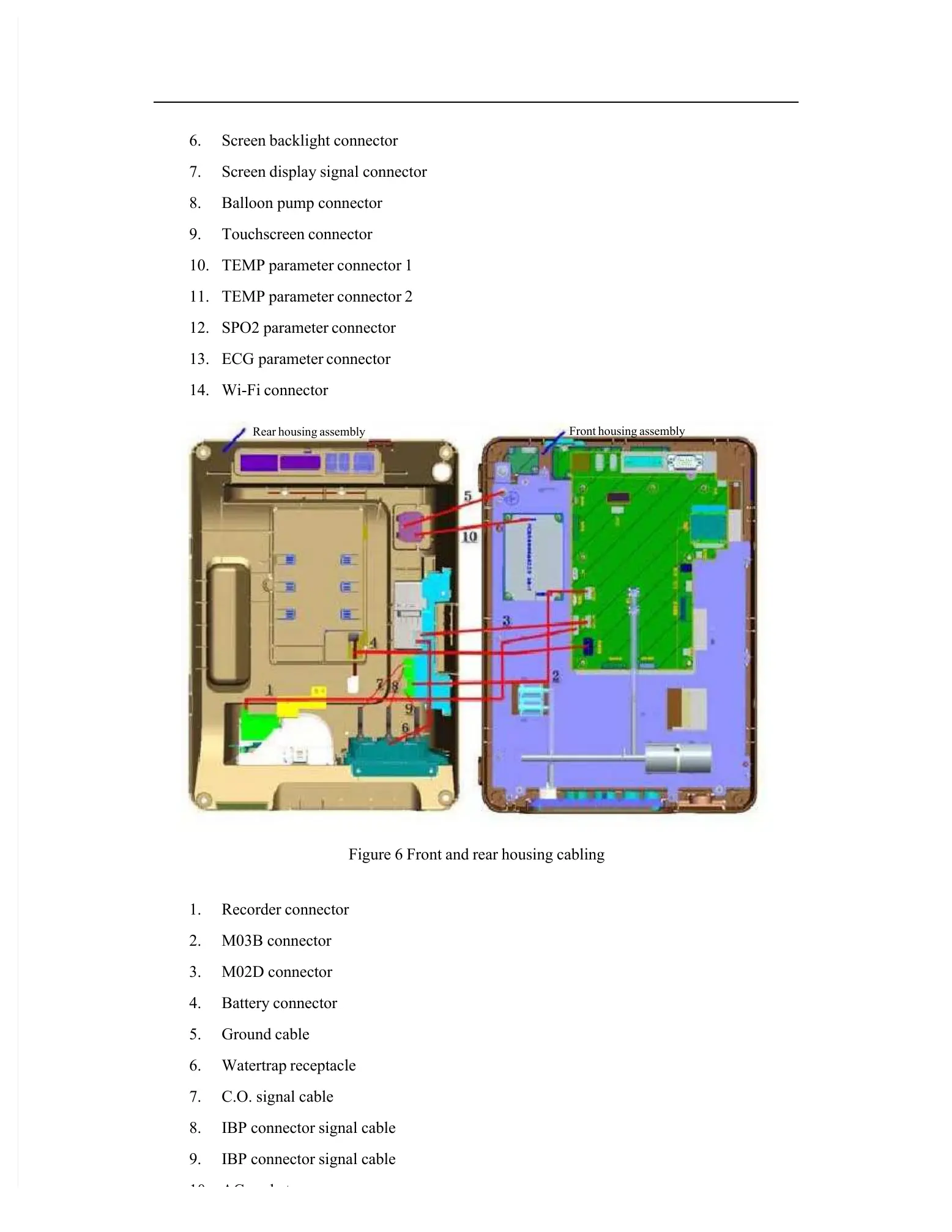

Figure 6 Front and rear housing cabling
1.
Recorder
connector
2.
M03B
connector
3.
M02D
connector
4.
Battery
connector
5.
Ground
cable
6.
Watertrap
receptacle
7.
C.O.
signal
cable
8.
IBP
connector
signal
cable
9.
IBP
connector
signal
cable
10.
AC
socket
