Mindray uMEC12 Service Manual

2.2.2 External Connectors
On the back of the patient monitor
you will find all connectors for peripheral devices.

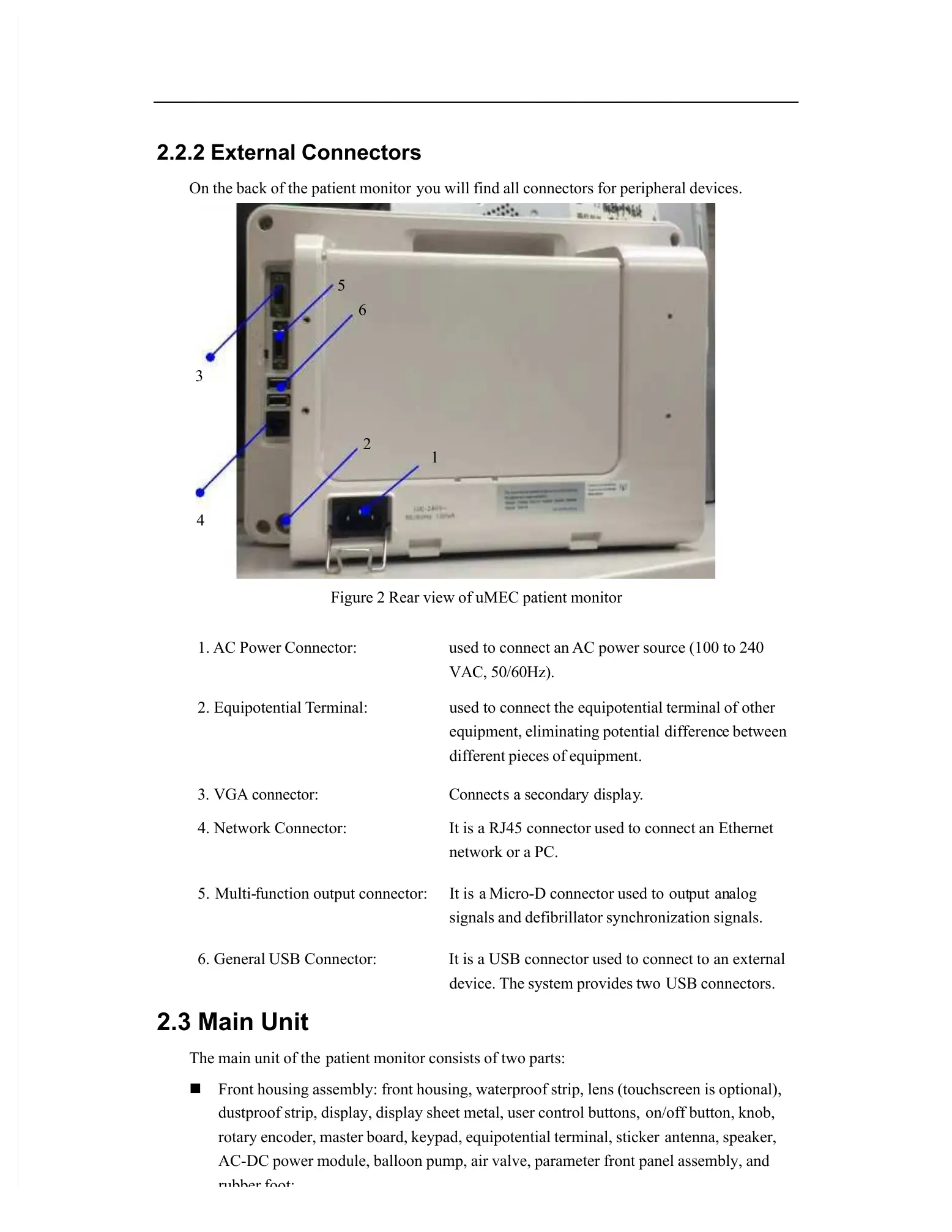

Figure 2 Rear view of uMEC patient monitor
1.
AC
Power
Connector:
used
to
connect
an
AC
power
source
(100
to
240
VAC, 50/60Hz).
2.
Equipotential
T
erminal:
used
to
connect
the
equipotential
terminal
of
other
equipment, eliminating potential
differenc
e between
different pieces of equipment.
3.
VGA
connector:
Connect
s
a
secondary
displa
y
.
4.
Network
Connector:
It
is
a
RJ45
connector
used
to
connect
an
Ethernet
network or a PC.
5. Multi-
function
output
connector:
It
is a
Micro-D
connector
used
to out
put an
alog
signals and defibrillator synchronization signals.
6.
General
USB
Connector:
It
is
a
USB
connector
used
to
connect
to
an
external
device. The system provides two
USB connectors.
2.3 Main Unit
The main unit of the
patient monitor consists of two parts:

Front housing assembly: front housing, waterproof strip, lens (touchscreen is optional),
dustproof strip, display, display sheet metal, user control buttons,
on/off button, knob,
rotary encoder, master board, keypad, equipotential terminal, sticker
antenna, speaker,
AC-DC power module, balloon pump, air valve, parameter front panel assembly, and
rubber foot;
2
1
5
6
3
4

Mindray uMEC12 Specifications

General

Type	Patient Monitor
Display	12.1-inch color TFT
ECG	3-lead
SpO2	Yes
NIBP	Yes
Respiration	Yes
Temperature	Yes
Battery	Rechargeable lithium-ion
Networking	Ethernet
Parameters	ECG, SpO2, NIBP, Respiration, Temperature
Connectivity	Ethernet
Battery Life	Up to 4 hours
Power Supply	100-240 VAC, 50/60 Hz
