Mindray uMEC12 Service Manual

Main board
AC-DC power
module
Display sheet metal
Equipotential
terminal
Speaker
Balloon
pump
Parameter front
panel assem
bly
Sticker antenna
Display
Air valve
Dustproof strip
On/off
button
Lens
Rotary encoder
Button board
Waterproof
strip
User
control
buttons
Knob
Front
housing
Rubber foot

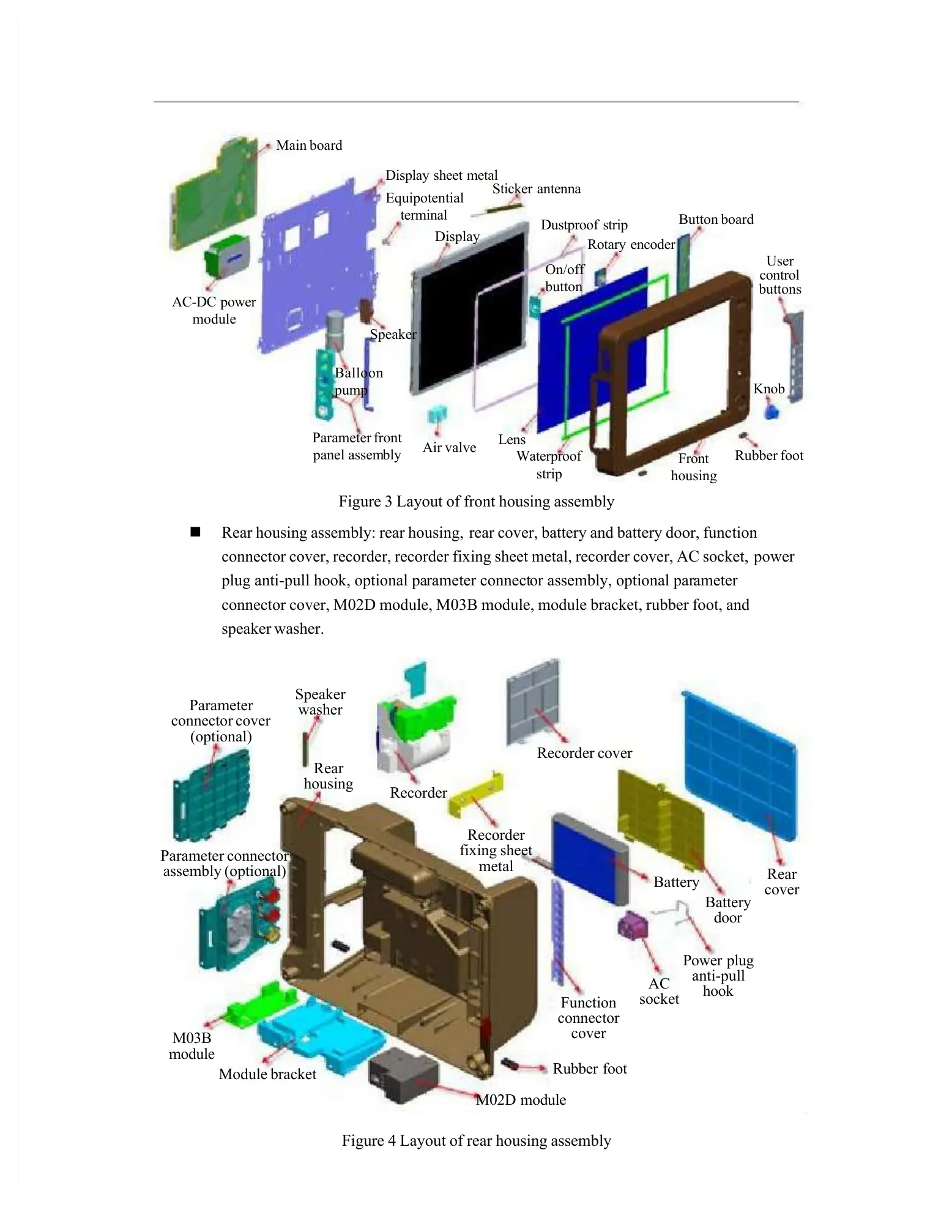

Figure 3 Layout of front housing assembly

Rear housing assembly: rear housing,
rear cover, battery and battery door, function
connector cover, recorder, recorder fixing sheet metal, recorder cover, AC socket,
power
plug anti-pull hook, optional pa
rameter connect
or assembly, optional par
ameter
connector cover, M02D module, M03B module, module bracket, rubber foot, and
speaker washer.
Parameter
connector cover
(optional)
Speaker
washer
Rear
housing
Parameter connector
assembly (optional)
Recorder
Recorder cover
Recorder
fixing sheet
metal
Battery
Rear
cover
Battery
door
Power plug
anti-pull
hook
AC
socket
Function
connector
cover
M03B
module
Module bracket
M02D module
Rubber foot
Figure 4 Layout of rear housing assembly

Mindray uMEC12 Specifications

General

Type	Patient Monitor
Display	12.1-inch color TFT
ECG	3-lead
SpO2	Yes
NIBP	Yes
Respiration	Yes
Temperature	Yes
Battery	Rechargeable lithium-ion
Networking	Ethernet
Parameters	ECG, SpO2, NIBP, Respiration, Temperature
Connectivity	Ethernet
Battery Life	Up to 4 hours
Power Supply	100-240 VAC, 50/60 Hz
