Probes and Biopsy 12-17
4. Adjust the dial scale to the required needle type shift, and then screw the needle
fixing nut to lock the dial scale.(To adjust the dial scale you have to loose the needle
fixing nut first.)
5. Pull the lock pin and close the V-shaped cover to fix the lock pin in the groove of the
needle type adjusting base, so as to install the needle into the guiding hole.

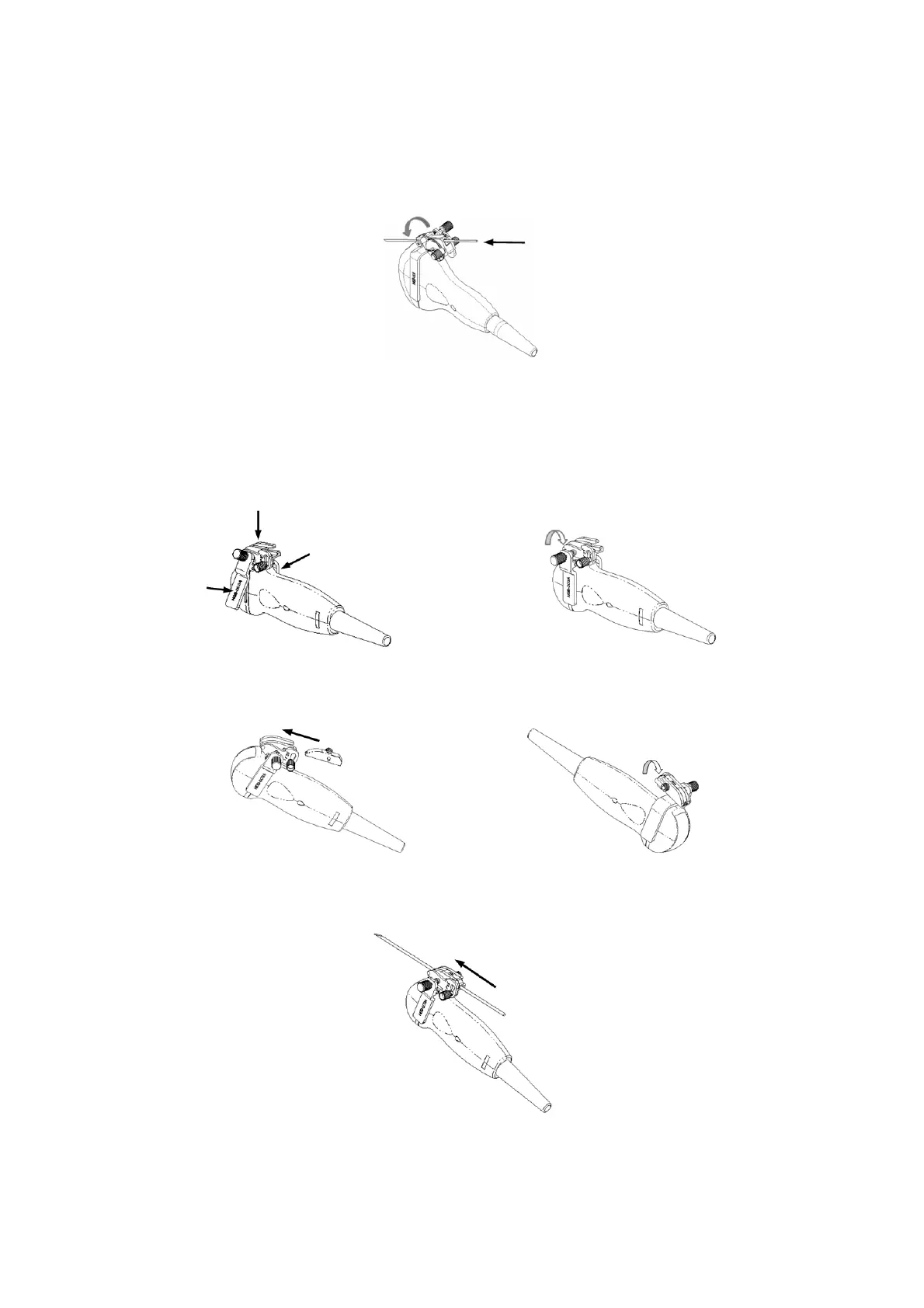

NGB-003 metal/needle detachable needle-guided bracket
(1) Put on the transducer sheath.
(2) Select a proper needle-guided bracket, and match the groove with the tab of the
transducer respectively. Mount the bracket onto the transducer.
(3) Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the transducer.
(4) Select a proper guiding block and push it into the groove above the angle block.
(5) Screw the nut of the block to secure the block.
(6) Insert a biopsy needle with the same specification as that of the guiding block into the
hole of the guiding block.
NGB-004
1. Put on the sterile probe sheath.
