12-20 Probes and Biopsy
penetrate the metal needle, a reflecting boundary is formed. As in Figure 1, if the deflection
angle is very large, the needle display is not clear.
In the condition of deflected ultrasonic transmission, the beam direction is perpendicular to
the needle direction, and the reflection direction will be the same with the needle, as shown in
Figure 2, when the needle display in the ultrasound image is very clear. The system provides
an additional deflection transmission that is approximately perpendicular to the metal needle,
as the normal transmission (perpendicular to the transducer surface) is contained as well. And
the deflection angel can be chosen by users.
iNeedle is an option.

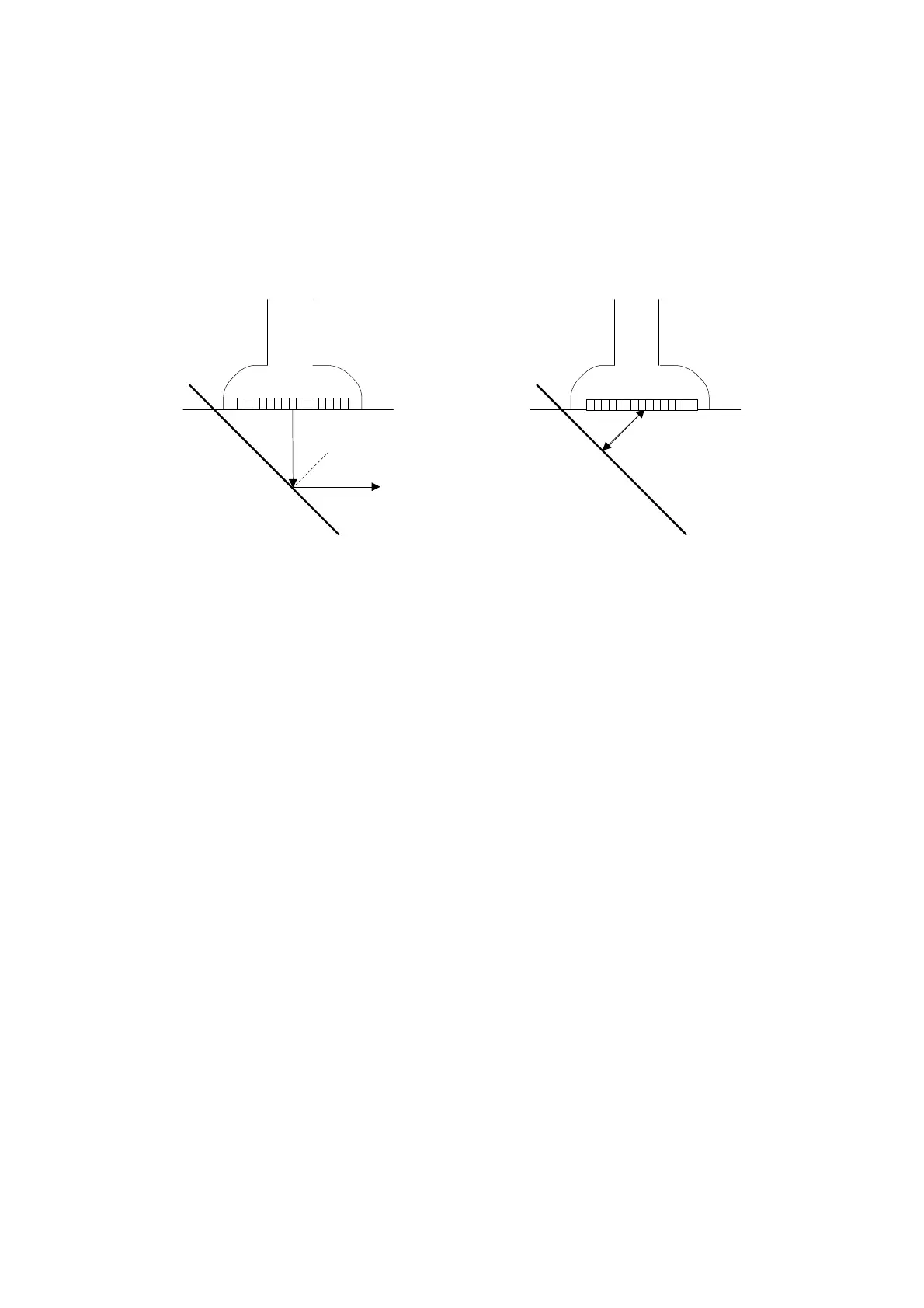

Figure 1 Figure 2
To enter/exit iNeedle
To enter iNeedle
Click [iNeedle] item in B page on the screen.
Or, you can assign a user-defined key for entering iNeedle.
Open iNeedle in Biopsy status
1. Perform scanning and locate the target, press <Biopsy> to enter the screen.
2. Click [iNeedle] to enter the status; available adjusting parameters are displayed on the
menu.
To exit iNeedle
Press the user-defined key or click [iNeedle] to exit the status and enter B mode.
Needle Steer
This function adjusts the biopsy needle angle via changing the steer angle of
the scan line. The iNeedle affecting region changes correspondingly.
Click [Needle Steer] item on the screen.
B/iNeedle
This function is used to display B image and iNeedle image synchronously.
To turn on or off the function, click [B/iNeedle] on the screen.
Tips: iZoom (full-screen magnification) is available on iNeedle status.
