Mindray Z6

Probes and Biopsy 13-21

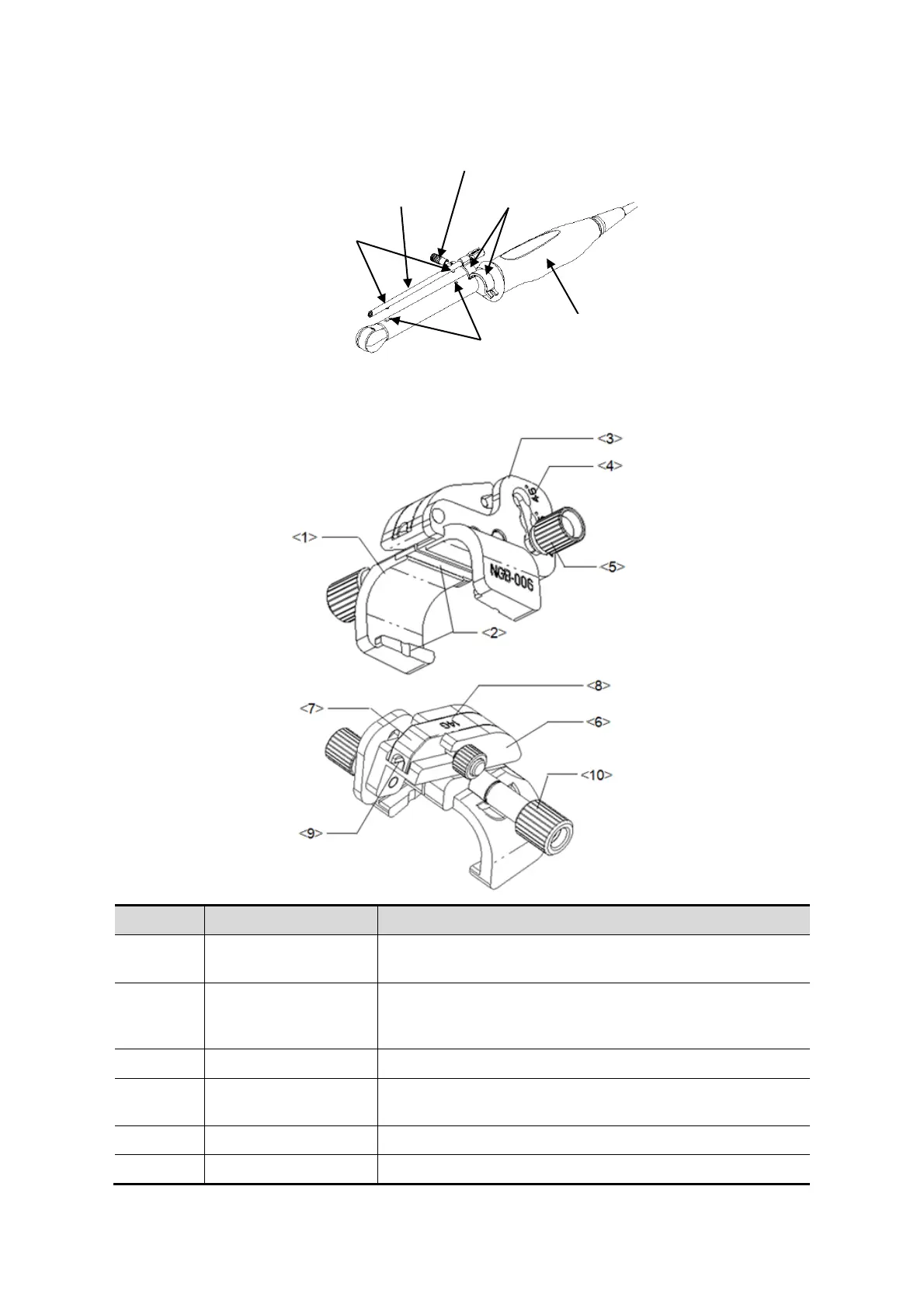

 NGB-004
 NGB-006
 Metal/ needle detachable:
No
Name
Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer.
<2>
Groove and tab of
the needle-guided
bracket
Respectively matched with the tab and groove of the
transducer.
<3> Angle adjusting base There are 3 types of angles available to be adjusted.
<4>
Angle shift sign
(25°,35°,45°)
Matched with the biopsy angle (25°,35°,45°)
<5> Angle pinch nut Used for fixing the angle block at a chosen angle
<6> Angle block Used for fixing the angle block at a certain angle.
Locating groove
Transducer
Needle guide
Locating bulge
Locking nut
Retaining clamp
