Mindray Z6 User Manual

13-32 Probes and Biopsy
 NGB-009 metal/needle detachable needle-guided bracket

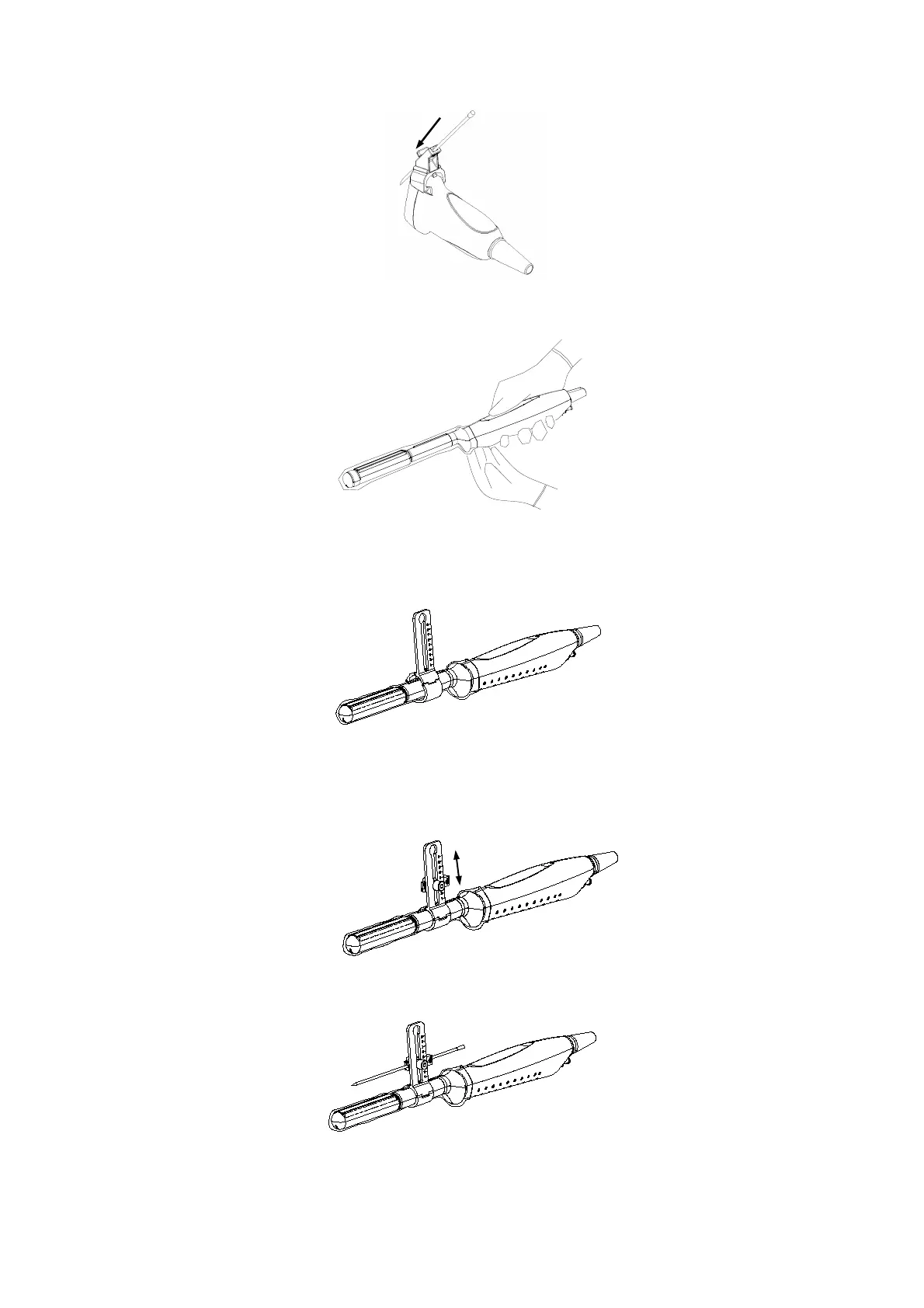

(1) Put on the transducer cover.
(2) Cover the support of needle-guided bracket on the transducer, making the groove of
the needle-guided bracket to match with the tab of the transducer. Set the needle-
guided bracket at the desired position, turn tightly the knob of fixing needle-guided
bracket to fix the needle-guided bracket.
(3) Select a proper guiding block and thread the knob of fixing the guiding block through
the hole of installing guiding block, move the guiding block to the desired position,
then turn tightly the knob of fixing the guiding block to fix the guiding block on the
support of needle-guided bracket.
(4) Insert a biopsy needle with the same specification as that of the guiding block into the
hole of the guiding block and turn tightly the knob of fixing the needle.
