3-4-2. Selecting Span Point Fine-adjustment Mode

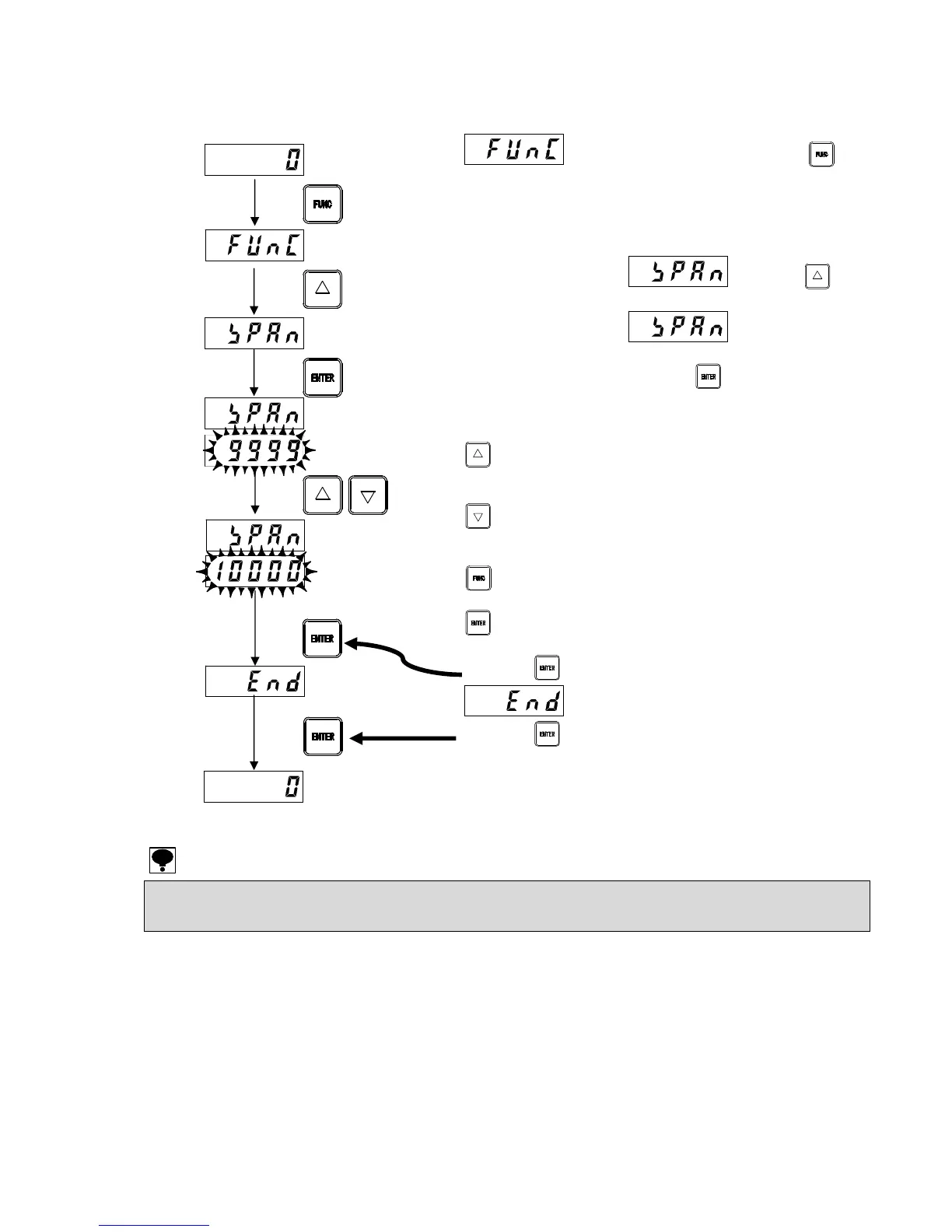

Span point fine-adjustment mode can be selected from measurement mode as follows.
.
appears in the upper part when the key
is depressed for approximately 2 seconds in measurement
mode.
The upper display reads when the key
is pressed three times.
The upper display reads and the reading on
the lower display flashes, indicating span point fine-adjustment
mode has been selected when the key is pressed. The
lower display displays the torque value currently entered. Apply
an actual torque to the torque transducer, and adjust the
display to [actual torque value].
: Increments the torque.
Hold down the key to increment the torque
continuously.
: Decrements the torque.
Hold down the key to decrement the torque
continuously.
: Cancels the setting and returns to measurement
mode.
: Registers the value displayed and proceeds to the
next step.
Press the key after setting.
is displayed after span point fine-adjustment.
Press the key to exit span point fine-adjustment mode.
The system switches to measurement mode and the data set is
registered.
 The change polarity setting will be temporarily canceled for zero/span fine-adjustment. (Restored after
adjustment)
 The A/Z function is canceled once the zero/span fine-adjustment function ends.
Measurement
mode
Current torque
value
(3 times)
Measurement
mode
