The F3L electronics pack can be identified by a yellow dot or L on the rear of the
housing.
a. To Remove the Electronics Pack:
 Remove battery pack and sensitivity endcap.
 Remove the six screws (Part 10) holding the cover bulkhead (Part 9) to the
electronics pack rear panel.

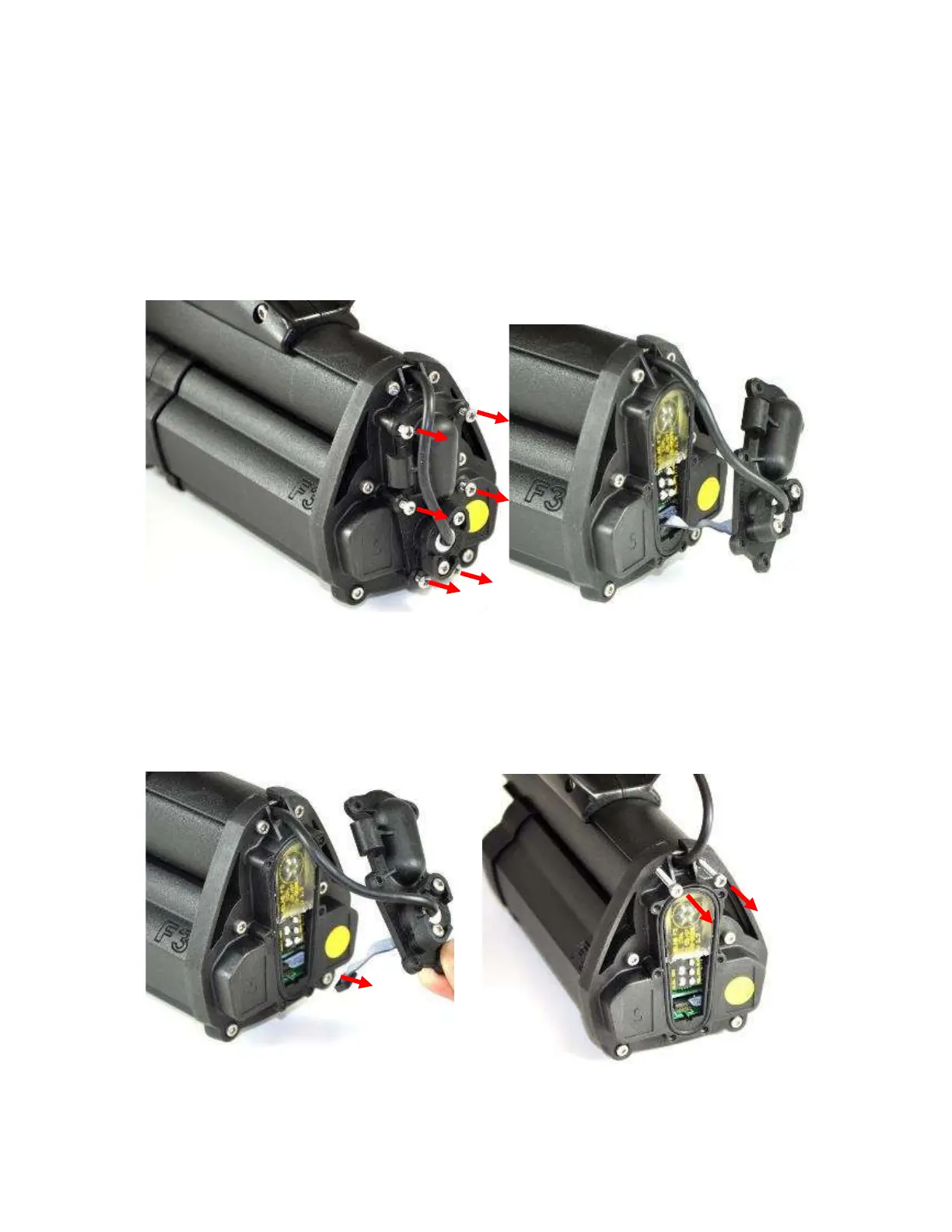

Figure 12: Removing cover bulkhead from the Electronics Pack.
 Pull the cover bulkhead away from the electronics pack.
 Gently unplug the wiring loom plug from the electronics pack, as shown in
Figure 13.
Figure 13: Removal of Wiring Loom from Electronics Pack.
NOTE
