F3 Service Manual
Page 57
3.12 Armrest.

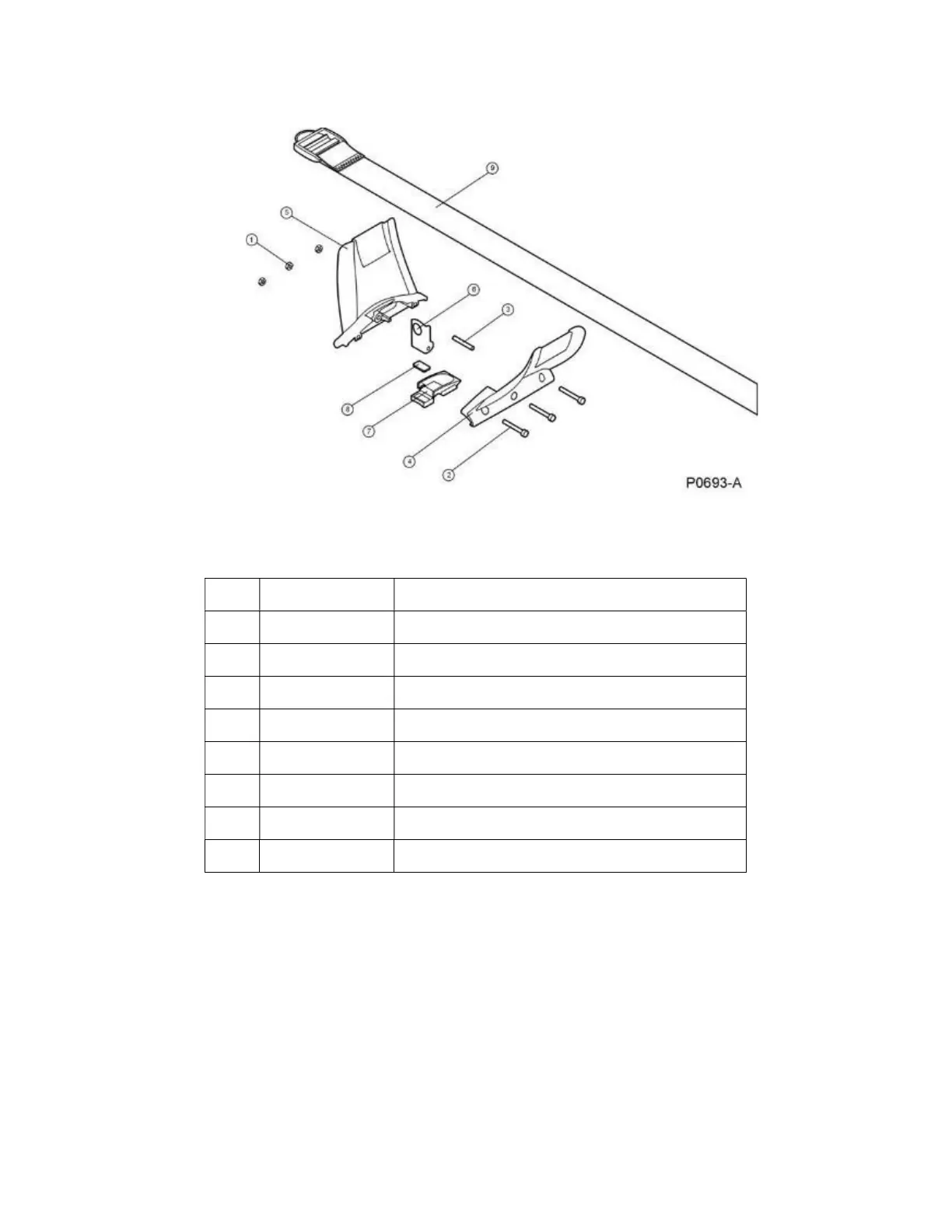

Figure 58 illustrates the major parts of the armrest.
Figure 58: Armrest.
Table 7: Armrest.
3004-0034 Armrest Kit F3, All items in this table
1 31-24000-780 Nut M4 Nyloc
2 31-24030-980 Bolt M4x30 Skt Cap
3 4308-0003 Pin Cam Lever
4&5 3004-0015 Armrest Left & Right
6 8008-0005 Cam Lever
7 8008-0070 Pressure Block Armrest
8 8008-0030 Wear Plate
9 8005-0018 Strap Armrest
a. To Disassemble the Armrest:
Remove the armrest if required. If the electronics pack has been removed the
armrest can be slid off the upper shaft.
Undo and remove the three bolts and nuts holding the armrest halves together.
Carefully pull the armrest halves apart exposing the cam lever, (Part 6), cam
lever pivot pin (Part 3), and armrest pressure block (Part 7).
Inspect and replace parts as required.
