b. To Assemble the Armrest:
Position the right half of the armrest onto the upper shaft.
Fit the armrest pressure block, cam lever pivot pin and cam lever into the right
armrest half.
Carefully fit the left armrest half to the right armrest half and upper shaft.
Refit the three bolts and nuts.
NOTE
If the armrest is difficult to slide on the upper shaft, the middle bolt may need to be
loosened.
c. To Replace the Armstrap:
Thread the armstrap as shown in Figure 59.

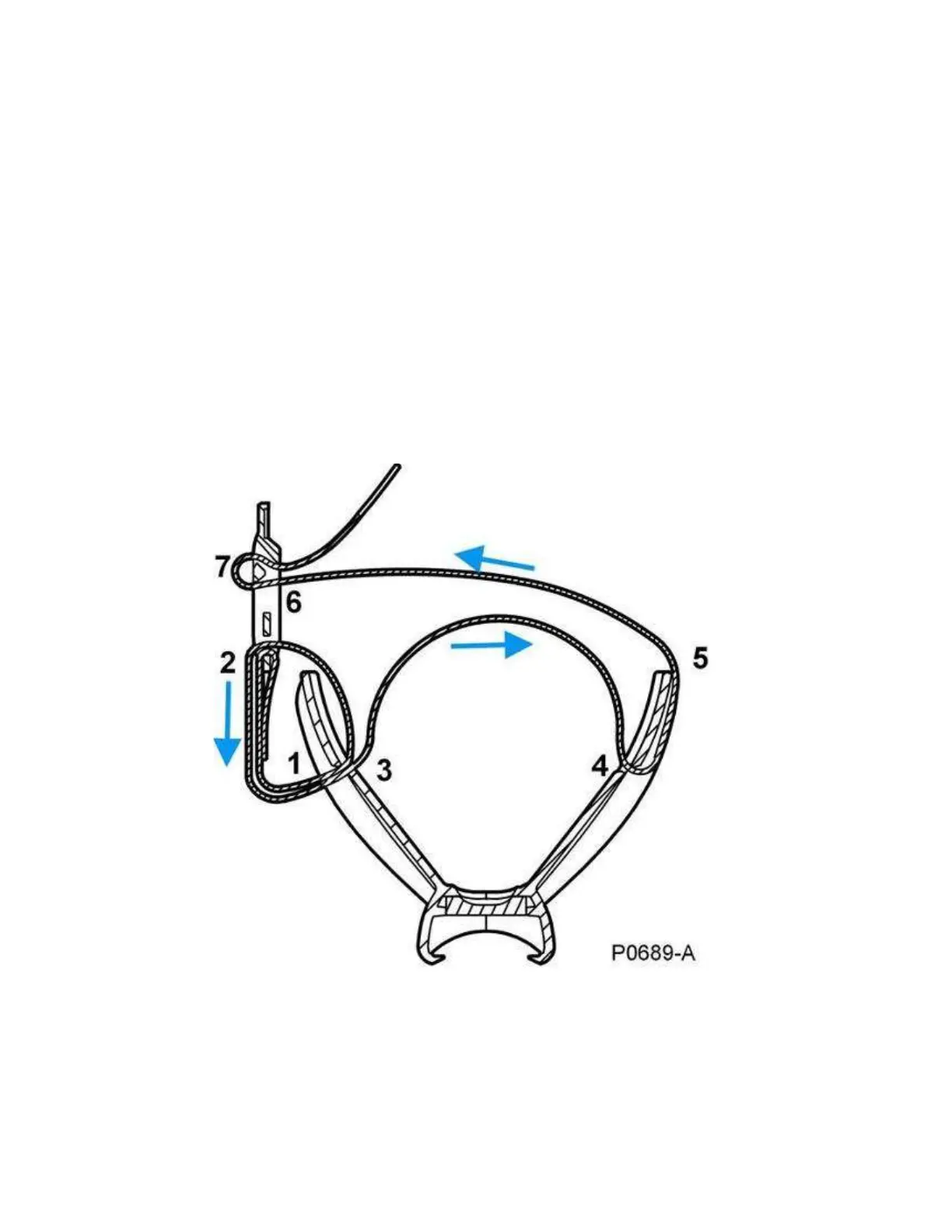

Figure 59: Threading the Armstrap, view from coil.
