3.10 Handle.

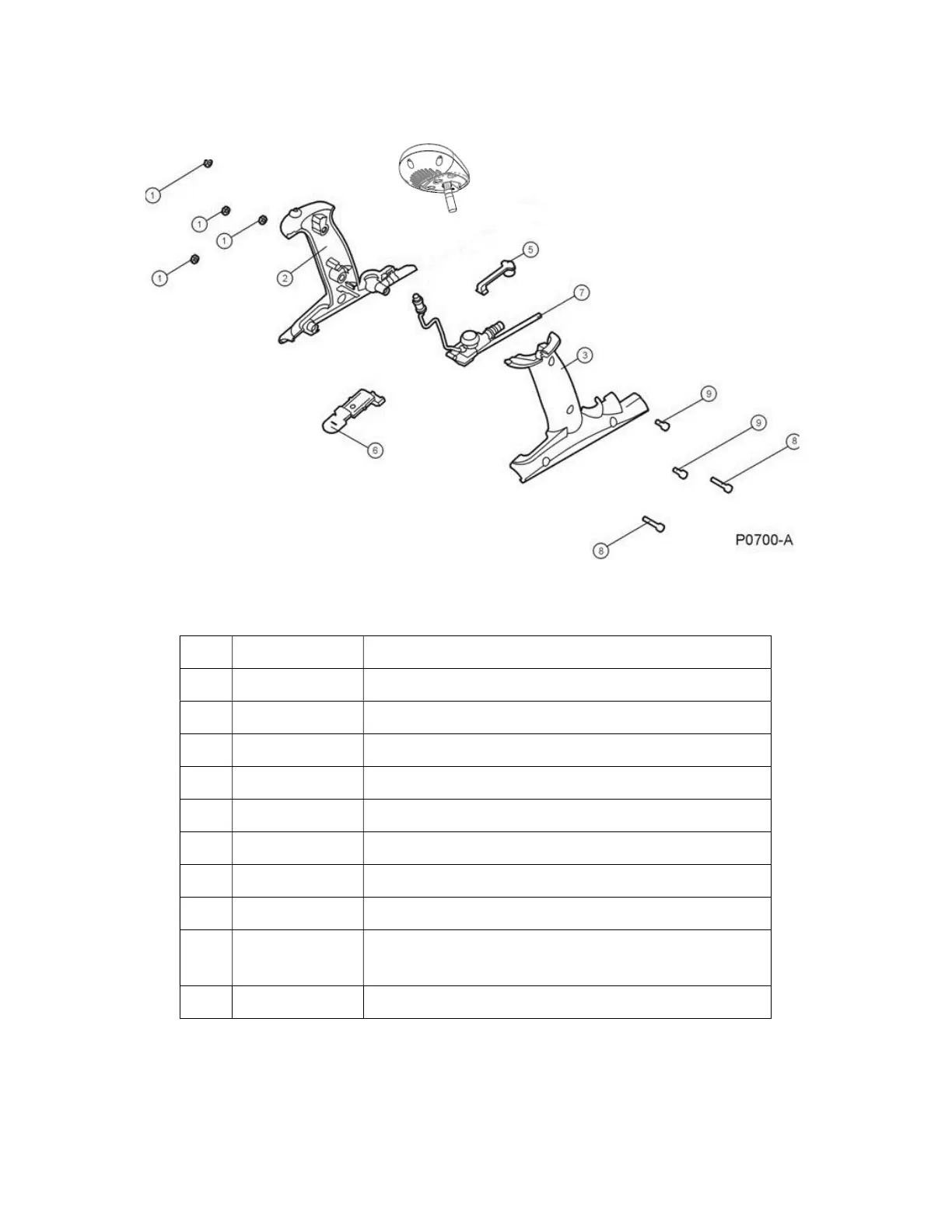

Figure 45 illustrates the major parts of the handle.
Figure 45: Handle.
Table 5: Handle Kit.
3004-0032 Handle Kit F3 (for F3 only)
7 3004-0043 Wiring Loom
3004-0017 Speaker Pod Kit
1 4002-0023 Nut M4 Nyloc Ss
2&3 3004-0016 Handle Left & Right Kit
5 4309-0037 Dustcap Earset
6 8301-0031 Switch Slider On/Off
8 31-24025-980 Bolt M4x25 Skt Cap
9 31-24010-980 Bolt M4x10 Skt Cap
3004-0033
F3L Handle Kit (only used on F3L with LED
display)
3004-0037 F3L Speaker Pod Kit (only used on F3L)
