F3 Service Manual
Page 7
2.4 F3 Main Components
Figure 2 identifies the main components of the F3 which comprise:

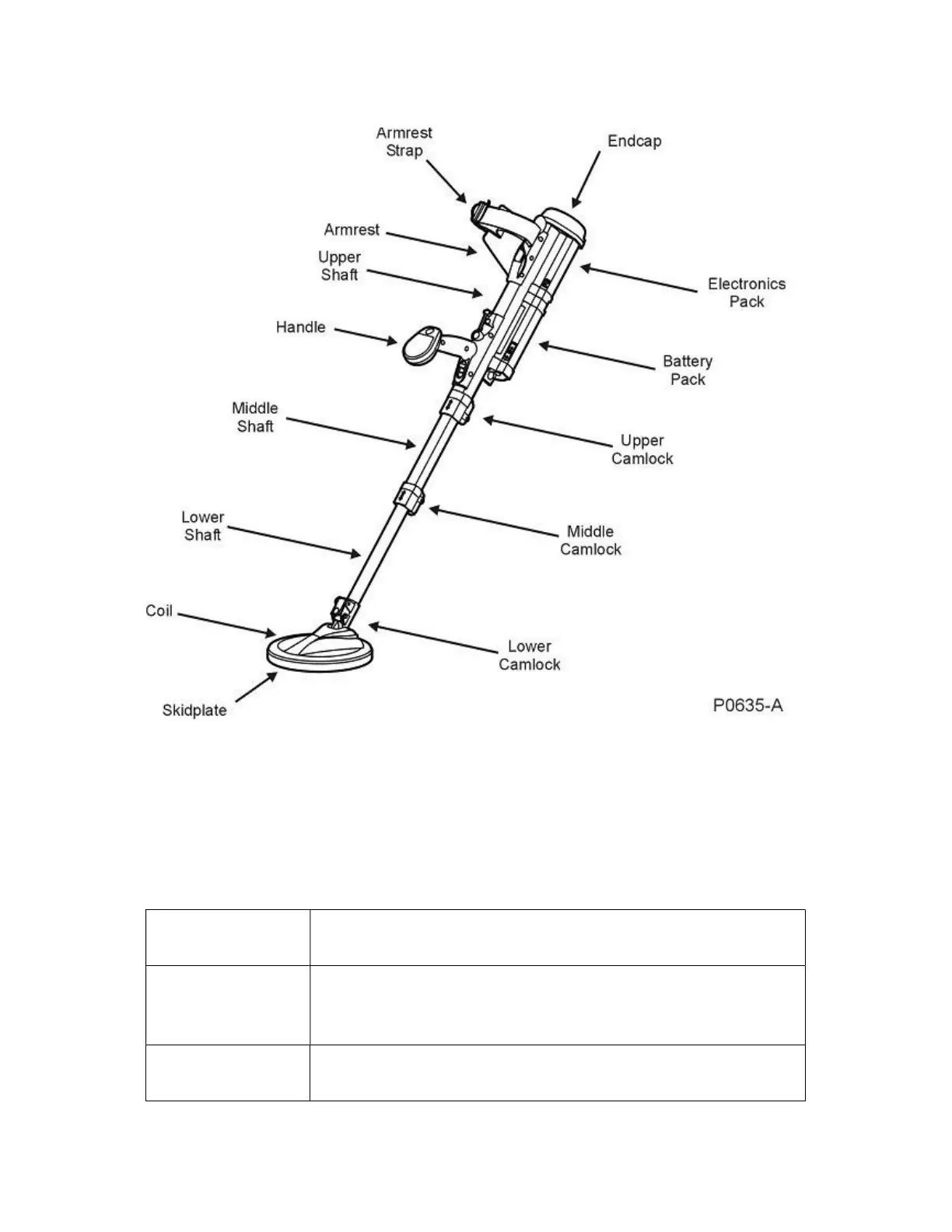

Figure 2: F3 Major Components & Handle Controls
2.5 F3 Accessories
The F3 has a range of accessories and ancillary equipment to support it in the field
this includes:
Table 2: Accessories
4523-0027 Earset Speaker On. Standard earset used in humanitarian
demining, The detectors internal speaker is not muted.
4523-0025 Earset Speaker Off. Tactical Earset which will mute the
detectors internal speaker and disable the LED display (F3L
only).
3011-0306 Earset Generic. A two piece Earset that uses a generic off the
shelf 3.5mm(1/8in) inline audio connector to the Earset.
