F3 Service Manual
Page 23
3.6 Electronics Pack
Figure 11 illustrates the major parts involved in removing and replacing the electronics
pack. The F3 and F3L use different electronics packs and should not be interchanged
unless the correct speaker pods (F3L requires the speaker pod with LED display) are
also fitted.

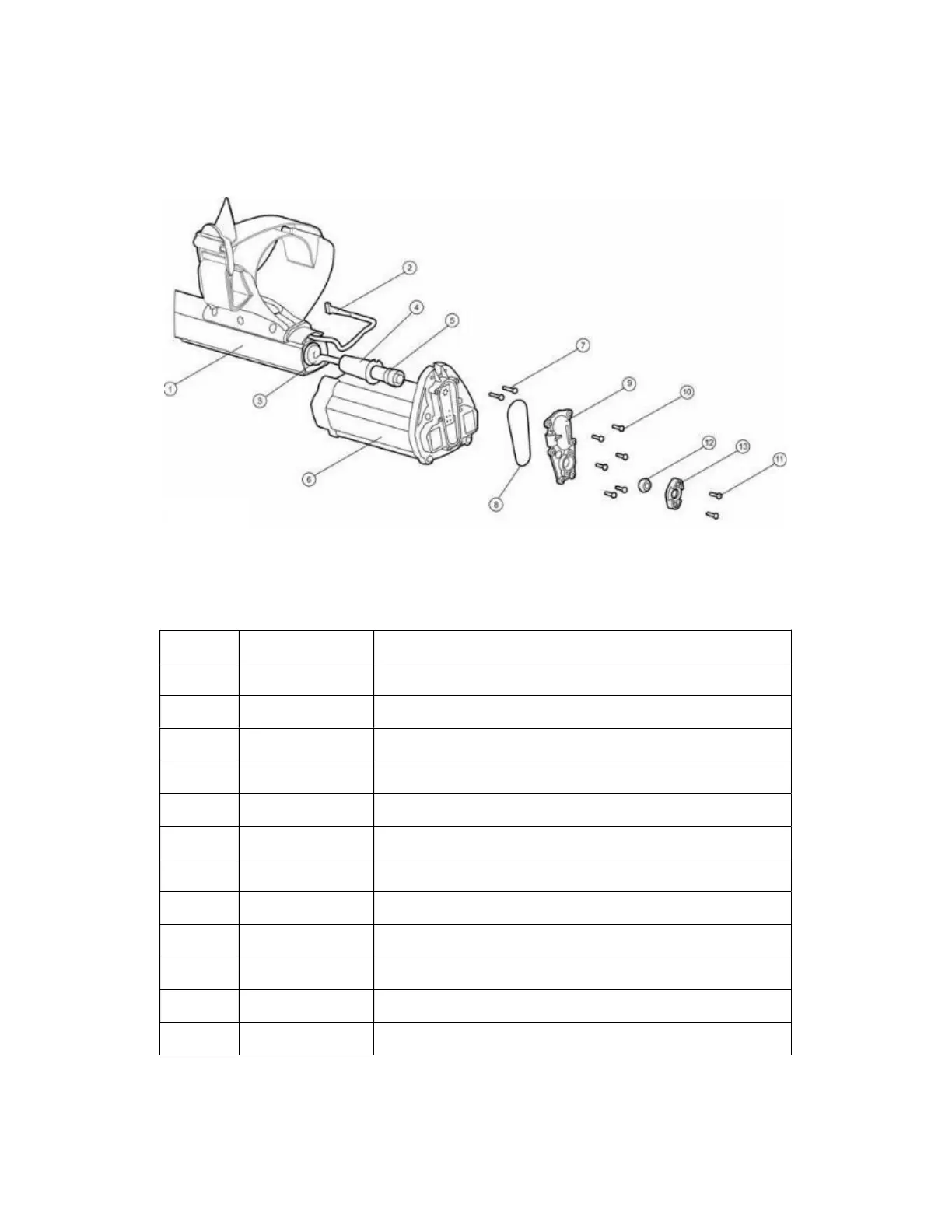

Figure 11: Electronics Pack
Table 6: Electronics Pack.
6 3004-0001 Electronics Pack Kit F3
1 8007-0023 Upper Shaft
2 3004-0043 Wiring Loom
3 Coil Cable (Part Of 2021-0054 Coil F3)
4 8009-0007 Retainer Plug
5 Coil Connector (Part Of 2021-0054 Coil F3)
7 31-23020-980 Screw M3x20 Skt Cap
8 30-4309-0039 O-Ring Bulkhead 50mm
9 0703-0095 Cover Bulkhead EP
10 & 11 4003-0084 Screw No 3x12 Posi
12 4309-0071 Grommet Bulkhead Split EP
13 0703-0097 Cover Ribbon Cable EP
6 3004-0036 F3L Electronics Pack Kit (only used on F3L)
