F3 Service Manual
Page 51

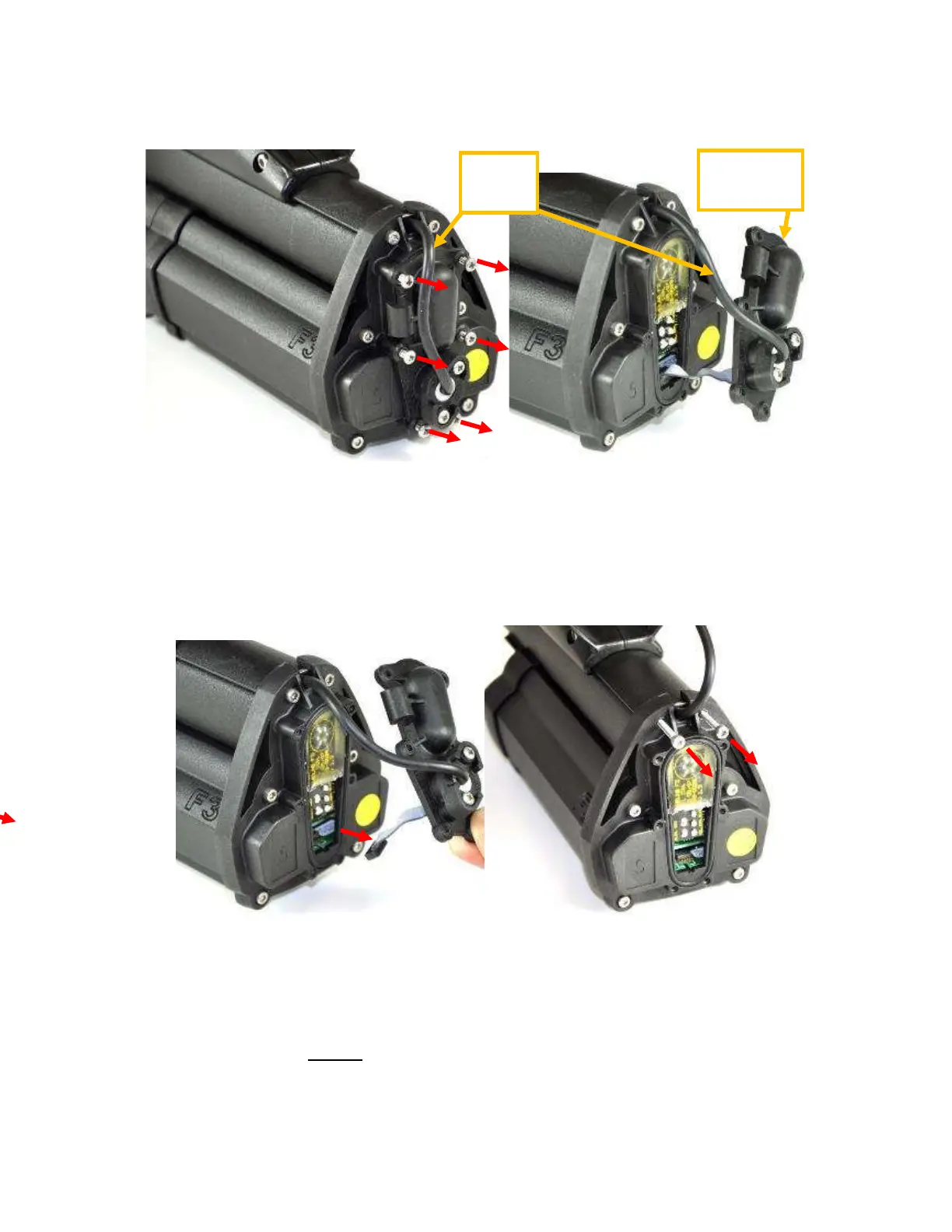

Figure 49: Removal of Cover Bulkhead from the Electronics Pack.
Remove battery pack and sensitivity endcap.
Undo and remove the six screws holding the bulkhead cover to the electronics
pack rear panel. Shown in Figure 49.
Pull the Cover Bulkhead away from the electronics pack.
Gently unplug the wiring loom plug from the electronics pack printed circuit
board, as shown in Figure 50.
Figure 50: Disconnecting wiring loom.
NOTE
Extreme care must be taken when removing the wiring loom plug from the
electronics pack. Do Not use excessive force as this may cause damage to the
connector on the printed circuit board.
Undo and remove the upper two screws securing the electronics pack to the
upper shaft. Shown in Figure 50.
Cover
Bulkhead
Wiring
Loom
To Next Page
