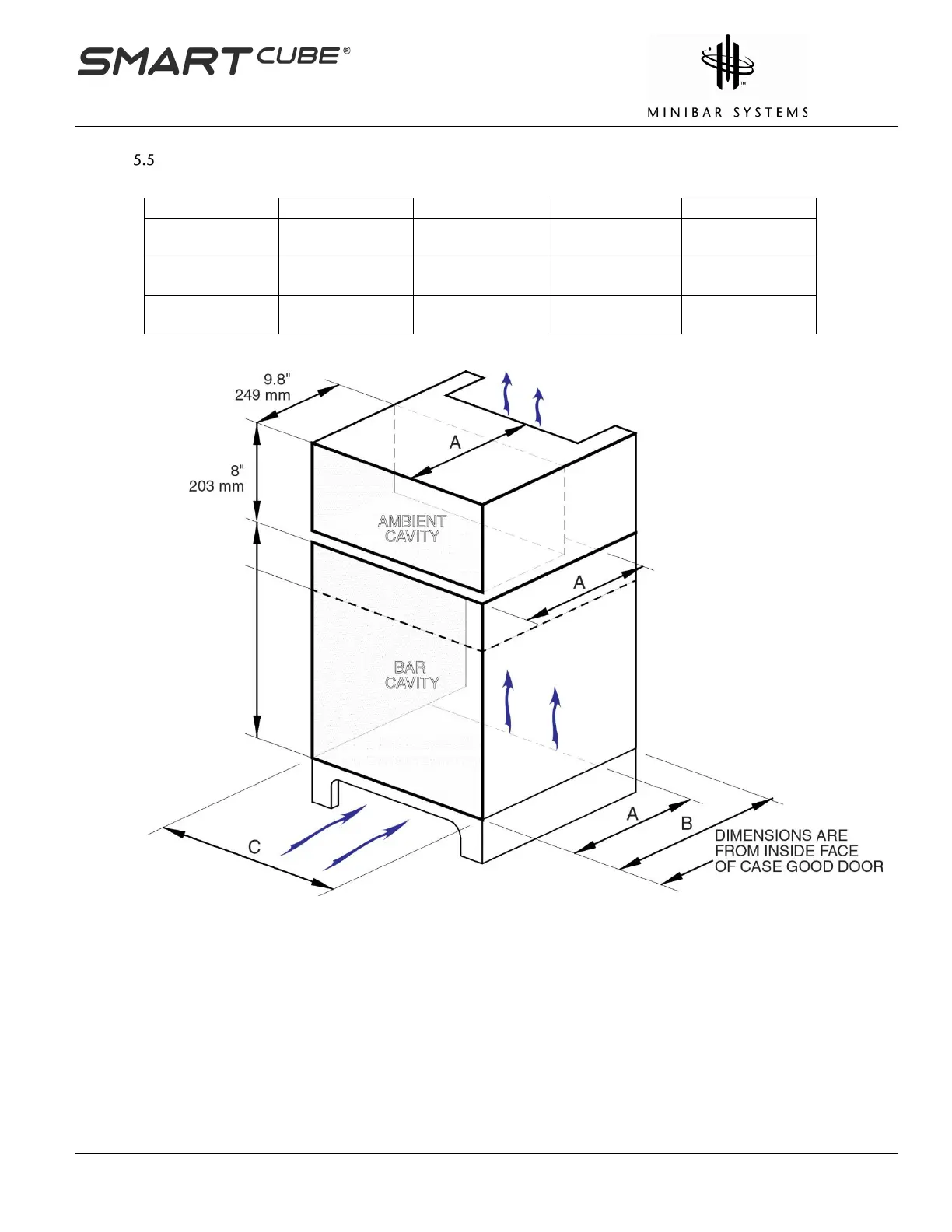

Diagram A – Cavity Opening
Minibar
A
‡
*
B
‡
*
C
D
SC-40i
17.91”
455 mm
22.64”
575 mm
20.47”
520 mm
26.66”
677 mm
GF-27i
17.91”
455 mm
22.64”
575 mm
16.53”
420 mm
26.66”
677 mm
DualBar
17.91”
455 mm
22.64”
575 mm
36.22”
920 mm
26.66”
677 mm
Notes
• All dimensions are internal
• Placement of bar begins 0.5” (13 mm) inside the case good door
• All tolerances 0.12” (3 mm)
• *If the key is stored in the minibar lock, allow an additional 1.2” (30 mm)
• 8” (203.2 mm) recommended for height of ambient housing section for snacks
• Please consult Minibar Systems if hotel is using 2 or more SmartTrays
• The material covering the top of the Ambient Cavity should be matt black
• The height of the Drawer bar cavity is 19 ” or 483 mm
• Not to scale
D
