User Manual
2021 Page 31

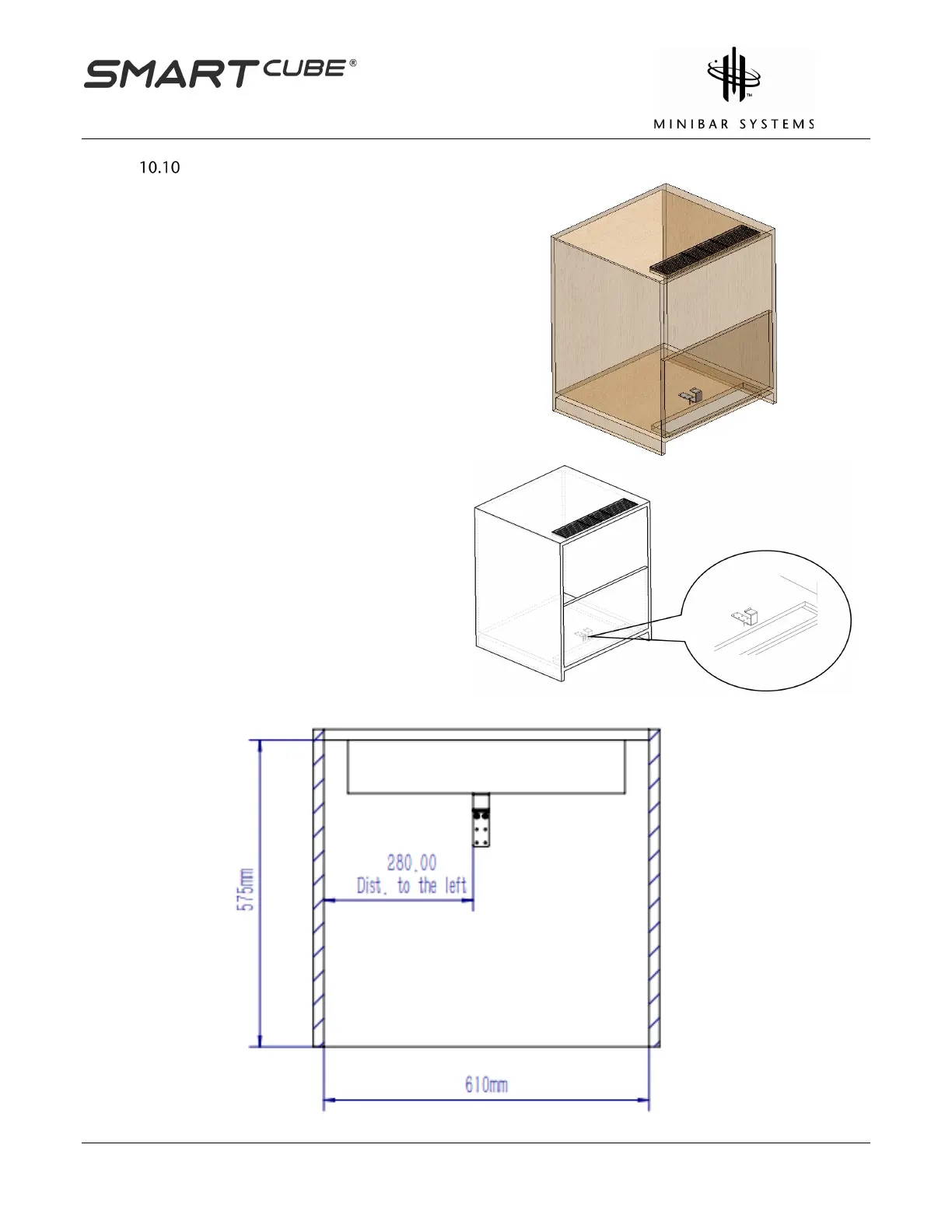

SmartCube Installation
Make a case good per the specified
dimensional drawing for proper ventilation.
(Reference to the dimensional drawings).
Fix the rear anchor bracket onto the case
good using the gauge template or refer to the
dimensional drawing for mounting locations.
Screws(MB-NP-0023) packed in accessory
back along with the bracket(MB-MP-0023).
To Next Page
