Minibar Systems SMARTCUBE SC-40T - Dualbar Installation

User Manual
2021 Page 28

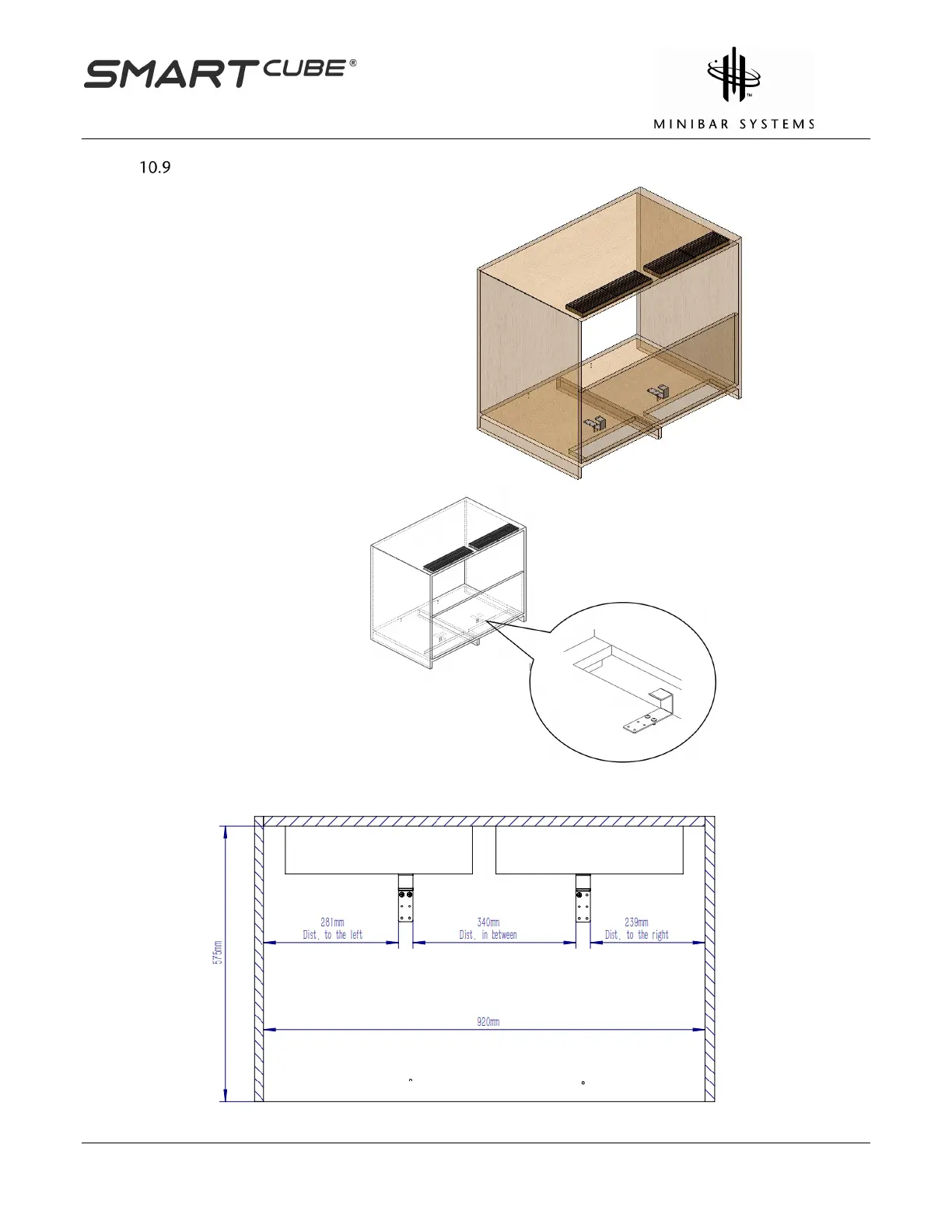

DualBar Installation
Make a case good per the
specified dimensional drawing
for proper ventilation.
(Reference to the dimensional
drawings).
Fix the rear anchor bracket
onto the case good using the
gauge template or refer to the
dimensional drawing for
mounting locations.
Screws (MB-NP-0023)
packed in accessory back
along with the bracket (MB-
MP-0023).
