21. Installation Guide
21.1. The Magnetic Tape

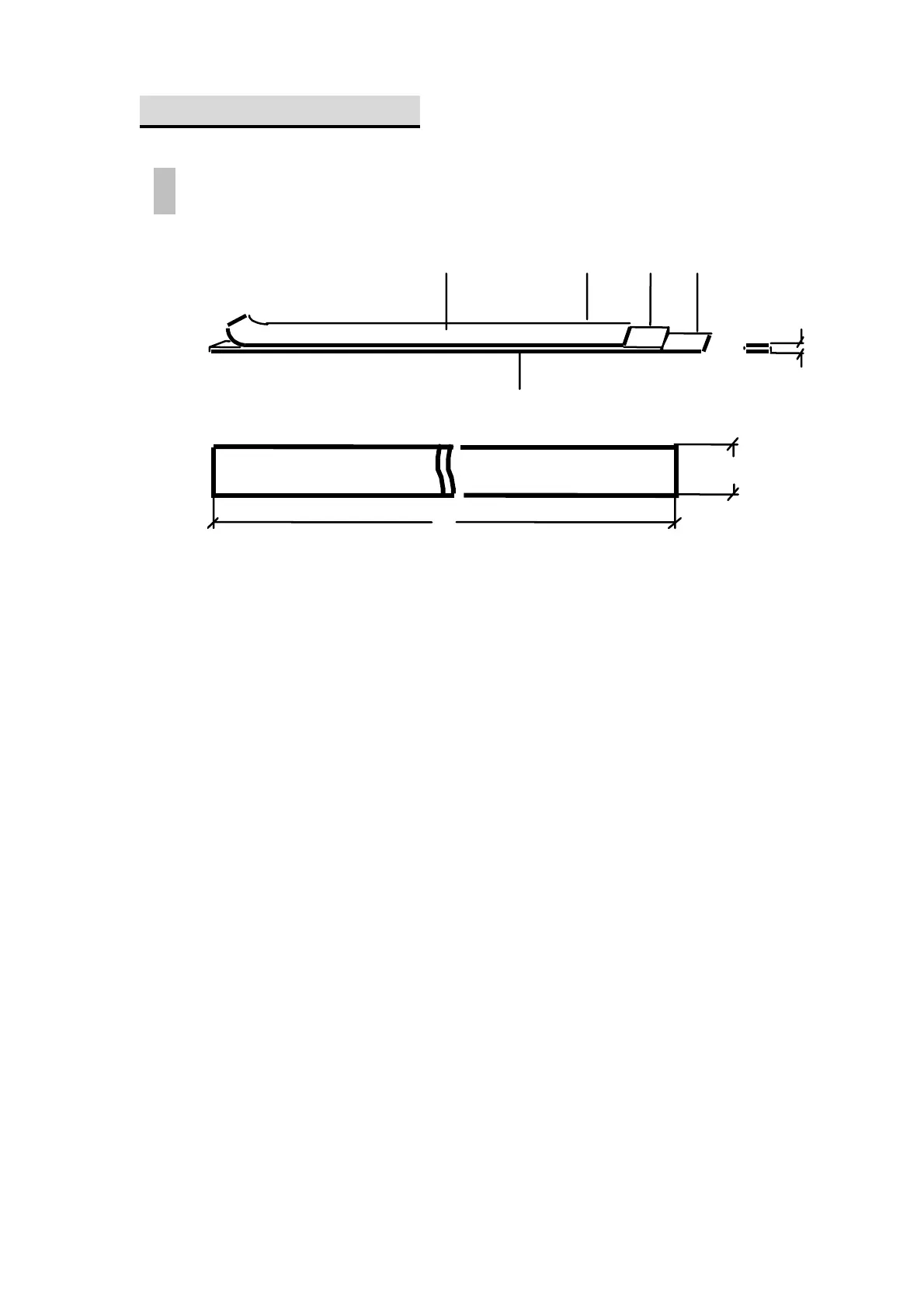

★The magnetic tape consists of three components:
1,8mm
CAB
Mounting side
Sensor side
L
10mm
A. A magnetized, highly flexible synthetic tape.
B. Flexible steel tape. A and B are already factory-bonded.
C. To keep the flexibility for transport and installation, the third part, also a steel tape is
delivered separately. It serves for mechanical protection of the synthetic tape and
must be stuck on the magnetic synthetic tape after installation.
Installation:
A. Must be away form inductive and capacitive interference source as conductor,
relays, engines, switch power pack clocked controllers, etc.
B. Must be wired separately from heavy-duty current wires.
C. Must be kept a distance to interference sources.
