2. Operation Modes
There are two base operating modes – MANUAL and SINGLE.
In MANUAL mode: The operator can move the machine using the M15
keyboard.
In SINGLE mode:
Automatic positioning is performed.
Press
to select Manual mode or Single mode
。
※
When LED lamp on – Manual mode
；
LED lamp off – Single mode.
MANUAL
SINGLE
MANUAL
SINGLE
MANUAL
SINGLE

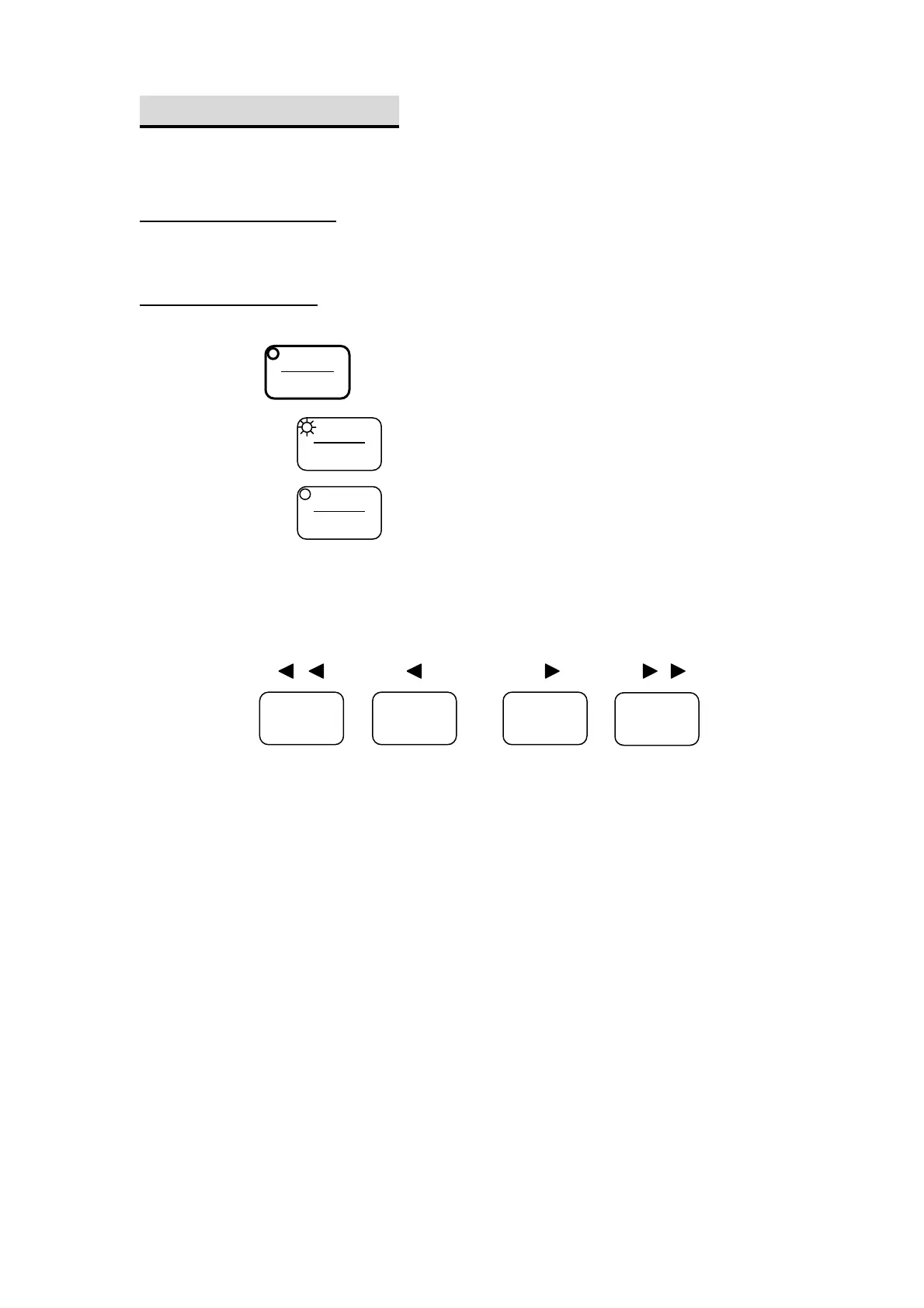

2.1. Manual mode
Keyboard Function：
8 97
F
FAST Backward
Forward FAST
If two-speed positioning mode has been selected, the fast forward and fast
backward keys are functional and start fast movement of the machine
table.
If one-speed positioning mode has been selected, the fast forward and fast
backward keys have the same function as forward and backward keys.
When forward key is pressed, the machine table starts to move in the
direction to increase the distance – away from the cutting edge of the tool
(machine table goes down).
When backward key is pressed, the machine table starts to move in the
direction to decrease the distance – close to the cutting edge of the tool
(machine table goes up).
The machine moves until a key is hold pressed. When the key is released,
the machine stops.
This mode can be used for manual positioning, or adjusting procedures.
