MBE059F03
27 / 32
25. Power supply & Hardware
a. Power supply: DC18 ~30V 50mA, 2 pin connector
b. Battery: C type battery x 1,
the battery life : 2.5 year (24hr)
c. Output (8 pin connector)
z Relay × 4: Forward, Reverse, low speed and positioning.
※Positioning: only works inside the tolerance and on position mode.
(Manual mode: do not work)
z NO
z AC240V/ 5A AC120V/ 10A DC24V/ 10A
d. Input (5 pin connector)
z COM

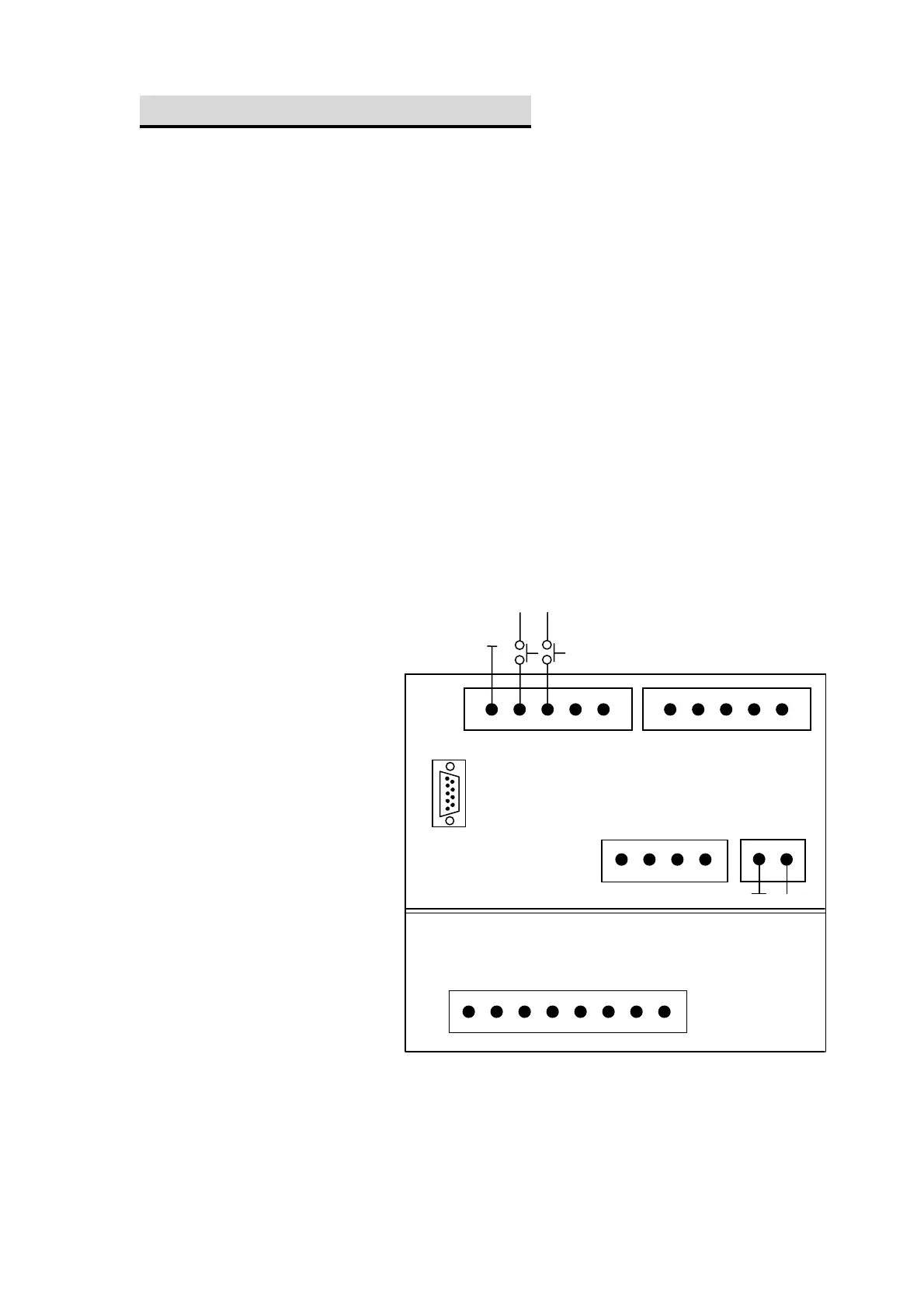

Back panel（face squarely）
z start
START STOP
No use Input (5Pin)
COM
24V
24V
OV
Forward Reverse low speed positioning
▓ ▓ ▓ ▓
Output (8Pin)
COM NO COM NO COM NO COM NO
C )onnector (9 Pin
RS485 (4Pin)
OV
+24V
2Pin)Power (
z stop
z repeat
z No use
To Next Page
