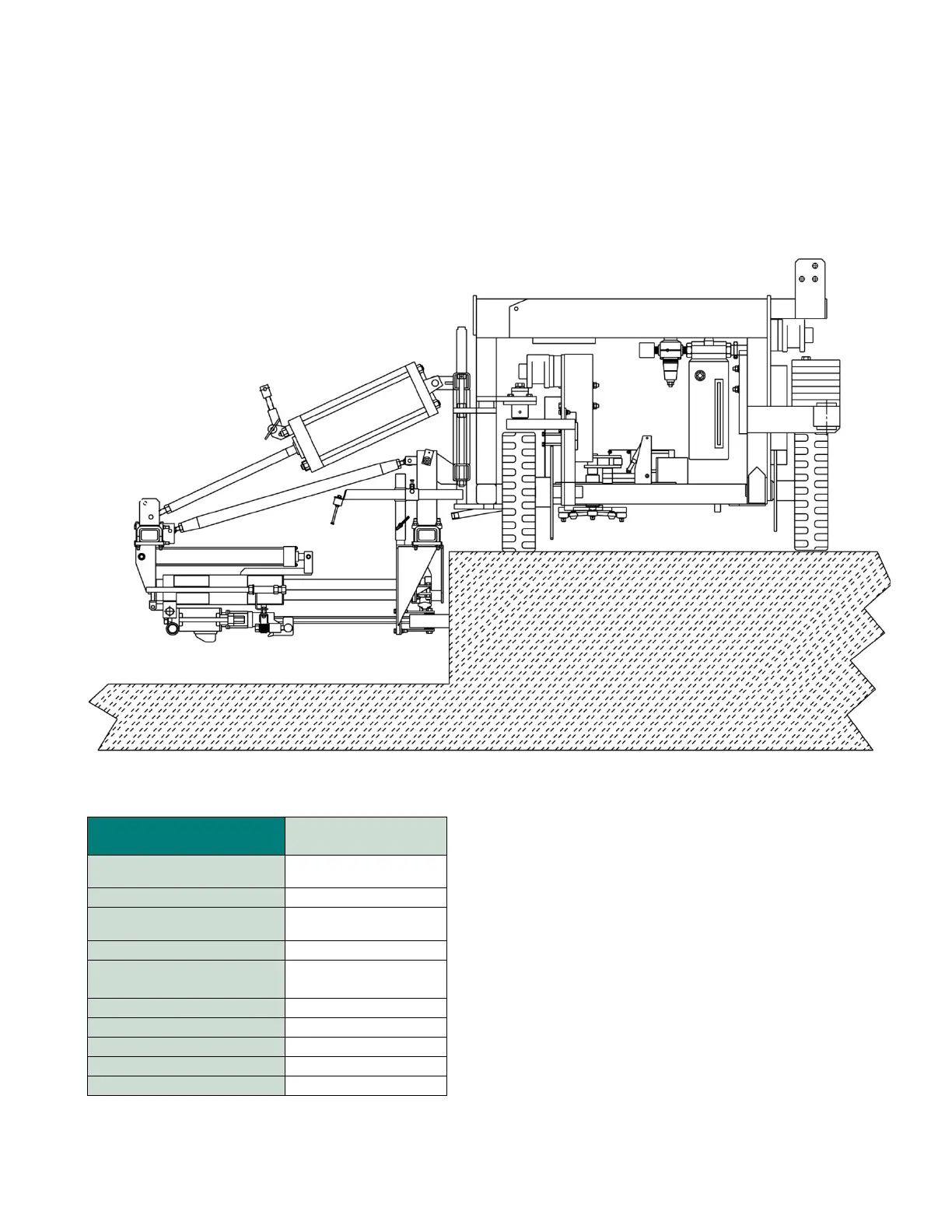

A-4SC/A-5SC Multiple Drill,
Self Propelled On Slab Unit
Specifications shown are standard. Variations to the standard are
available.
Horizontal and Vertical drilling
Skew drill bed is available on the A-4SCW
On grade kit is available
Capable of towing air compressor
Power crab steering
Power steering
Power brakes
Hole Spacing Pointer
Solid rubber tires
Adjustable drill height, depth and centers
Auto control
Dust collection is available
Model
A-4SC/
A-5SC
Drill Steel Shank
.875” x 4.25”
(22.2mm x 107.9mm)
Drill Steel Length U.C.
24” (61.0cm)
Drill Bit Diameter
.625” – 2.50”
(15.9mm to 63.5mm)
*Maximum Drill Depth
18” (45.7cm)
Drill Distance
From Top of Slab
3.5” – 12”
(8.9cm to 30.5cm)
Minimum Cutout Width
48” (121.9cm)
SCFM Required Per Drill
92.2 (43.5D m
3
/sec)
PSIG Required
110 (7.58 BAR)
Weight A-4SCW (basic)
3260lbs. (1433kg)
Weight A-5SCW (basic)
3460lbs. (1569kg)
