The high capacity spray plate should be fitted to the handset when maintained inlet
pressures are above 1 bar .
1.0
2.0
3.0
0
4.0
Flow Rate (litres/minute)
Pressure Loss (bar)
5.0
05 252010 15 30
Economy
Soothe
Start
Force
Mira Form with the high capacity sprayplate fitted to the handset
(Maintained supply pressures are equal and outlet temperature set to mid-blend)

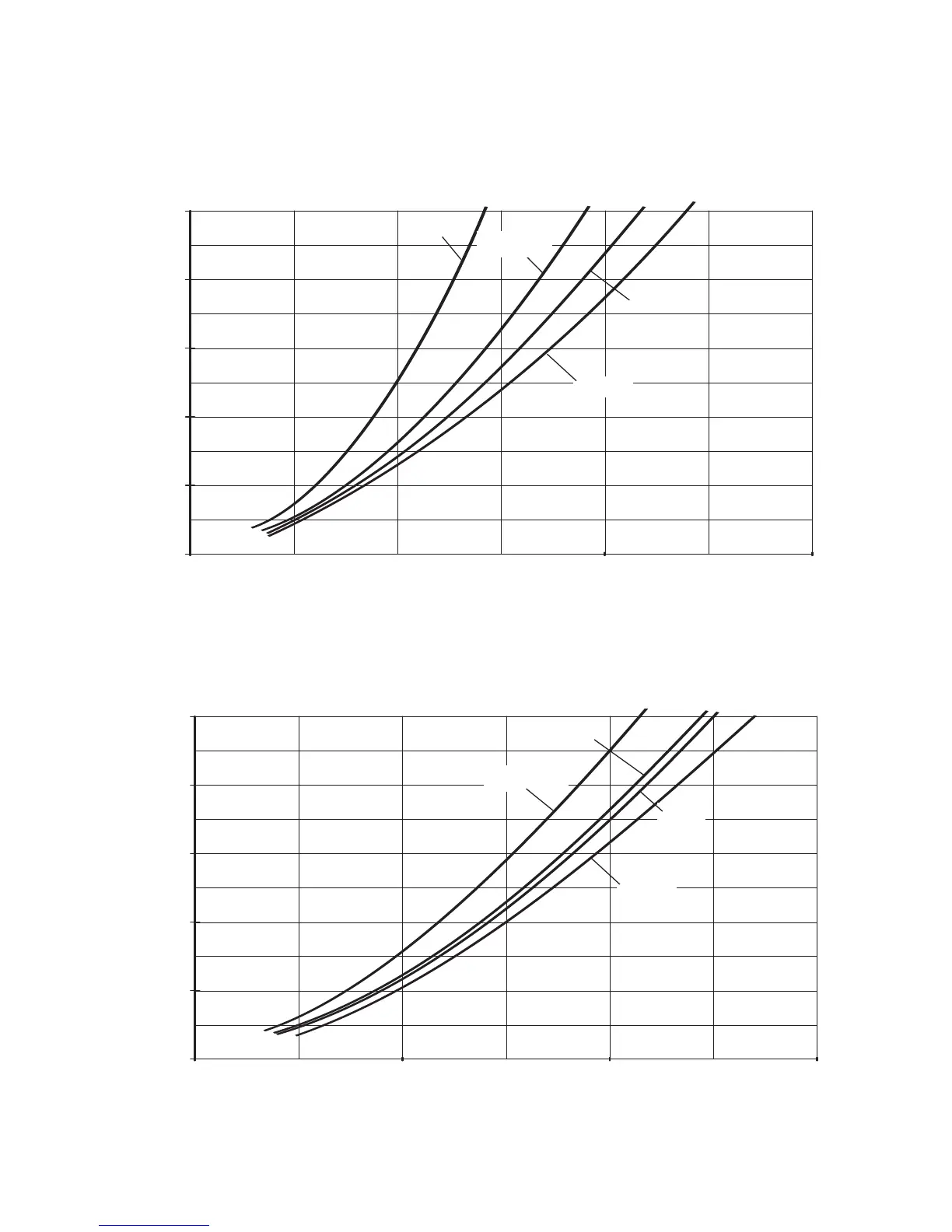

Mira Form Thermostatic Shower with Fittings
Flow Rate / Pressure Loss Graphs
1.0
2.0
3.0
0
4.0
Flow Rate (litres/minute)
Pressure Loss (bar)
5.0
05 252010 15 30
Soothe
Start
Force
Mira Form with the low capacity sprayplate fitted to the handset
(Maintained supply pressures are equal and outlet temperature set to mid-blend)
Economy
