FX-3500 Overview
3.0 FX-3500 Overview
This chapter lists all the possible components of an FX-3500 system.
3.1 FX-3500 Fire Alarm Control Panel Models
All FX-3500 Fire Alarm Control Panels have the following features:
• Main Board, Power Supply and Backbox.
• Multi-zone fire alarm control panel
• MAM-3500 Main Display with 4 x 20 LCD display.
• Class A (Style 6 or 7) or Class B (Style 4) analog loop(s).
• Four Power Limited Class B (Style 4) or Class A (Style 6 or 7) NAC circuits (max 1.5
Amps each - 6.0 Amps total).
• Dedicated common alarm, supervisory, trouble, and auxiliary alarm relays.
• Additional RAX-1048TZDS Display Adder Module can be added to provide 96
annunciation points per Adder.
• Additional outputs include connections for a RTI remote trouble indicator, PR-300
Reverse Polarity Module, an RS-485 bus for connection of up to seven RAX-LCD-LITE,
RAM-3500-LCDs, SRM-312s and RA-1000 Series annunciators.
• Auxiliary power is available in the form of 24V FWR unfiltered and unsupervised, 24VDC
filtered and regulated, and resettable auxiliary power supply.

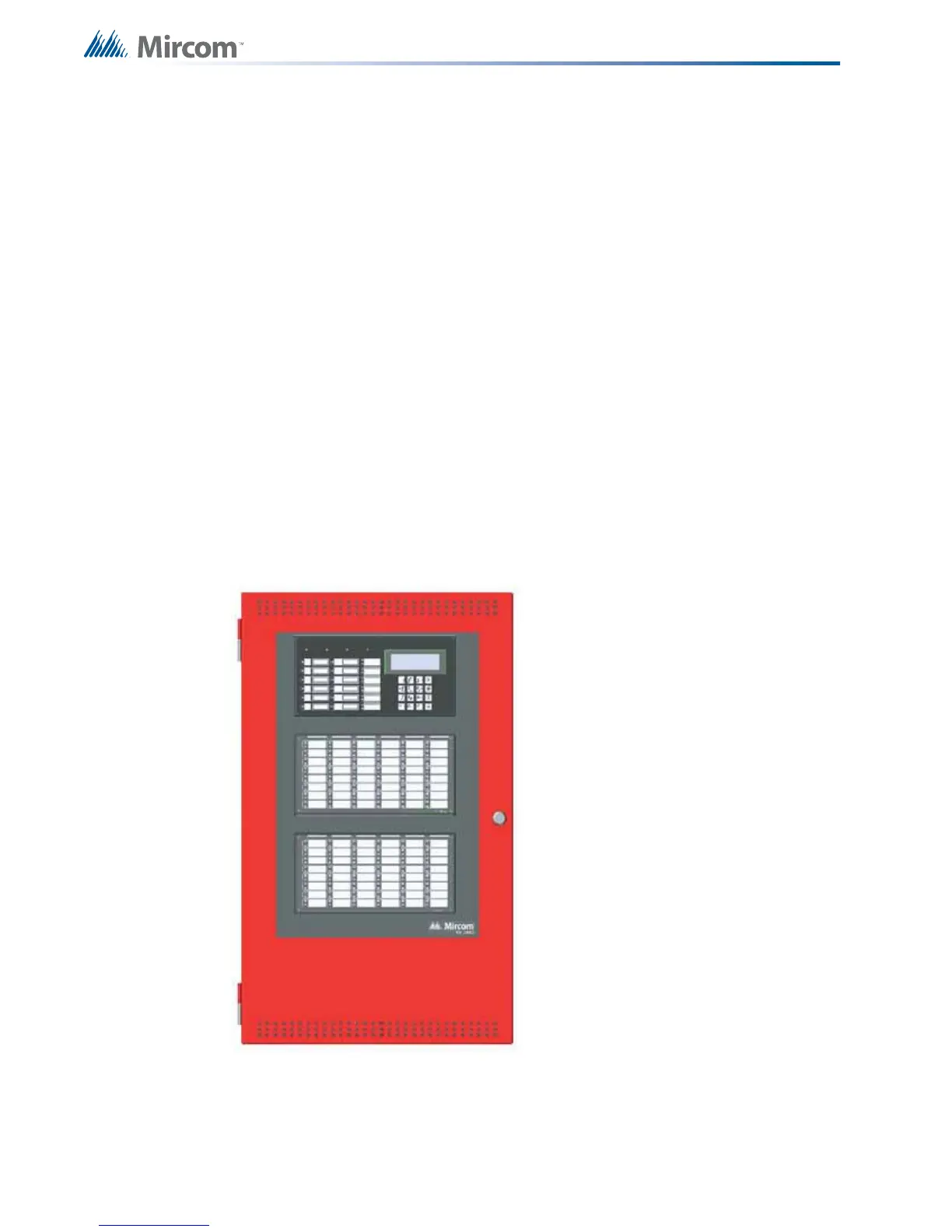

Figure 1 FX-3500 with DOX-1024DSR
