7.5 Module and Devices Wiring
7.5.1 Dialer Wiring
Wire the Dialer to the Public Telephone Switch and premises Telephone as shown in Figure
19. For information on Compatible DACR Receivers see Chapter 8.0 Appendix A - Compatible
Receivers.

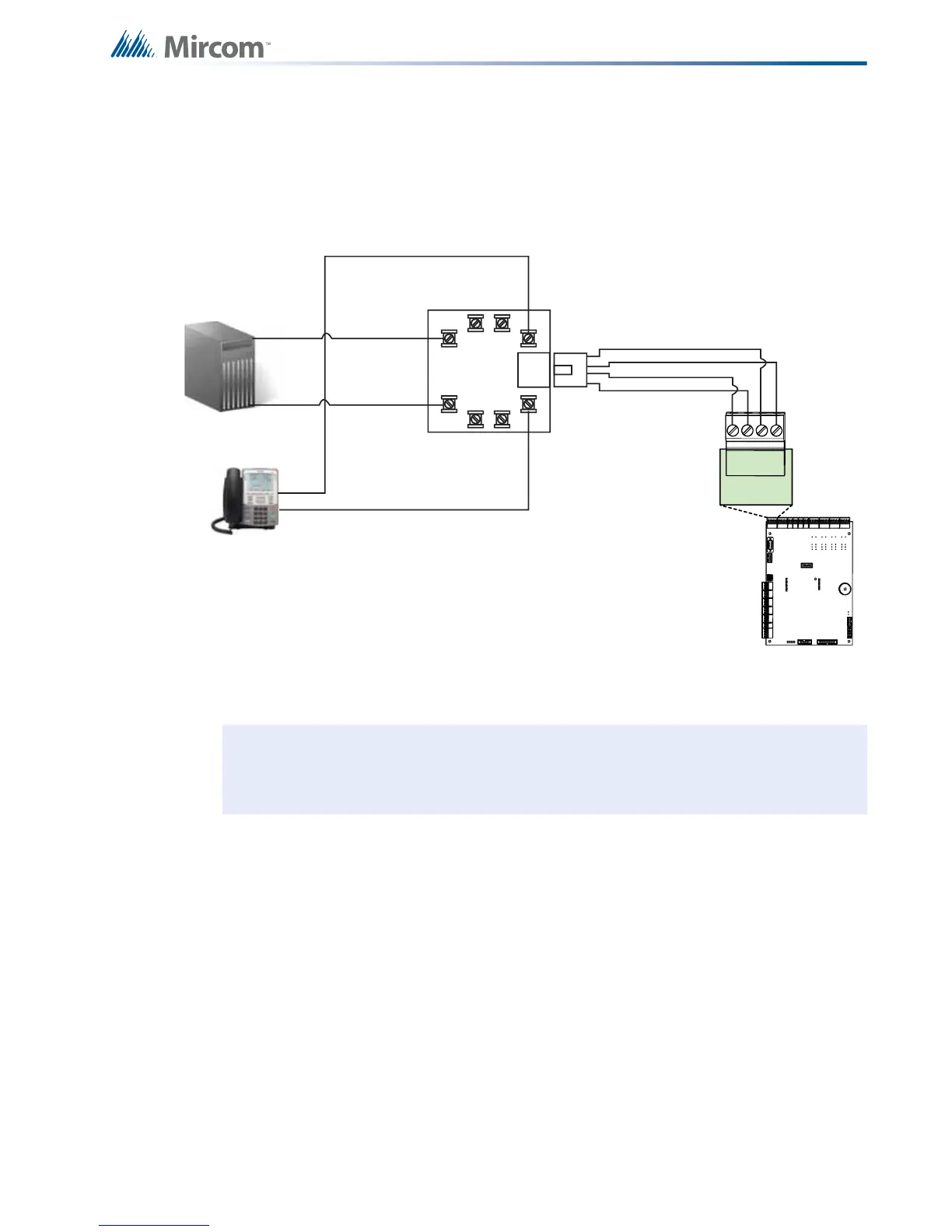

Figure 19 Wiring the Dialer
Caution: To reduce the risk of fire, use only No. 26 AWG or larger
telecommunication line cord.
8
7
6
5
1
23
4
TIP
RING
TIP
RING
Public Switch Telephone Wiring
Premises Telephone (if permitted)
Line 2 wiring as shown for Line 1
RJ31X
GREEN
RED
BROWN
GREY
LINE1
TRTR
RES CO
!
