69
Wiring
7.3 Addressable Loop Wiring
7.3.1 Addressable Loop Wiring - Class B or Style 4

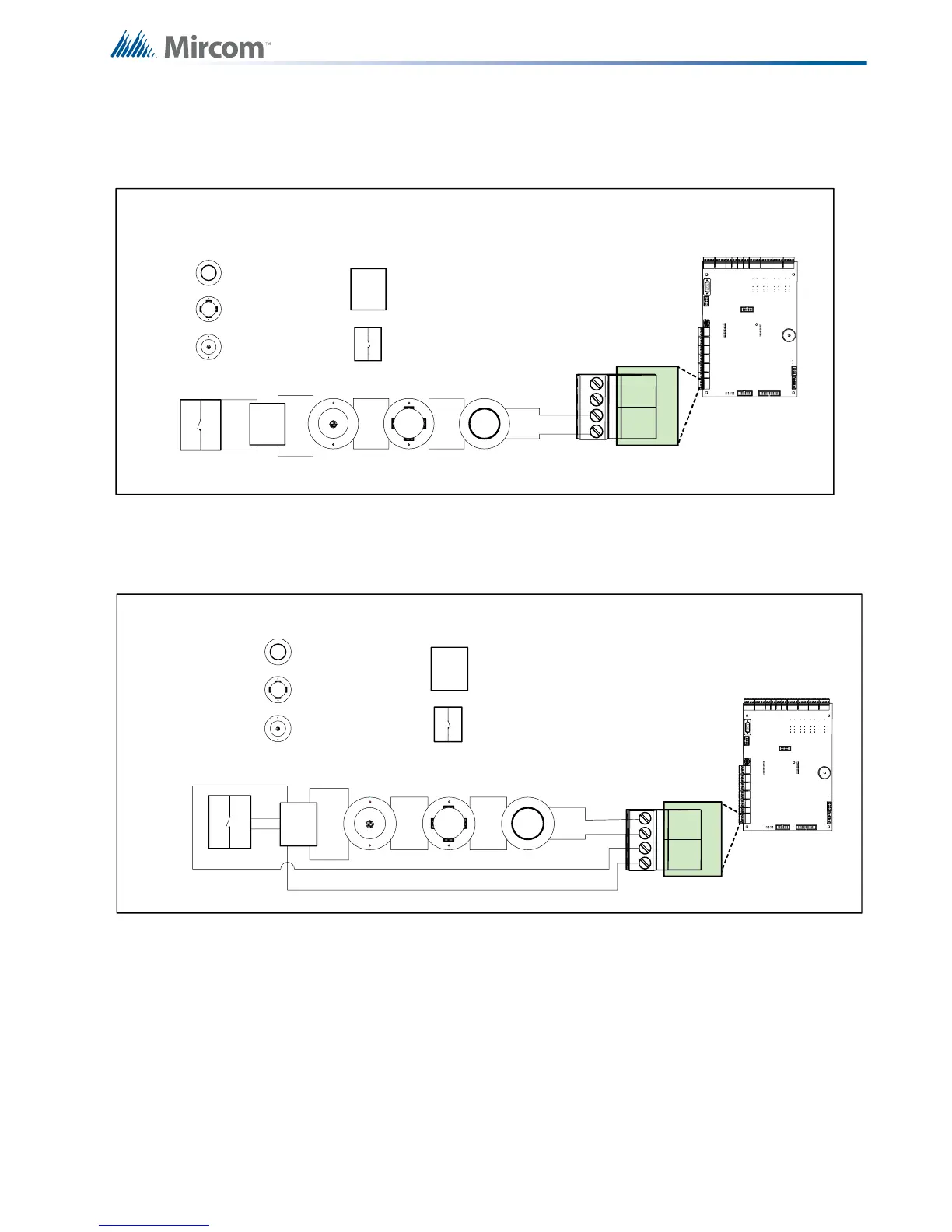

Figure 13 Addressable Loop Wiring - Class B or Style 4
7.3.2 Addressable Loop Wiring - Class A or Style 6
Figure 14 Addressable Loop Wiring - Class A or Style 6
CLASS B
WIRING
ION SMOKE
DETECTOR
PHOTO SMOKE
DETECTOR
HEAT DETECTOR
PULL STATION
OUTPUT MODULE
M
M
A LOOP1
B
+
-
+
-
CLASS A
WIRING
ION SMOKE
DETECTOR
PHOTO SMOKE
DETECTOR
HEAT DETECTOR
INPUT MODULE
OUTPUT MODULE
M
M
A LOOP1
B
+
-
+
-
