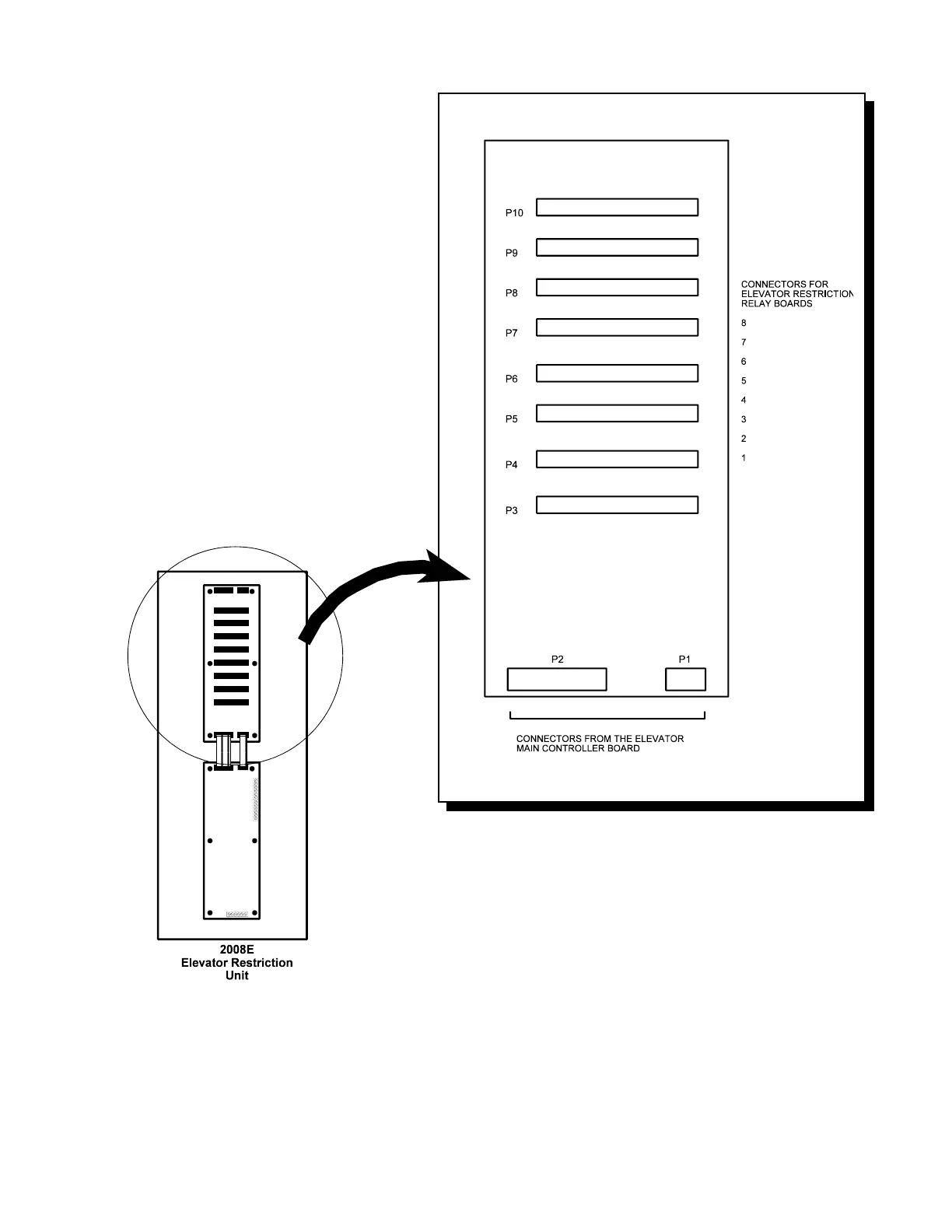

The 2008E Elevator Restriction Unit Backplane

Board has ribbon cables to connect to the

Elevator Main Controller Board and 2012E Relay

Board sockets. There can only be one Backplane

Board per 2008E Unit.

P1 & P2 Expansion from the Elevator

Restriction Main Controller

Board.

P3 to 10 Connectors for the Elevator

Restriction 2012E Relay Boards

(maximum eight relay boards per

backplane).
