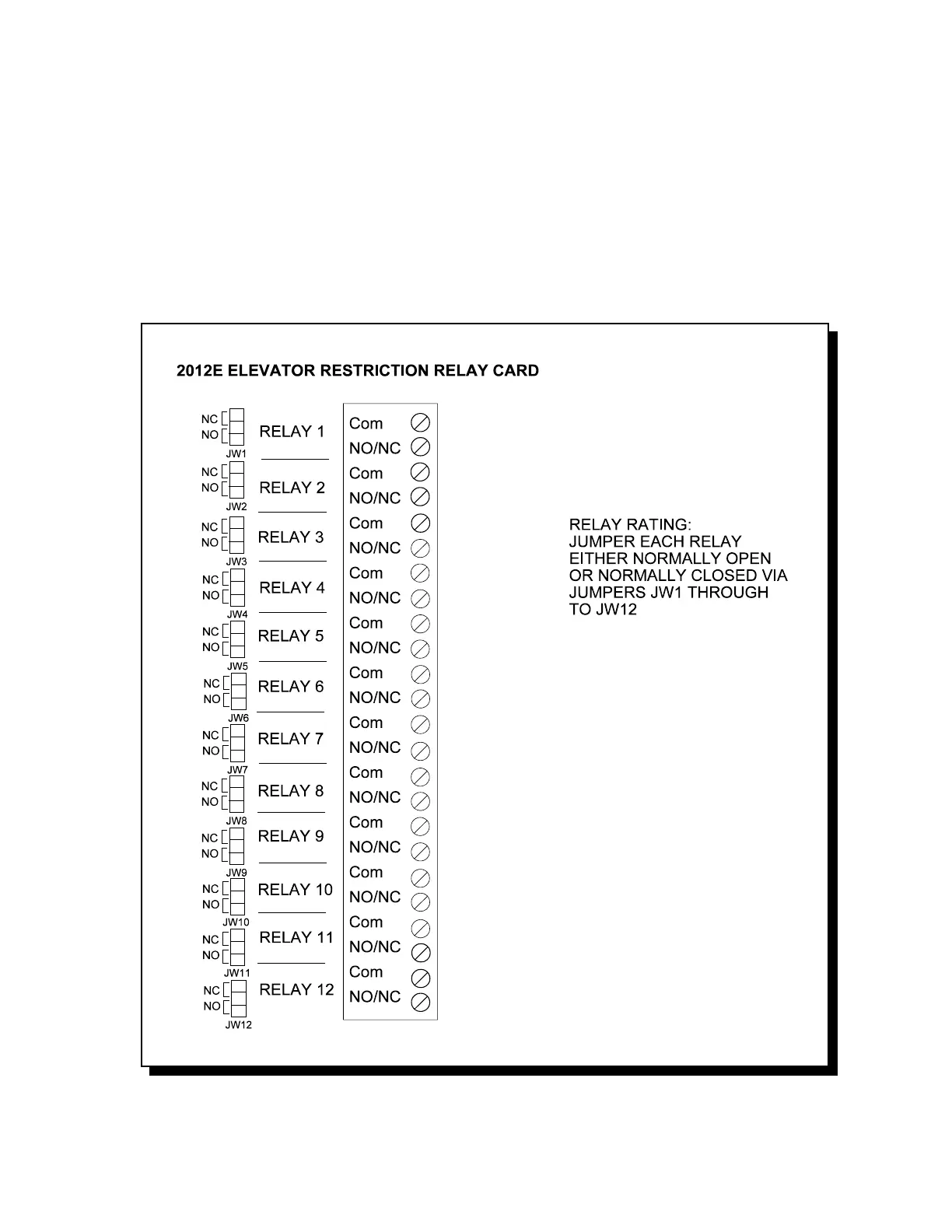

The 2012E Elevator Restriction Relay Boards plug into the Backplane portion of the 2008E Elevator Restriction
Unit. They number from 1 to 8 starting from the bottom slot and moving towards the top. Each has 12 Form “A” or
“B” (Each is Jumper selectable as Normally Closed or Normally Open) Relay contacts rated at 28 VDC, 0.5
ampere. There may be a total of 96 Elevator Restriction Relays in each 2008E Unit.
JW1-12 Jumpers for selecting Normally Open or Normally Closed Relay operation.
I1-12 LED’s indicating when each Relay is active.
RLY1-12 Screw Terminal Contacts for each Relay.
