Page 62
TH-102 HEATER INSTALLATION FOR TAS SLIM LINE
TAS 2000 SLIM LINE TELEPHONE ACCESS
The Mircom TAS 2000 Slim Line Telephone Access Unit is designed to provide a slimmer, sleeker version of the
standard TAS 2000. The system provides 2 line by 20 character LCD back-lit display, a built-in Postal Lock micro
switch and tamper proof screws. The TAS 2000 Slim Line may be used as an ADC or NSL (No Subscriber Line)
system (via DIP switch 7 on the main controller board) which has all the same features as the TAS-2000 including
ring pattern selection, keyless code entry and an event log. The Mircom TAS 2000 is available as a scrolling
display.
This slim line version is wired in the same manner as the standard TAS 2000 Telephone Access system. Please
refer to the wiring sections of this manual. If the TAS 2000 Slim Line is selected as an NSL system it requires NSL
Relay Cabinets, relay cards, Elevator Cabinets ( if used) and transformers. The dimensions are different than the
standard TAS-2000 and the Thermostat Heater Kit is the TH-102. See below for mounting instructions and
installation of the thermostat.
Use th

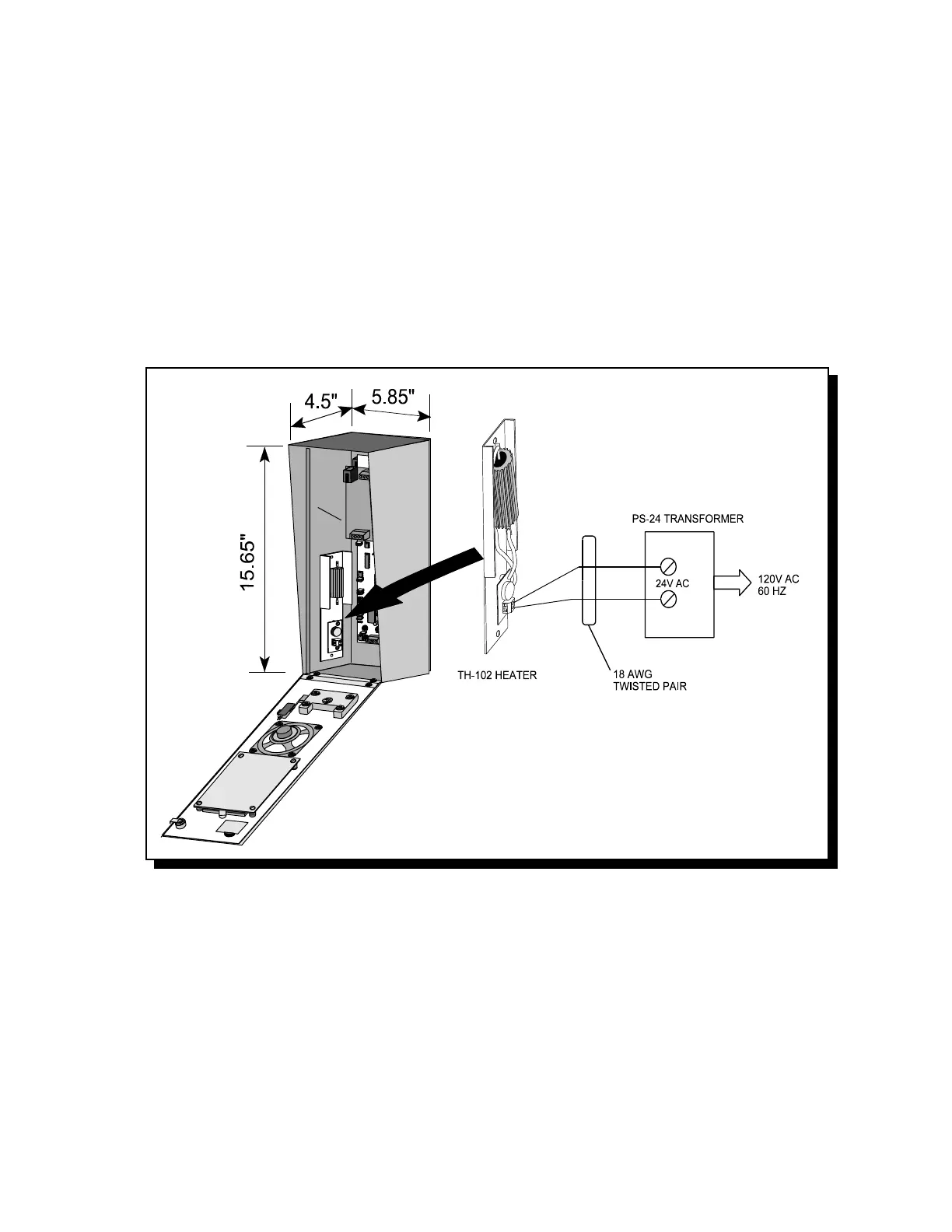

e two #6 Hex nuts to screw the TH-102 Heater into place, in the bottom right-hand corner as shown in Figure 2
above. The 24VAC is connected to the terminals on the TH-102 using 18 AWG twisted pair wire.
