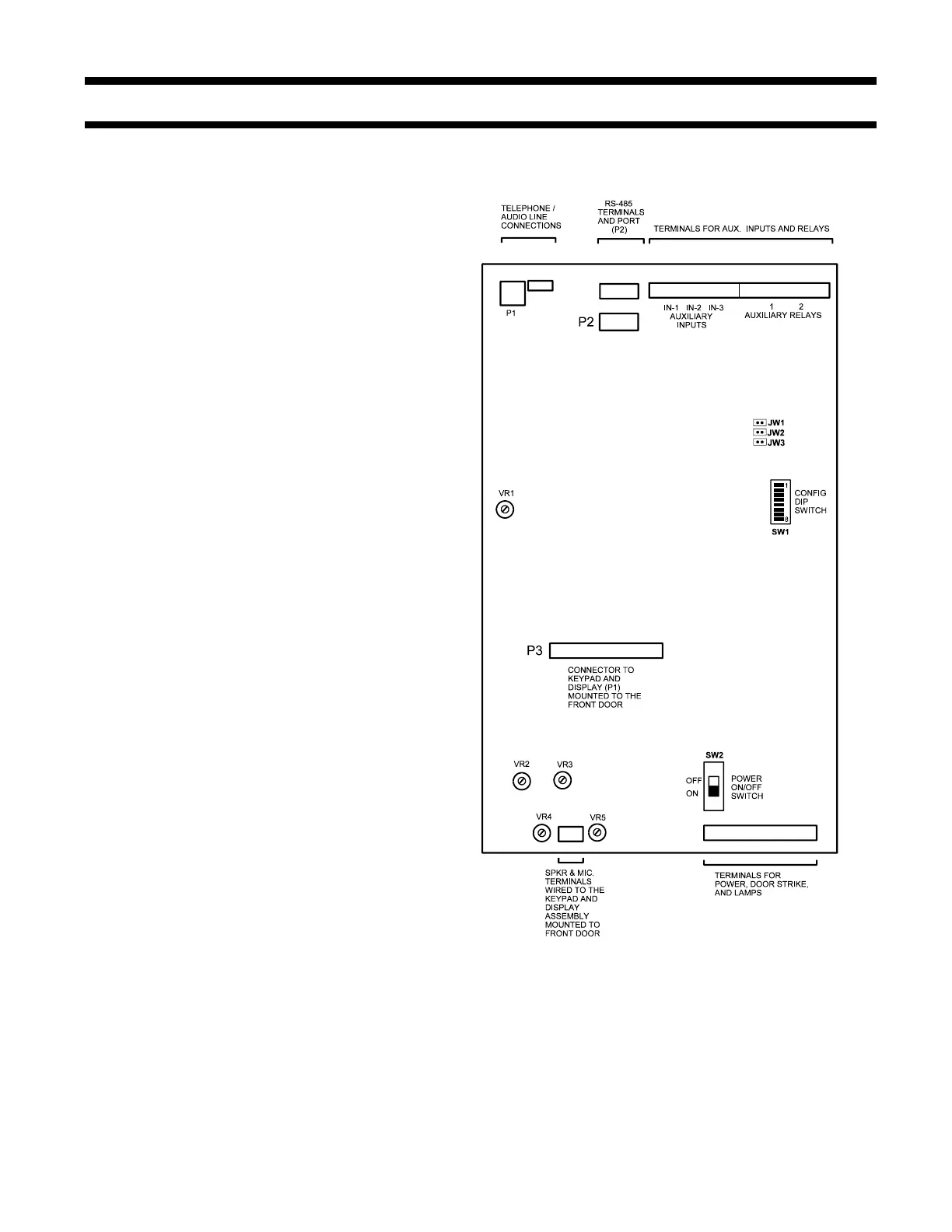

TAS 2000 SLIM LINE LOBBY UNIT AND MARK 1 WIRING
The TAS 2000 Slim Line and Mark 1 has both ribbon cable sockets and screw terminals.
P1 RJ-11 Modular Telephone Jack for
connection to the Telephone Line or
NSL Audio Line.
P2 RS-485 Port for connection to an RS-
485IMA Interface Module.
P3 Connection via ribbon cable to the
Lobby Unit Display & Keypad Board
mounted on the enclosure’s door.
VR1 Adjustment for Rotary Pulse
Sensitivity.
Because of the condition of
many of the old rotary “PULSE” type
telephones in use, there is great variation
with the signal they generate to release the
door. The control units come factory preset
to respond properly with these variations. If
trouble is encountered in releasing the door
when using a rotary phone, this control may
require adjustments as follows. To increase
sensitivity, turn the control clockwise 1/10 of
a revolution, then call the occupant whose
phone was previously not energizing the
door release. Check to see if the door is
released this time, if not again adjust by
1/10 of a revolution and continue to check
until the door is released. For touch tone
type phones, there is no adjustment
required.
VR2 Adjustment #2 for Speaker
Volume. Adjust clockwise for
maximum volume.
VR3 Adjustment #2 for Microphone
Volume Level. Adjust
counterclockwise for maximum
volume.
VR4 Adjustment #1 for Speaker
Feedback Control. This is normally
Factory Set and should not require
adjustment.
VR5 Adjustment #1 for Microphone
Feedback Control. This is normally
Factory Set and should not require adjustment.
SW1 DIP Switches to set the Unit’s ID (see Lobby Unit Configuration section in this manual).
SW2 Turns the Unit’s Power on and off for servicing, or to re-start the unit.
JW1 Factory Set (Shorted).
JW2 Factory Set (Open).
JW3 Factory Set (Open).
