32/1531-ANF 901 43 Uen B2 2016-04-01
Installation Guide
Base Station
8

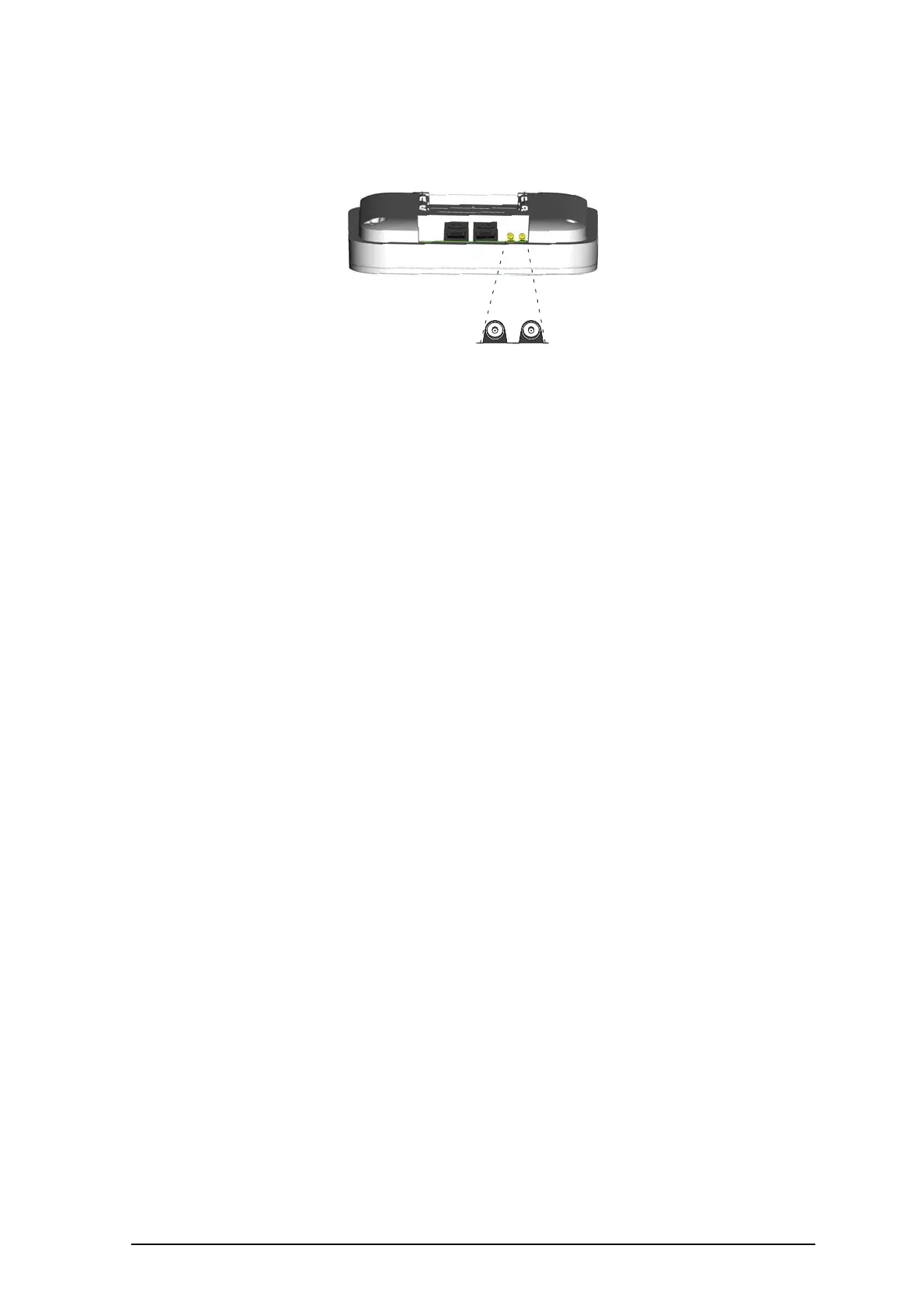

Figure 3. IPBS442 with MCX connectors for external antennas
Contents of the Box
The box in which the IPBS442 is packed contains:
• An IPBS442 with external antennas.
• A mounting bracket
• An antenna bracket
• Two antenna coaxial cables.
• Two antennas.
• Four screws with wall plugs
2.3 BS3X0
The following versions are available:
• BS330 with Internal antenna
• BS340 with External antennas
Back view while lying down
MCX connectors
