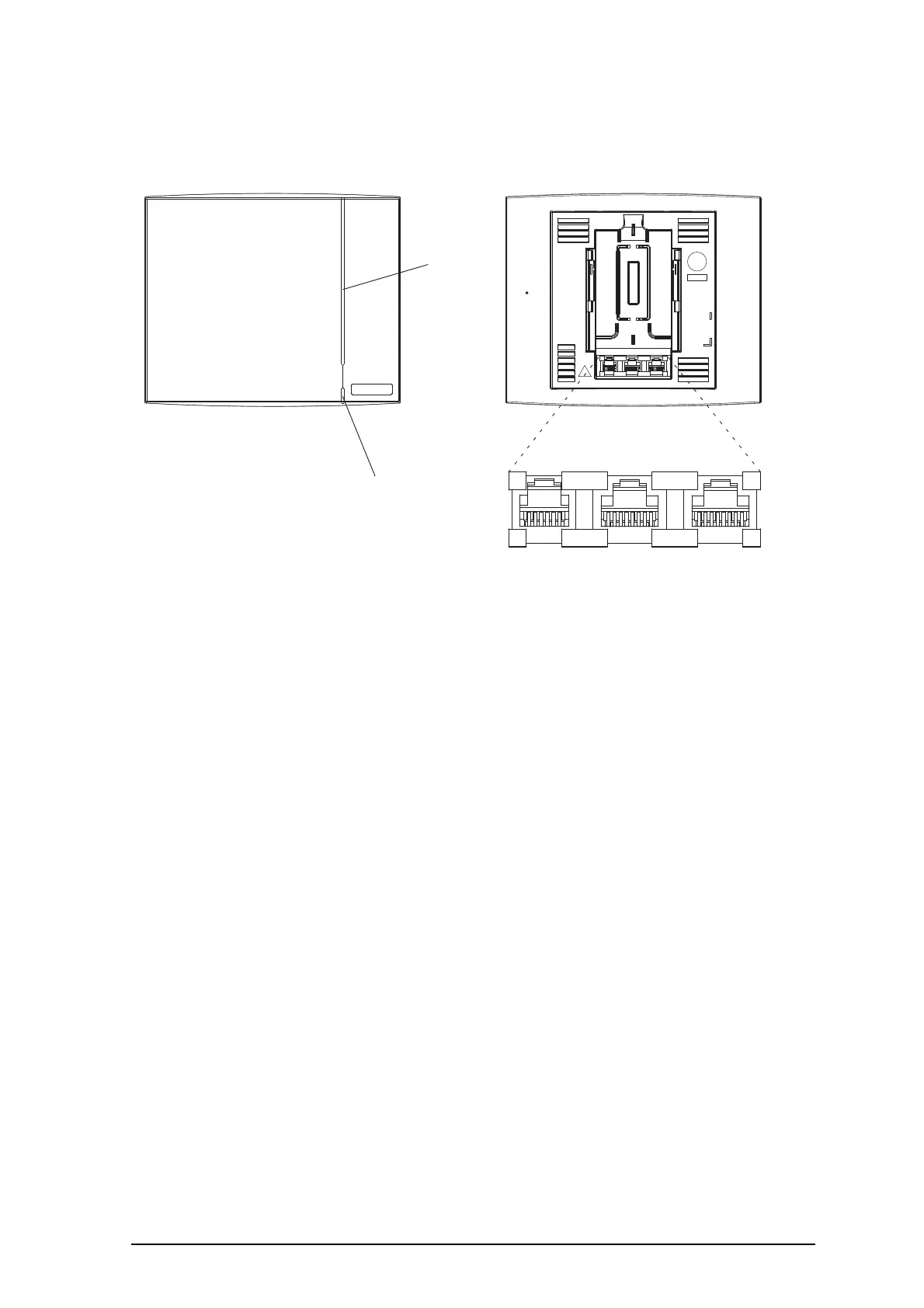

Figure 4. BS3x0 Overview
Contents of the Box
The box in which the base station is packed contains:
• A base station
• Two antennas (only base station with external antenna)
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The base station can be powered using the following methods:
• From the PBX via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
NOTE: For more information about power distribution, see 3.3 Power the Base Station
on page 22.
Software
The software in the BS3x0 can be updated by downloading new software without
disconnecting the equipment. The new software is stored in flash memory. For
information on how to update the software in the BS3x0, see the applicable Installation
and Operation Manual for the BS3x0.
Test
(RJ12)
Data/Power
(RJ45)
Data/Power
(RJ45)
Front view Back view
LED1
LED2
007
