32/1531-ANF 901 43 Uen B2 2016-04-01
Installation Guide
Base Station
11
2.4.1 BS3X2 WITH INTERNAL ANTENNA

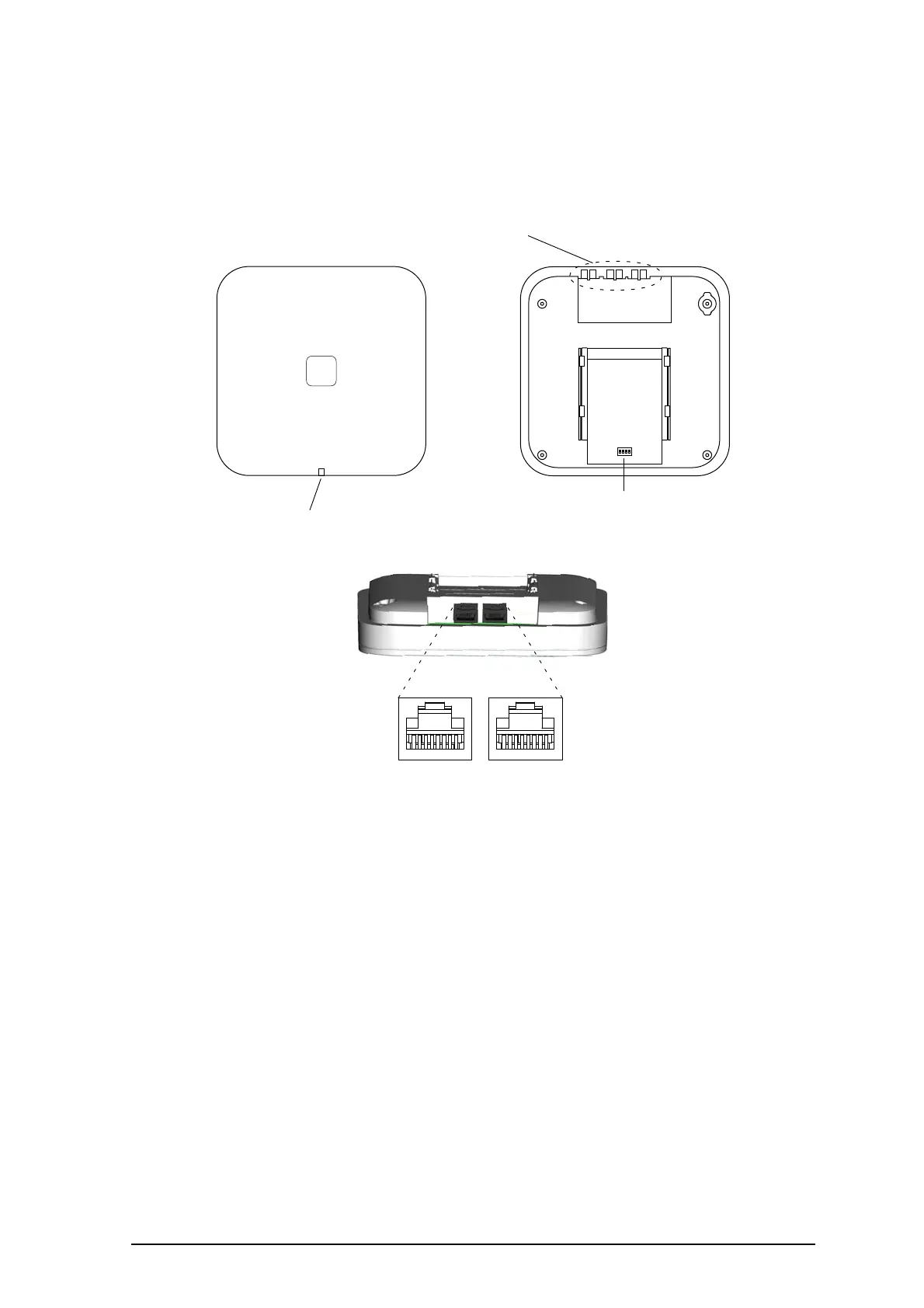

Figure 5. BS3x2 Overview
Contents of the Box
The box in which the BS3x2 is packed contains:
• A BS3x2 with integrated antennas
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The BS3x2 can be powered using the following methods:
• From the PBX via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
NOTE: For more information about power distribution, see 3.3 Power the Base Station
on page 22.
Front view
LED
DECT
(RJ45)
Power Supply
(RJ45)
Back view while lying down
Used for cable ties
to provide strain
relief for cables
Back view
DIP switch
1
ON
234
