32/1531-ANF 901 43 Uen B2 2016-04-01
Installation Guide
Base Station
17

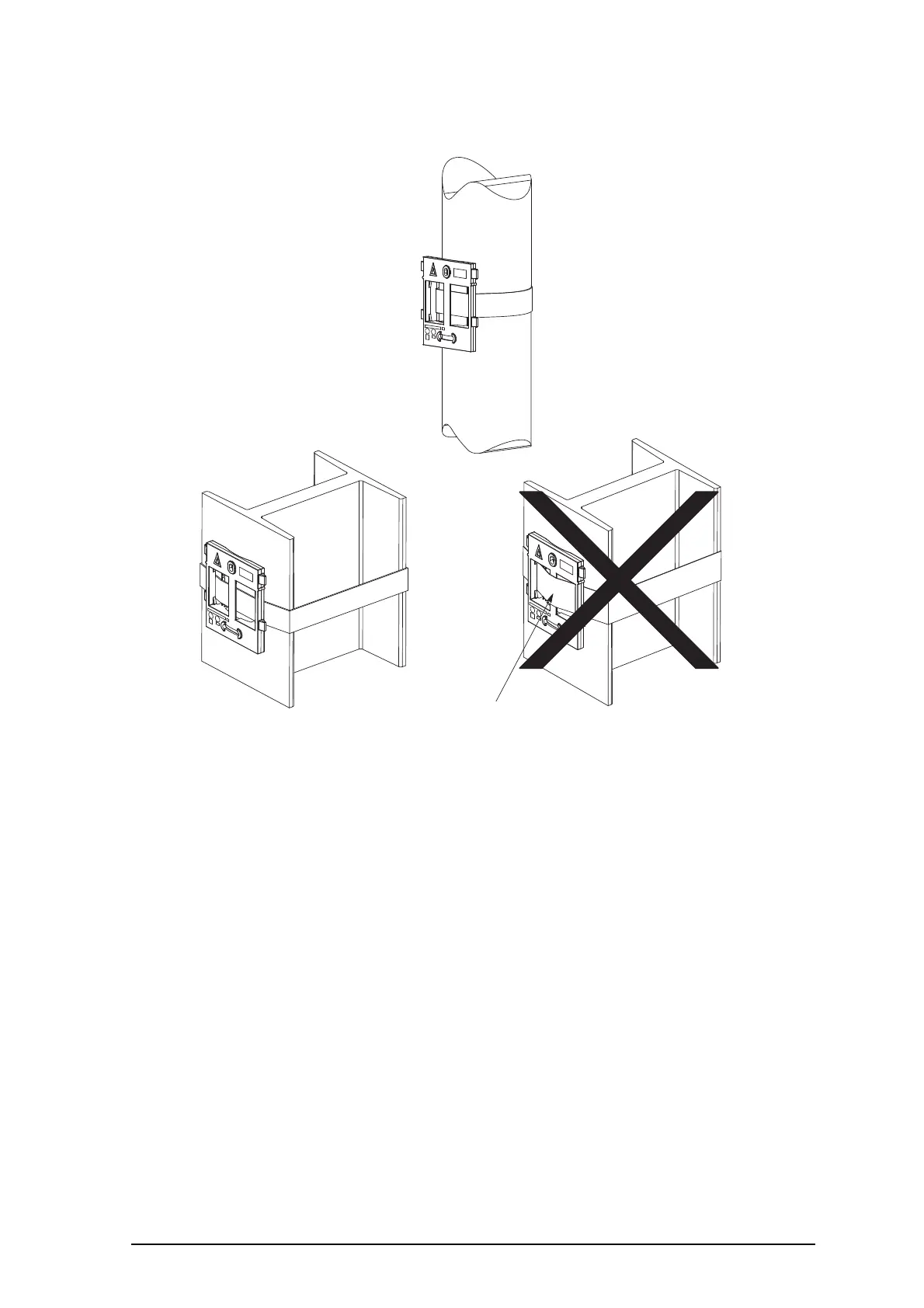

Figure 8. Fixing the mounting bracket to a pole or beam.
3.2.4 USE THE CABLE DUCTS FOR IPBS4X0
When the base station IPBS4x0 is mounted to the wall, cable ducts can be used to
route the wiring through.
1 Fix the cable duct to the wall in one of the positions shown in figure 9 on page
18.
